Mitsubishi LANCER EVOLUTION 2003 User Manual

FUNCTIONS AND CONTROL OF SWS ECUS
SIMPLIFIED WIRING SYSTEM (SWS)
54B-8
CENTRAL DOOR LOCKING SYSTEM
.

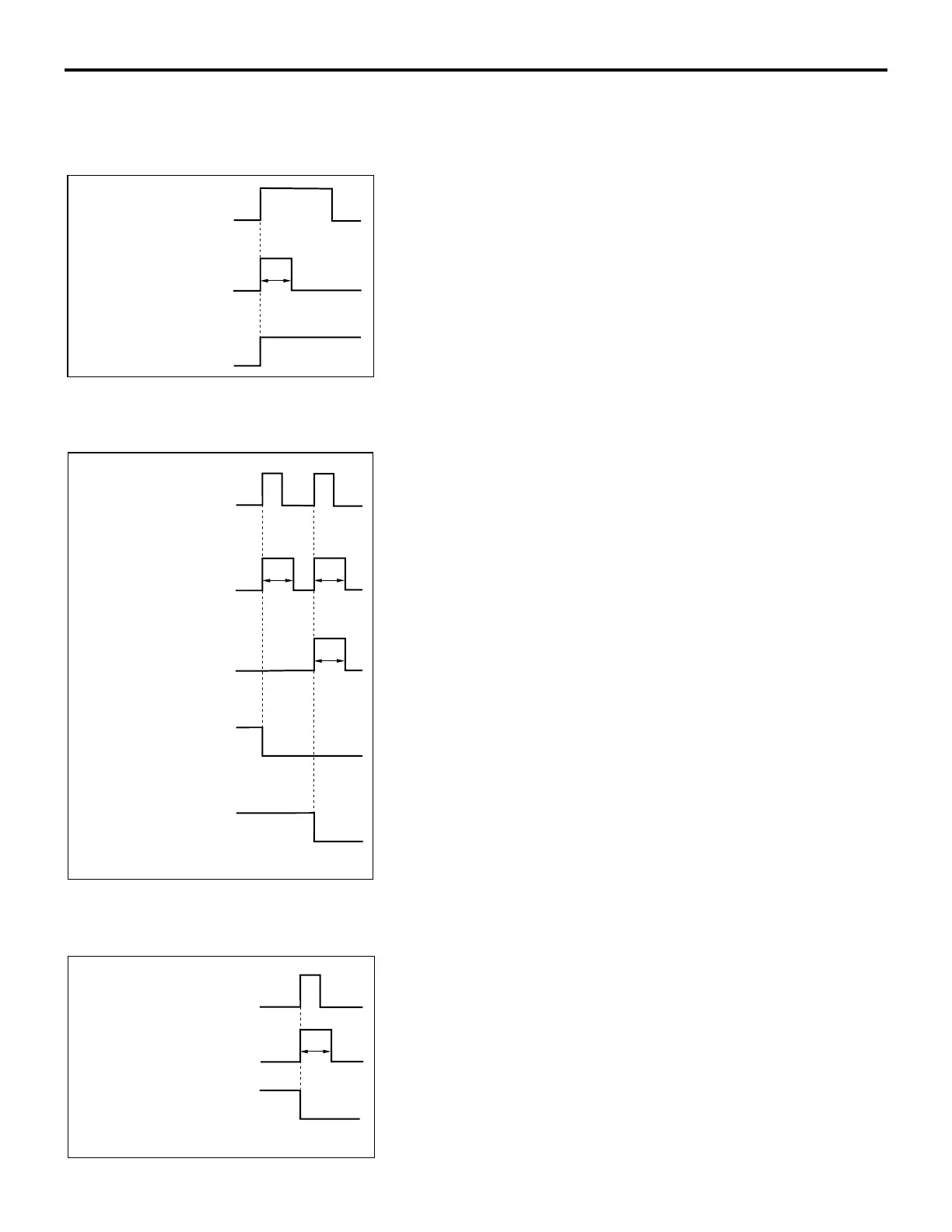

Door locking by operating the driver’s or front passenger’s
door lock key cylinder
When the key is inserted in the driver’s or front passenger’s
door lock key cylinder and turned counterclockwise to lock the
door, the ETACS-ECU operates its door lock relay and passes
a current through the door lock actuators of all doors and the
liftgate for 0.25 seconds to lock all doors and the liftgate.
.
Door unlocking by operating the driver’s door lock key
cylinder
When the ignition key is inserted in the driver’s door lock key
cylinder and turned clockwise to unlock the driver’s door, the
ETACS-ECU operates its door unlock relay and passes a cur-
rent through the door lock actuator of the driver’s door for 0.25
seconds to unlock only the driver’s door.
When the ignition key is turned clockwise, the ETACS-ECU
operates its door unlock relay and passes a current through the
door lock actuators of all doors for 0.25 seconds and to unlock
all doors.
.
Door unlocking by operating the front passenger’s door
lock key cylinder
When the ignition key is inserted in the front passenger’s door
lock key cylinder and turned clockwise to unlock the front pas-
senger’s door, the ETACS-ECU operates its door unlock relay
and passes a current through the door lock actuators of all
doors for 0.25 seconds to unlock all doors.
.
AC211441
ON
(LOCK)
OFF
DRIVER'S OR
PASSENGER'S
DOOR LOCK
CYLINDER SWITCH
OFF
ON
LOCK RELEY
OUTPUT
ALL DOOR'S
LOCK ACTUATOR
UNLOCK
LOCK
t
AB
t: 0.25 SECONDS
AC211442
ON
(UNLOCK)
OFF
DRIVER'S
DOOR LOCK
KEY CYLINDER
SWITCH
OFF
ON
DRIVER'S DOOR
UNLOCK RELAY
OUTPUT
tt
OFF
ON
t
OTHER DOOR
UNLOCK RELAY
OUTPUT
LOCK
UNLOCK
LOCK
UNLOCK
DRIVER'S DOOR
LOCK ACTUATOR
ALL DOOR'S
LOCK ACTUATOR
AB
t: 0.25 SECONDS
AC101461
AE
UNLOCK
LOCK
ON
OFF
FRONT PASSENGER'S
DOOR LOCK KEY
CYLINDER SWITCH
UNLOCK RELAY
OUTPUT
t: 0.25 SECONDS
t
DRIVER'S FRONT
PASSENGER'S
AND REAR DOOR
LOCK ACTUATOR
SWITCH
UNLOCK
LOCK
