FUNCTIONS AND CONTROL OF SWS ECUS
SIMPLIFIED WIRING SYSTEM (SWS)
54B-9

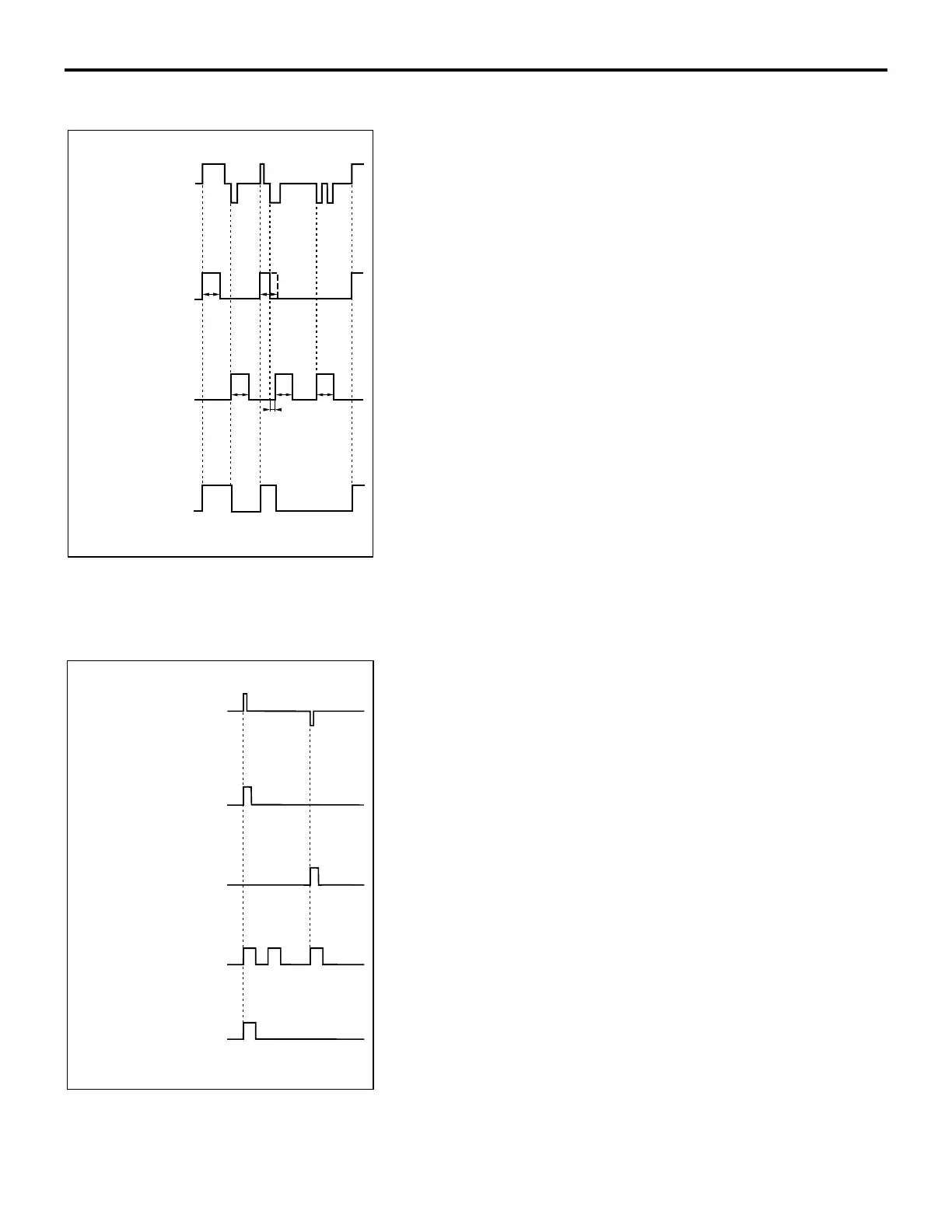

Door locking or unlocking by operating the driver’s or
front passenger’s door lock switch
When the door is locked by the driver’s or front passenger’s
door lock switch, the ETACS-ECU operates its door lock relay
and passes a current through the door lock actuators of all
doors for 0.25 seconds to lock all doors.
When the door is unlocked by the driver’s or front passenger's
door lock switch, the ETACS-ECU operates its door unlock
relay and passes a current through the door lock actuators of
all doors for 0.25 seconds to unlock all doors.
When the door is locked and unlocked by driver’s or front pas-
senger's door lock switch consecutively, the ETACS-ECU oper-
ates its door lock relay and passes a current through the door
lock actuators of all doors for 0.25 seconds to lock all doors.
Then, the ETACS-ECU operates its door unlock relay and
passes a current through the door lock actuators of all doors for
0.25 seconds to unlock all doors. Due to this, there may be a
time lag between the driver’s or front passenger's door lock
switch actuation and the time when all doors is unlocked.
KEYLESS ENTRY
.
Keyless entry hazard answerback and horn answerback
function
When the lock signal is input from the keyless entry transmitter
to the ETACS-ECU, the hazard warning light flashes twice and
the horn sounds once. When the unlock signal is input, hazard
warning light flashes once.
NOTE: Hazard answerback function can be disabled. (Refer to
P.54B-17.)
.
AC211440
ON
(LOCK)
ON
(UNLOCK)
DRIVER'S OR
FRONT
PASSENGER'S
DOOR LOCK
SWITCH
OFF
ON
OFF
LOCK RELAY
OUTPUT
tt
t
UNLOCK RELAY
OUTPUT
t
t
TIME LAG
ON
OFF
LOCK
UNLOCK
ALL DOOR'S
LOCK
ACTUATOR
AB
t: 0.25 SECONDS
AC211472
AB
LOCK
OFF
UNLOCK
ON
OFF
ON
OFF
ILLUMINATED
NOT
ILLUMINATED
KEYLESS ENTRY
TRANSMITTER
BUTTON
LOCK RELAY
OUTPUT
UNLOCK RELAY
OUTPUT
HAZARD
WARNING
LIGHT
FLASHING
STATE
HORN RELAY
OUTPUT
ON
OFF
