CLUTCH PEDAL POSITION SWITCH
The clutch pedal position switch is a contact type switch that is
mounted on the clutch pedal assembly to detect the pressing of
the clutch pedal.
When the driver presses the clutch pedal while shifting gears,
the contacts of the clutch pedal position switch close. This
causes the positive battery voltage applied by the engine con-
trol module (ECM) to be grounded to the body via the clutch
pedal assembly. Upon detecting this signal, the ECM makes
fuel injection volume corrections during a shift change, thus
reducing the discharge of hydrocarbon (HC) emissions associ-
ated with insufficient release of the accelerator pedal.

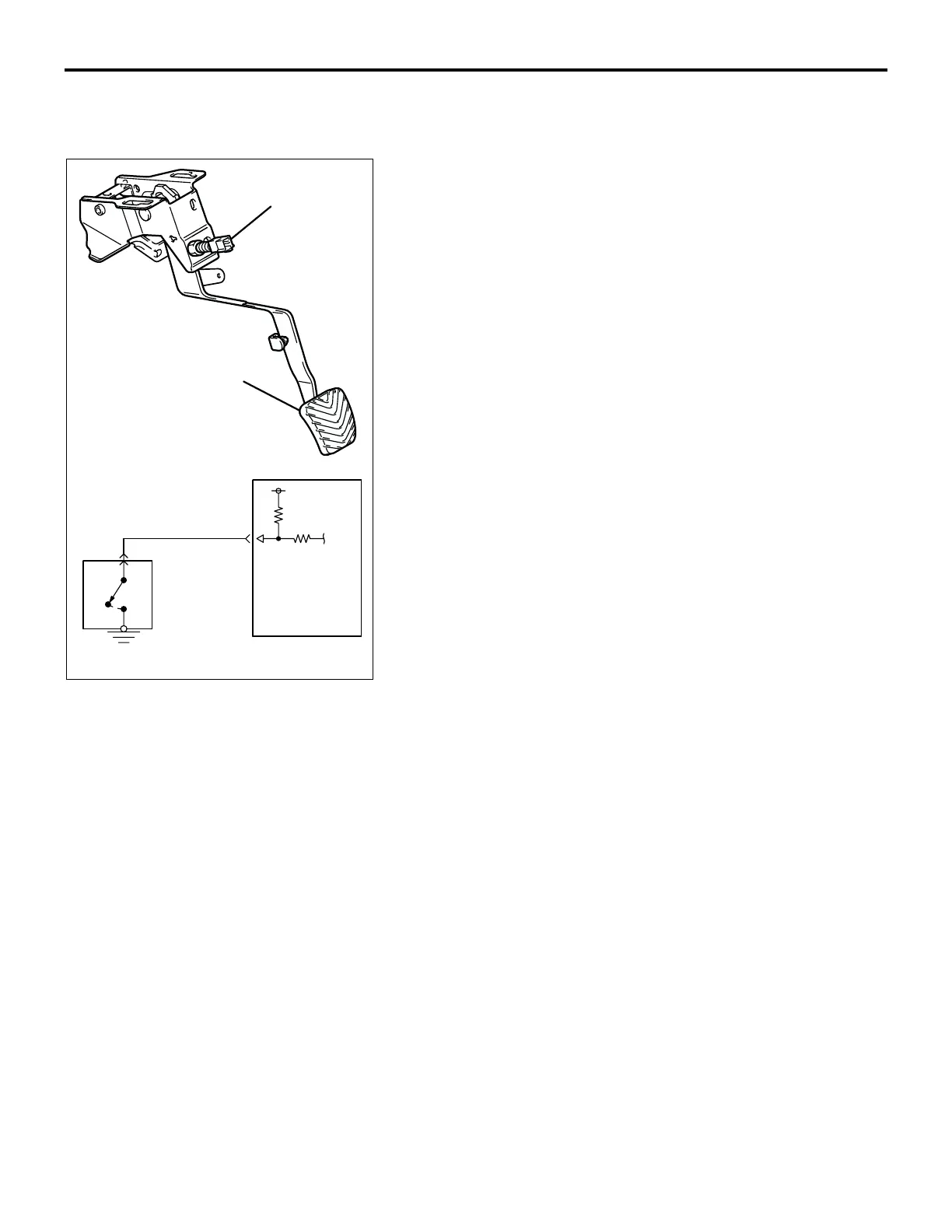

AK202519
CLUTCH PEDAL
POSITION SWITCH
CLUTCH PEDAL
ECM
B+
CLUTCH PEDAL
POSITION SWITCH
AB
