FUEL INJECTION CONTROL
MULTIPORT FUEL SYSTEM (MFI)
13A-5
FUEL INJECTION CONTROL
M2132003000130
The fuel injection control is basically the same as
that for the 2.0-liter turbocharged engine installed on
the previous ECLIPSE.
A clutch pedal position switch has been newly added
to provide fuel correction control during shift
changes.
When the driver presses the clutch pedal while shift-
ing gears, this control changes the fuel injection vol-
ume for a predetermined length of time after the
verification time has elapsed.
.

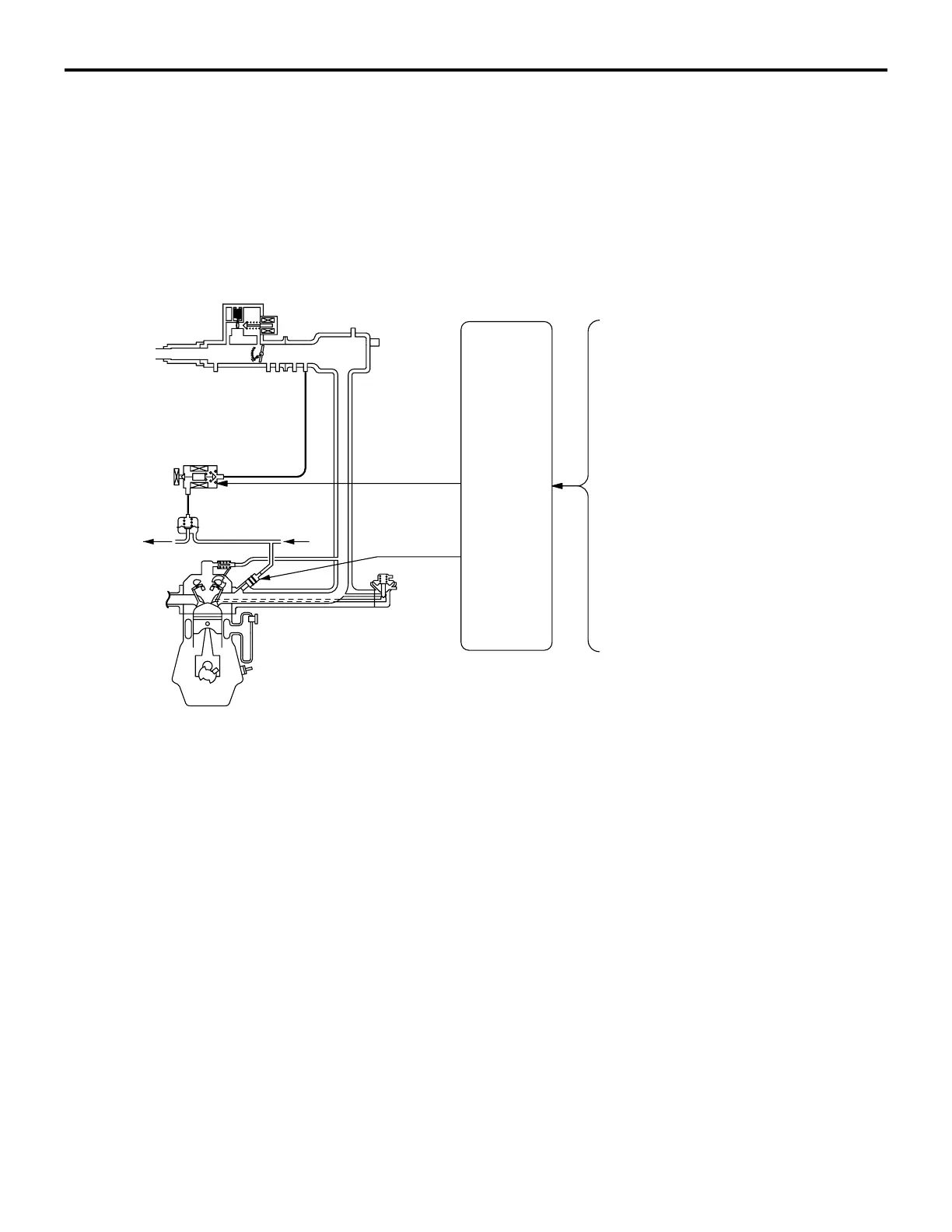

System Configuration Diagram
AK202520
TO FUEL
TANK
FROM
FUEL
PUMP
FUEL
PRESSURE
REGULATOR
INJECTOR
ECM
FUEL
PRESSURE
SOLENOID
VOLUME AIRFLOW SENSOR
BAROMETRIC PRESSURE SENSOR
INTAKE AIR TEMPERATURE SENSOR
ENGINE COOLANT TEMPERATURE
SENSOR
THROTTLE POSITION SENSOR
CRANKSHAFT POSITION SENSOR
CAMSHAFT POSITION SENSOR
KNOCK SENSOR
VEHICLE SPEED SENSOR
IGNITION SWITCH-ST
HEATED OXYGEN SENSOR
CLUTCH PEDAL POSITION SWITCH
AB
