IDLE AIR CONTROL (IAC)
MULTIPORT FUEL SYSTEM (MFI)
13A-6
IDLE AIR CONTROL (IAC)
M2132004000133
The idle air control is basically the same as that for
the 2.4L engine installed in the ECLIPSE.
.

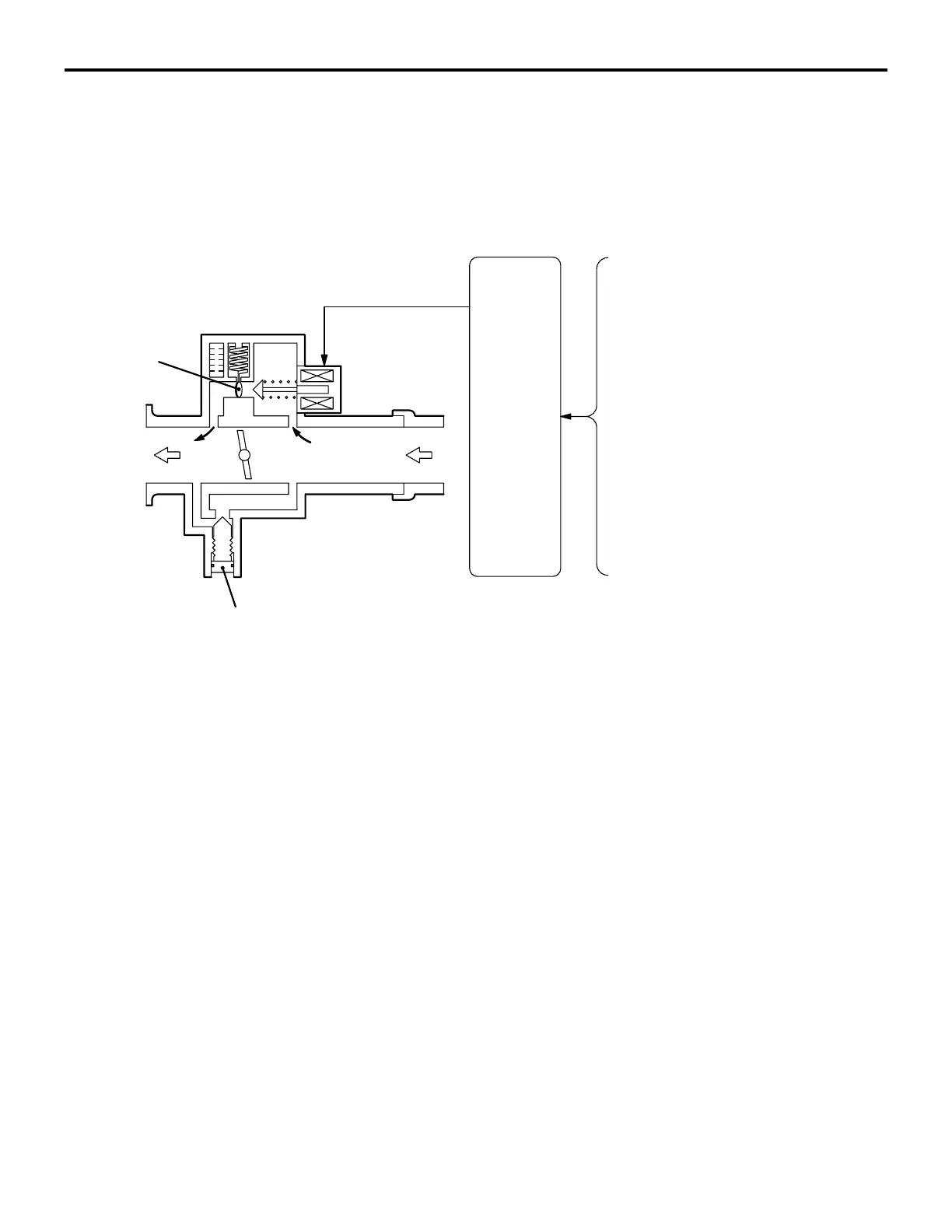

System Configuration Diagram
AK202521
IDEL AIR CONTROL
(IAC) MOTOR
(STEPPER MOTOR)
FROM AIR
CLEANER
TO INTAKE
MANIFOLD
BIMETAL
TYPE
LIMITER
SPEED ADJUSTING SCREW
ECM
VOLUME AIRFLOW SENSOR
BAROMETRIC PRESSURE SENSOR
INTAKE AIR TEMPERATURE SENSOR
ENGINE COOLANT TEMPERATURE
SENSOR
THROTTLE POSITION SENSOR
CRANKSHAFT POSITION SENSOR
A/C SWITCH
A/C LOAD SIGNAL
VEHICLE SPEED SENSOR
POWER STEERING PRESSURE SWITCH
GENERATOR FR TERMINAL
IGNITION SWITCH-IG
IGNITION SWITCH-ST
DIAGNOSTIC TEST MODE
AB
