GENERAL DESCRIPTION
FUEL SUPPLY
13B-2
GENERAL DESCRIPTION
M2134000100123
.
The fuel system consists of the following compo-
nents:
• Fuel injector
• Fuel rail
• Fuel pressure regulator
• Fuel tank assembly
• Evaporative emission canister
The fuel tank assembly consists of the following
• Fuel pump module
• Fuel level sensor (sub)
• Fuel tank leveling valve assembly
• Fuel tank rollover valve assembly
• Fuel tank differential pressure sensor
• Fuel tank temperature sensor
SPECIFICATIONS

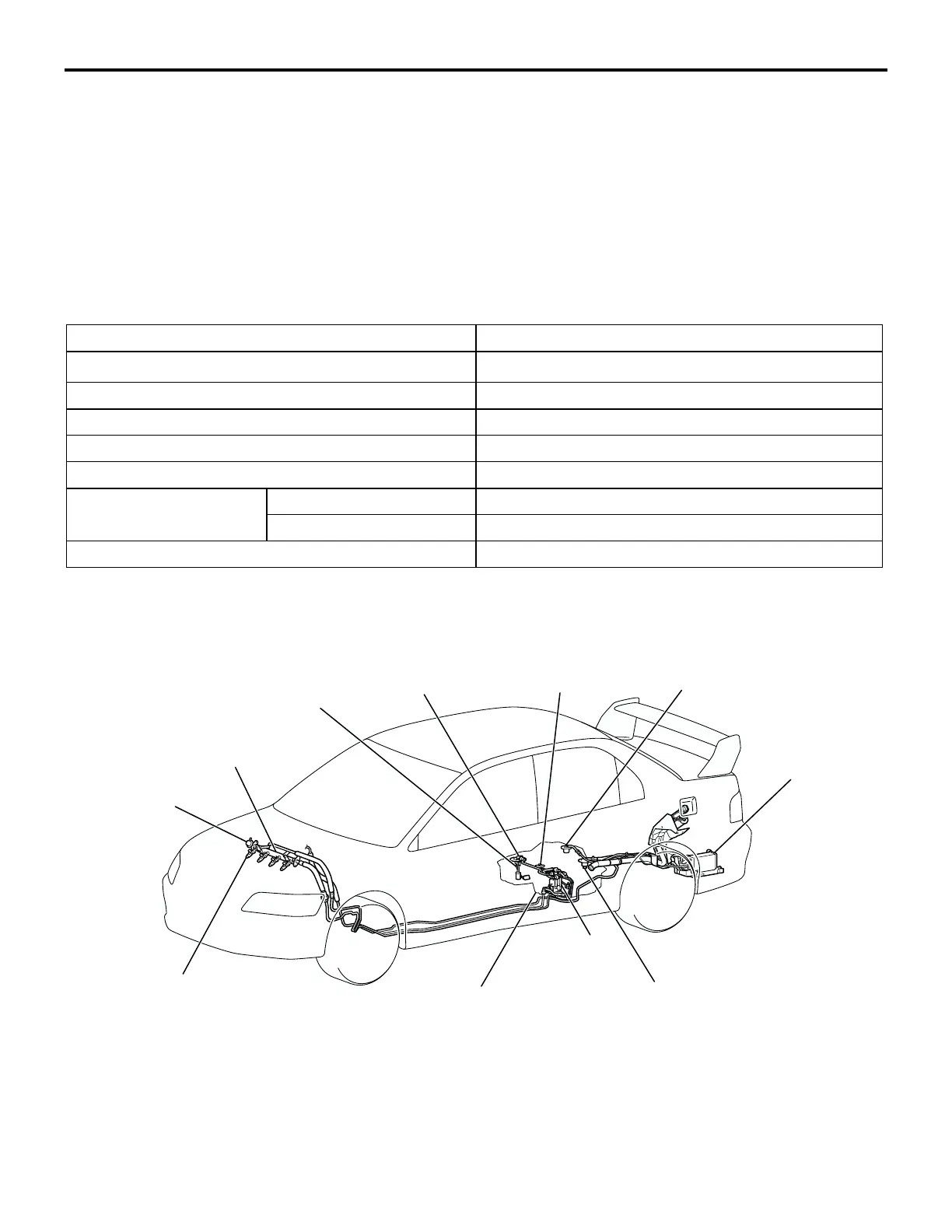

CONSTRUCTION DIAGRAM
ITEM SPECIFICATION
Fuel tank capacity dm
3
(gal)
53 (14.0)
Fuel pump type Electric
Fuel filter type Cartridge (incorporates fuel pump module)
Fuel return system Fuel pressure regulator return
Fuel pump pressure regulator pressure kPa (psi) 294 (42.6)
Fuel injector Type Electro-magnetic
Quantity 4
Evaporative emission control system Canister
AC210026
AB
FUEL RAIL
FUEL PRESSURE
REGULATOR
FUEL INJECTOR
FUEL TANK
TEMPERATURE
SENSOR
FUEL TANK LEVELING
VALVE ASSEMBLY
FUEL TANK
ASSEMBLY
FUEL PUMP
MODULE
FUEL TANK
DIFFERENTIAL
PRESSURE
SENSOR
FUEL TANK ROLLOVER
VALVE ASSEMBLY
EVAPORATIVE
EMISSION
CANISTER
FUEL LEVEL
SENSOR (SUB)
