FUEL TANK
FUEL SUPPLY
13B-3
FUEL TANK
M2134001000163
.
A steel fuel tank is located under the floor of the rear
seats to provide increased safety and increase the
amount of luggage compartment space.
The fuel tank assembly consists of the following
components:
• Fuel high-pressure hose
• Fuel tank
• Fuel pump module
• Fuel level sensor (sub)
• Fuel tank leveling valve assembly
• Fuel tank rollover valve assembly
• Fuel tank shut-off valve
• Fuel tank differential pressure sensor
• Fuel tank temperature sensor
.
The fuel pump module consists of the following com-
ponents:
• Fuel pump
• Fuel level sensor (main)
• Fuel filter
• Fuel feed assist pump

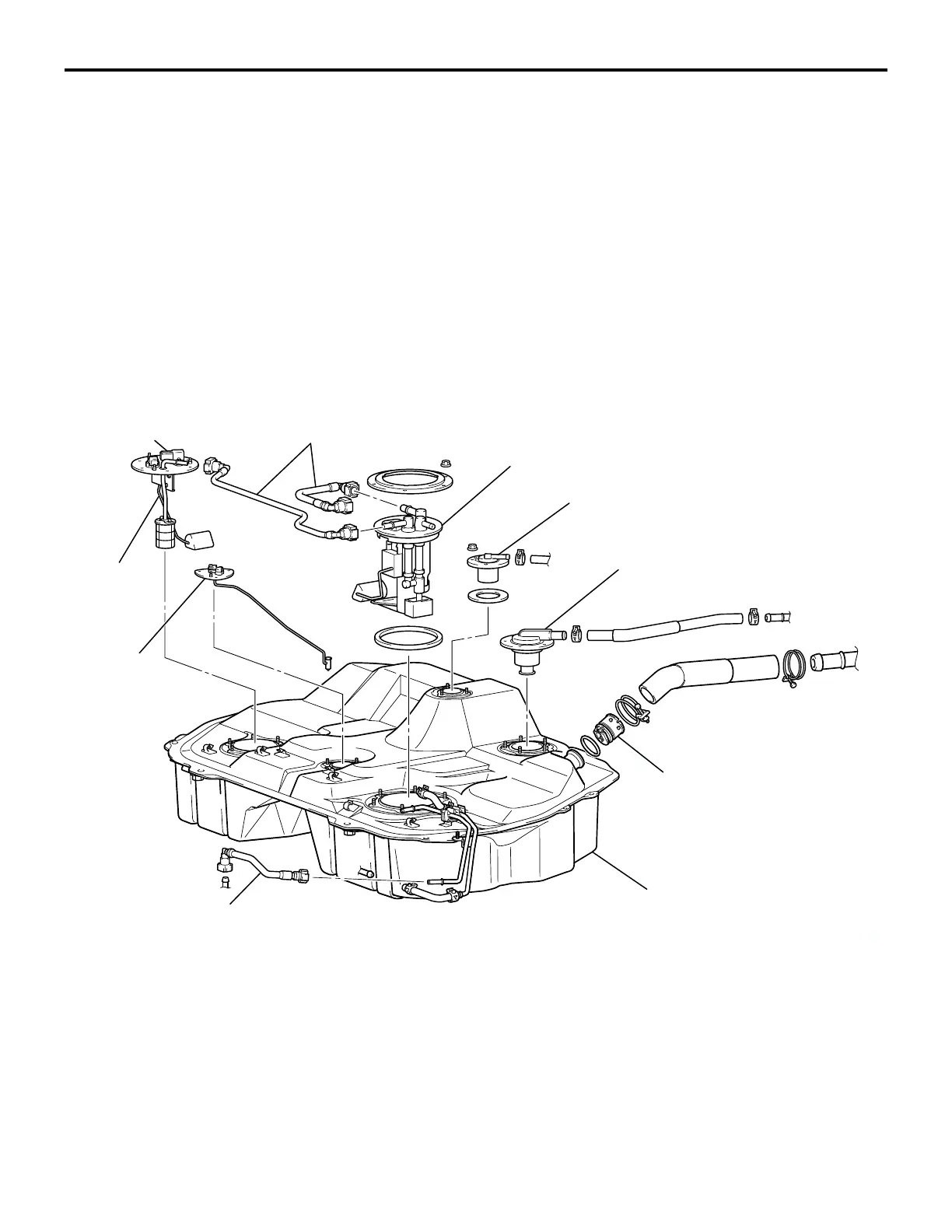

CONSTRUCTION DIAGRAM
AC210027
FUEL LEVEL
SENSOR
(SUB)
FUEL TANK DIFFERENTIAL
PRESSURE SENSOR
FUEL TANK
TEMPERATURE
SENSOR
FUEL PUMP MODULE
FUEL HIGH-PRESSURE HOSE
FUEL TANK LEVELLING
VALVE ASSEMBLY
FUEL TANK ROLLOVER
VALVE ASSEMBLY
FUEL TANK SHUT-OFF VALVE
AB
FUEL
HIGH-PRESSURE
HOSE
FUEL TANK
