ACCELERATOR SYSTEM
ENGINE AND EMISSION CONTROL
17-2
ACCELERATOR SYSTEM
GENERAL DESCRIPTION
M2170001000091
The accelerator system is a cable and suspended
pedal combination. Plastic bushing and rubber
damper have been attached to the end of the accel-
erator cable, to prevent noise and vibration when the
cable and accelerator pedal arm contact.

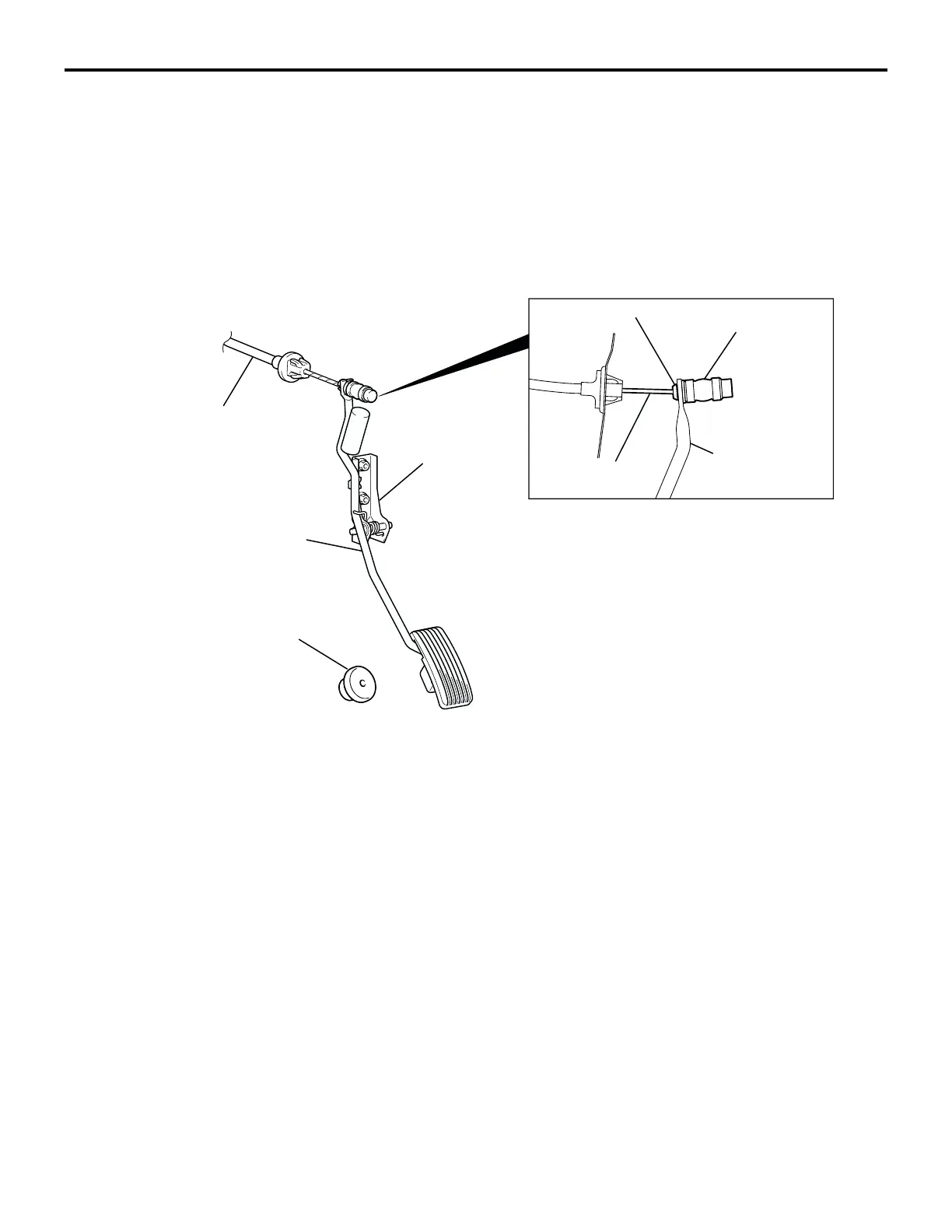

CONSTRUCTION DIAGRAM
AC210037
AC210048
AC210047
AB
PLASTIC BUSHING
ACCELERATOR CABLE
ACCELERATOR
PEDAL BRACKET
ACCELERATOR
PEDAL ARM
ACCELERATOR
CABLE
ACCELERATOR
PEDAL ARM
RUBBER DUMPER
ACCELERATOR PEDAL
ARM STOPPER
