EMISSION CONTROL
ENGINE AND EMISSION CONTROL
17-3
EMISSION CONTROL
GENERAL DESCRIPTION
M2171000100195
The emission control system is basically the same as
that for the 2.4L engine installed in the ECLIPSE.
The EGR system does not contain a vacuum control
valve. The evaporative emission system has a check
valve between the intake manifold and the evapora-
tive emission purge solenoid to prevent reverse flow
during boost.

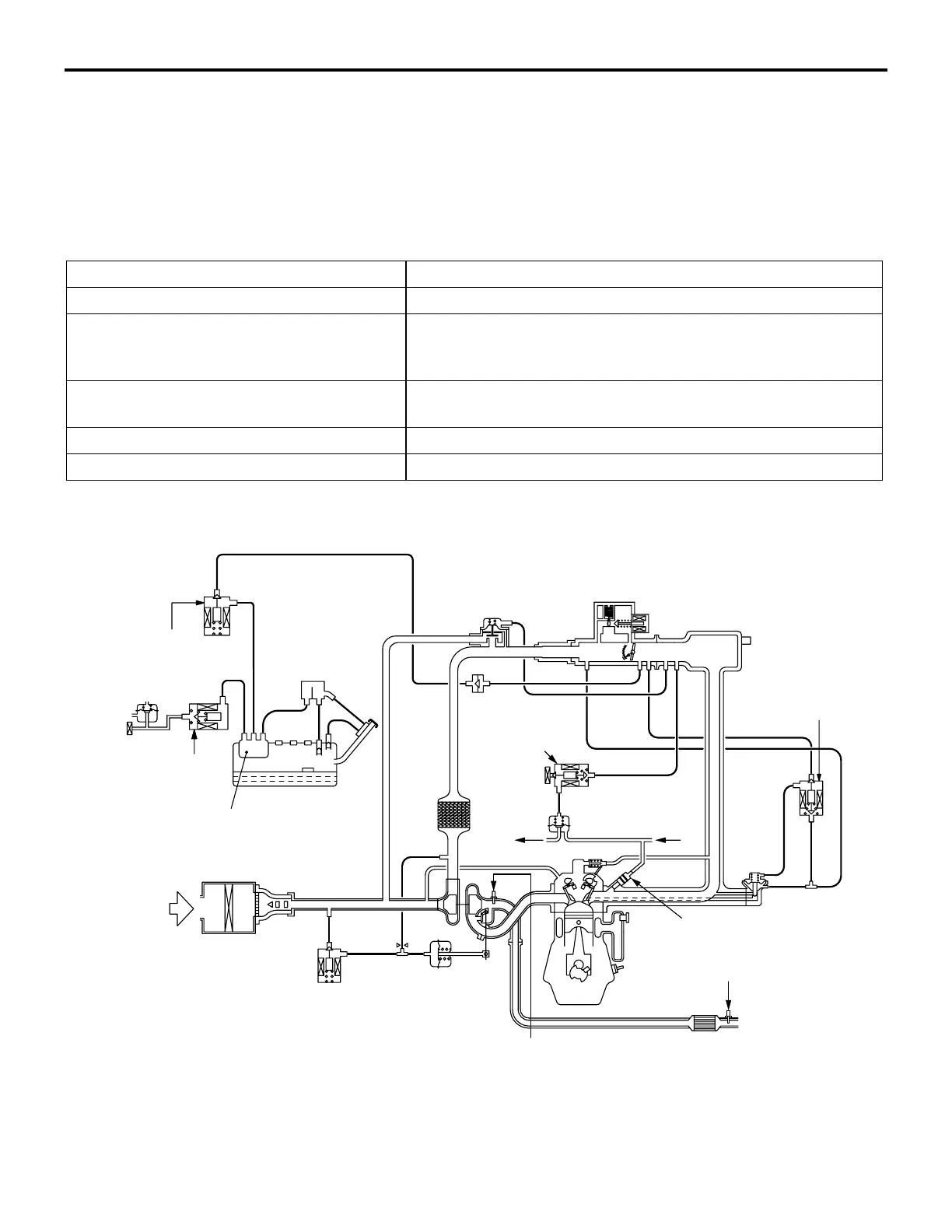

EMISSION CONTROL SYSTEM DIAGRAM
SYSTEM REMARK
Crankcase ventilation system Closed type
Evaporative emission system Electronic control type
• Evaporative emission purge solenoid: Duty type
• Evaporative emission ventilation solenoid: Duty type
Exhaust gas recirculation (EGR) system Electronic control type
• EGR vacuum regulator solenoid valve: Duty type
Air/fuel ratio closed loop control Heated oxygen sensor signal used
Catalytic converter Three-way catalyst
AK202523
EVAPORATIVE
EMISSION
CANISTER
FUEL TANK
EVAPORATIVE
EMISSION
VENTILATION
SOLENOID
EVAPORATIVE
EMISSION
PURGE
SOLENOID
HEATED OXYGEN
SENSOR (FRONT)
FROM
FUEL
PUMP
TO
FUEL
TANK
FUEL
PRESSURE
REGULATOR
EGR
SOLENOID
EGR
VALVE
AIR INLET
FUEL PRESSURE
SOLENOID
CHECK
VALVE
AB
HEATED OXYGEN
SENSOR (REAR)
INJECTOR
