GENERAL DESCRIPTION
SERVICE BRAKES
35A-2
GENERAL DESCRIPTION
M2350000100183
Top components such as Bremboä brakes, EBD and
sports ABS improve braking power and braking sta-
bility.
FEATURES
.
Improved braking performance
1. A 8+9-inch tandem vacuum booster is utilized to
provide high braking force with a small pedal
depression force.
2. Bremboä 17-inch 4-pot front ventilated disc
brakes and Bremboä 16-inch 2-pot rear venti-
lated disc brakes are adopted to provide stable
braking force and improved braking feel.
.
Improved stability
1. Sports ABS (4-wheel anti-lock braking system) is
used to prevent slipping caused by the vehicle
wheels locking up in order to maintain an appro-
priate braking distance, and also to maintain a
stable vehicle posture and steering performance.
2. Adoption of an electronic brake-force distribution
(EBD) makes it possible to maintain the maxi-
mum amount of braking force even when the
vehicle's load is unevenly distributed.
3. Front- and rear-wheel X-type brake line layout is
used.
4. Ventilated discs improve anti-fading performance.
.
Improved serviceability
1. A diagnosis function has been adopted for the
ABS system in order to make inspection easier.
2. An outer disc method separated hub and rotor is
featured to make removal and installation easier.
3. The master cylinder reservoir tank cap is colored
white to make identification easier.
4. The ABS-ECU and hydraulic unit are integrated
to make them more compact and light weight.

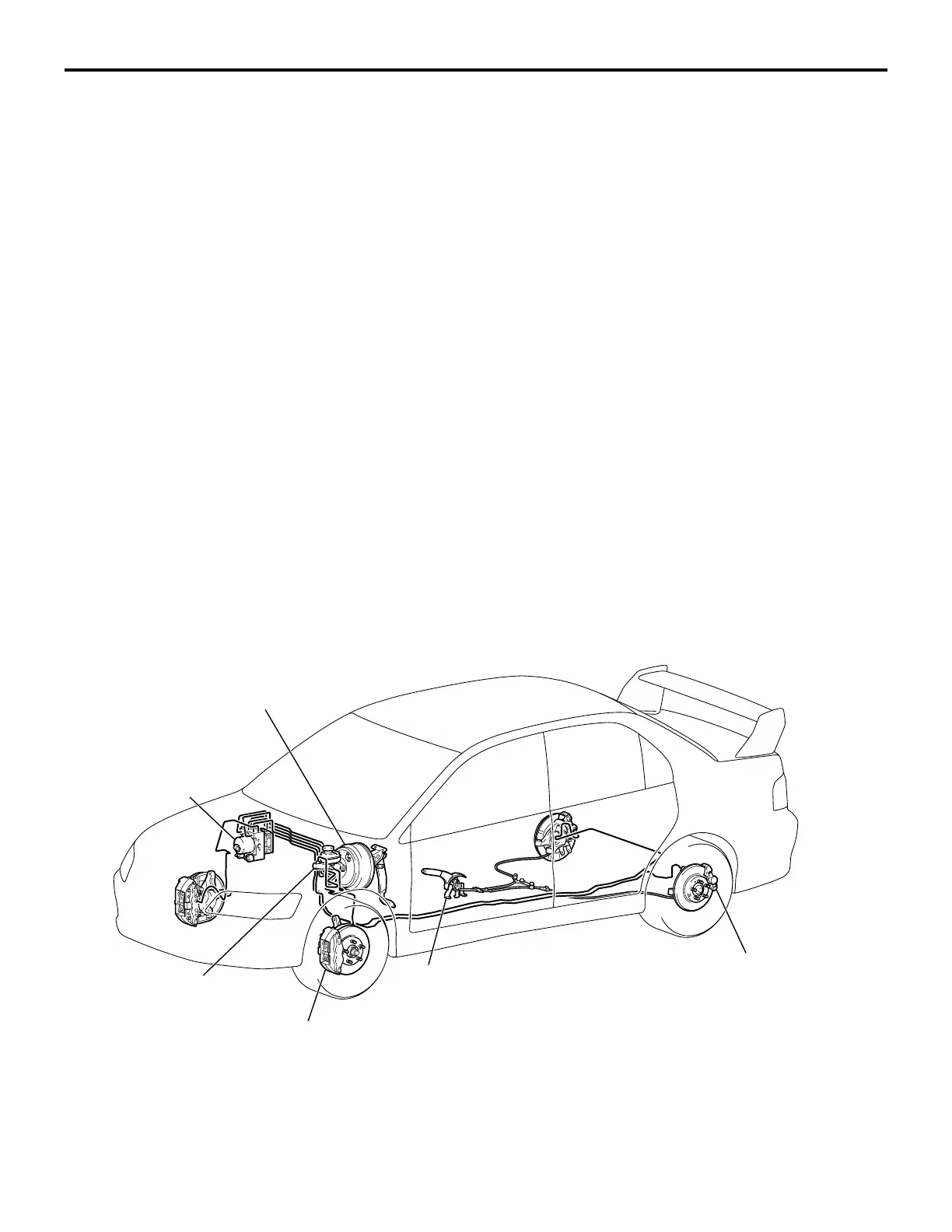

CONSTRUCTION DIAGRAM
AC211387
10064AU
BRAKE BOOSTER
ASSEMBLY
BRAKE MODULATOR
HYDRAULIC UNIT
(INTEGRATED WITH
THE ABS-ECU)
BRAKE MASTER
CYLINDER ASSEMBLY
FRONT DISC BRAKE
PARKING BRAKE
LEVER ASSEMBLY
REAR DISC BRAKE
AB
