GENERAL DESCRIPTION
FOUR-WHEEL ANTI-LOCK BRAKE SYSTEM (4ABS)
35B-4

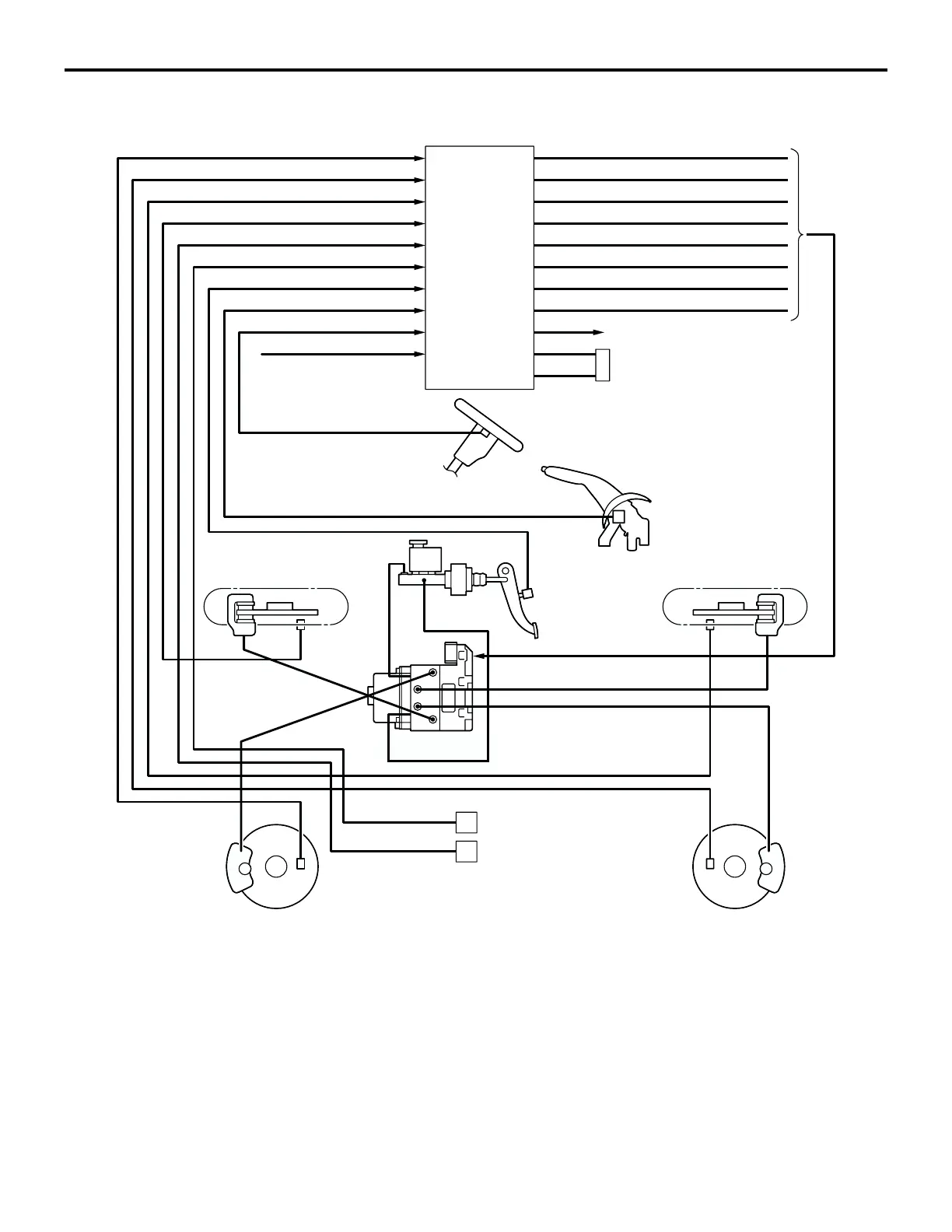

SYSTEM CONFIGURATION DIAGRAM
10066AU
AC211547
AB
ABS SENSOR (FL)
FR SOLENOID VALVE (OUT)
FR SOLENOID VALVE (IN)
FL SOLENOID VALVE (OUT)
FL SOLENOID VALVE (IN)
RR SOLENOID VALVE (OUT)
RR SOLENOID VALVE (IN)
RL SOLENOID VALVE (OUT)
RL SOLENOID VALVE (IN)
STOPLIGHT SWITCH
ECU POWER SUPPLY
ABS-ECU
ABS WARNING LIGHT
DATA LINK CONNECTOR
ABS SENSOR (RL)
ABS SENSOR (RR)
ABS SENSOR (FR)
STOPLIGHT
SWITCH
REAR-RIGHT
WHEEL (RR)
ABS SENSOR
FRONT-RIGHT
WHEEL (FR)
ABS
SENSOR
FRONT-LEFT
WHEEL (FL)
REAR-LEFT
WHEEL (RL)
ABS SENSOR
LATERAL G-SENSOR
LONGITUDINAL G-SENSOR
ABS SENSOR
PARKING
BRAKE
SWITCH
STEERING ANGULAR
VELOCITY SENSOR
LATERAL G-SENSOR
LONGITUDINAL G-SENSOR
PARKING BRAKE SWITCH
STEERING ANGULAR VELOCITY SENSOR
HYDRAULIC
UNIT
