2 - 20
2. LINEAR SCALES
(2) Connection example of 5m to 30m wiring length (This connection example assumes that the following
operating combination is satisfied.)
[Operating combination]
Used Wire Size Encoder (Scale) Model Encoder (Scale) Side Output Cable Specifications
AWG22 RGH26 Renishaw make output cable 0.5m

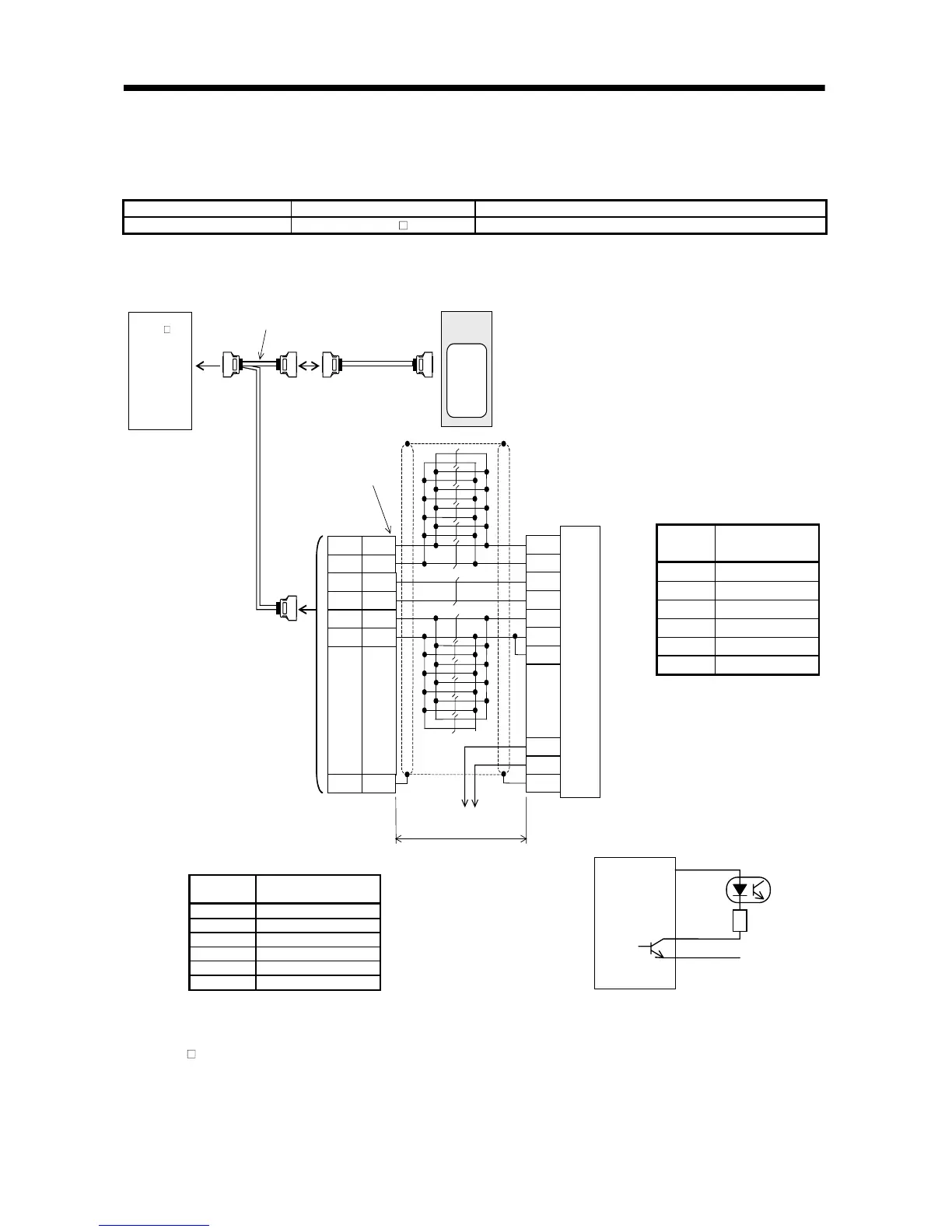

[Connection example]
The wiring length is up to 30m. Depending on the wiring length, however, the number of LG and P5
connections must be changed according to the following table.
10120-3000PE, 10320-52F0-008
(3M or equivalent)
To CN2
Servo motor
Encoder
19
12
P
Q
(Note 5)
Limit switch output (Note 4)
30m or less
Note 1. Do not connect the linear encoder (linear scale) that is not indicated in this specification.
2. Connect the shield wire to the plate (ground plate) in the connector securely.
3. For the wiring to the servo motor, refer to the standard connection examples in Chapter 3 and the Instruction Manual of the MR-
J2S-
B standard model.
4. A limit switch signal cannot be imported directly to the servo amplifier. When using a limit switch, use a photocoupler for
isolation as shown above. Contact the scale manufacturer for detailed specifications of the limit switch.
5. The encoder (scale) home position (reference mark) data is sent to the servo amplifier by serial communication.
6. Contact the scale manufacturer for detailed specifications such as the combinations, models, types, etc. of the linear encoder
(linear scale) side output cable and connector.
Wiring
Length
Number of LG and
P5 Connections
to 5m 2 parallel
to 10m 3 parallel
tob15m 4 parallel
to 20m 5 parallel
to 25m 6 parallel
to 30m 7 parallel
[Linear encoder side connector] (Note 6)
Applicable
Housing
D Sub 15 Pin Female
Equivalent
Inner 15
P5 7, 8
LG 2, 9
MR 10
MRR 1
SD Case
/P, /Q
5V
0V
Renishaw make
linear encoder (linear scale)
Photocoupler
isolation
To Next Page
