4 - 21
4. OPERATION AND FUNCTIONS
4.6.2 When full closed compatible MR Configurator (MRZJW3-SETUP151 S/W: E1 version or later) is used
Select "MR-J2S-B full closed" in the system setting of the MR Configurator.

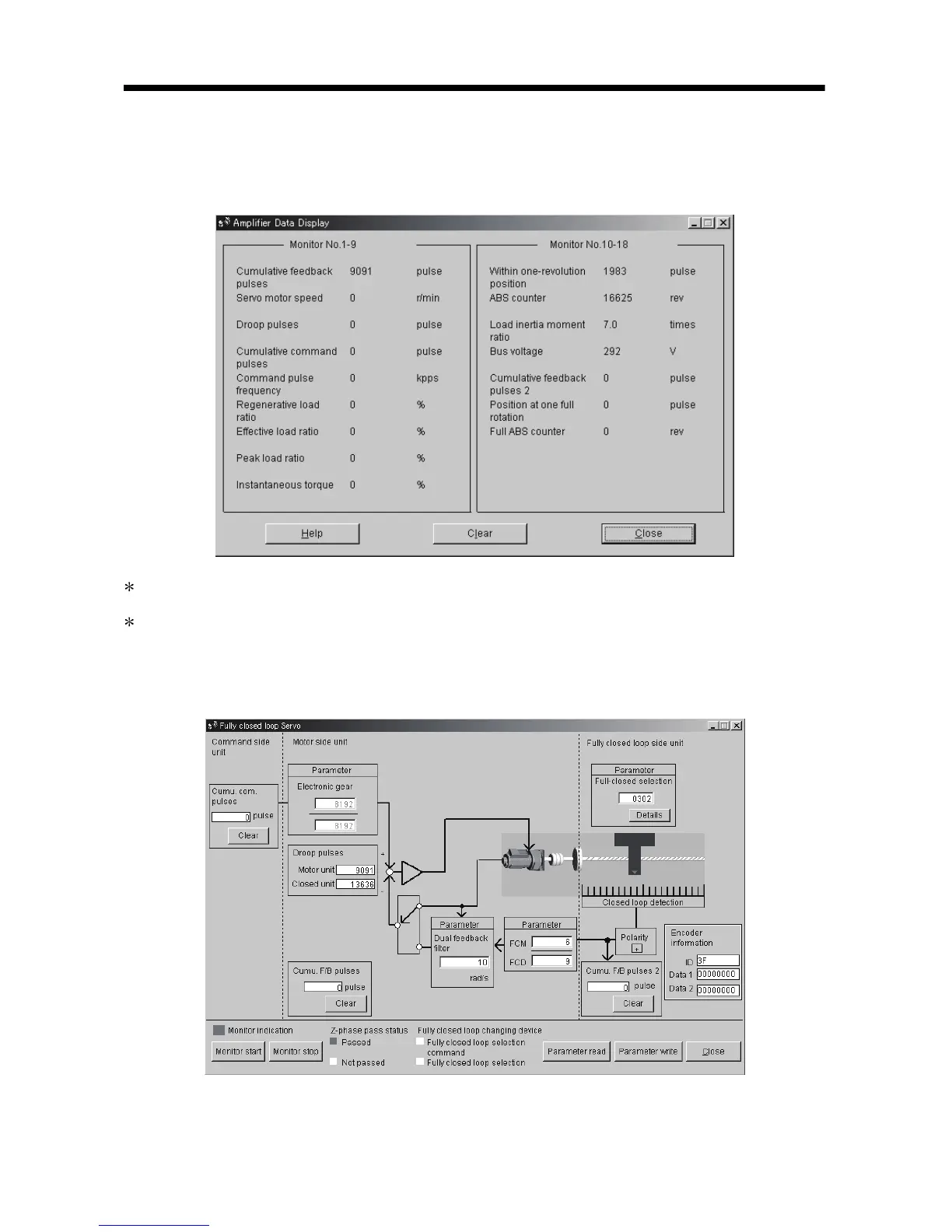

(1) Batch monitor screen
This screen is designed to display Cumulative feedback pulse 2, Within-full-one-revolution position
and Full ABS counter as formal names.
Refer to above Section 4.7.1 for the explanation of what are displayed.
(2) Diagnosis - full closed diagnosis screen
The position-related monitor indications and parameters on the full closed function are all displayed
on a single screen.
(The explanation is given on the next page.)
To Next Page
