4. STARTUP
4 - 36
(3)

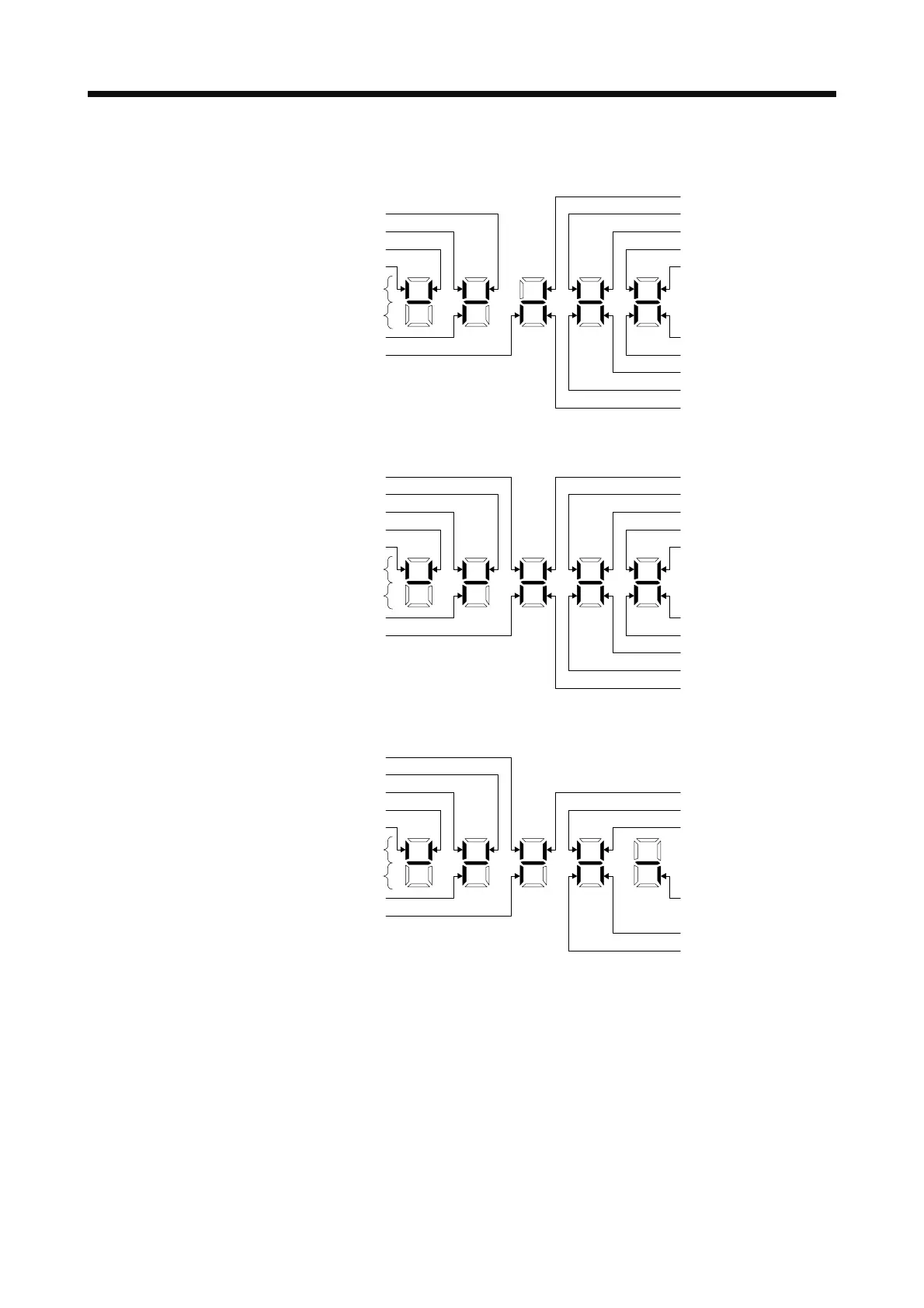

Display data at initial values
(a)
Position control mode
Light on: on
Light off: off
PC (CN1-17)
TL (CN1-18)
LOP (CN1-45)
EM2 (CN1-42)
Input signal
Output signals
OP (CN1-33)
ALM (CN1-48)
CR (CN1-41)
RES (CN1-19)
SON (CN1-15)
LSN (CN1-44)
LSP (CN1-43)
RD (CN1-49)
INP (CN1-24)
ZSP (CN1-23)
TLC (CN1-25)
INP (CN1-22)
(b)
Speed control mode
Light on: on
Light off: off
SP2 (CN1-16)
ST1 (CN1-17)
ST2 (CN1-18)
LOP (CN1-45)
EM2 (CN1-42)
Input signal
Output signals
OP (CN1-33)
ALM (CN1-48)
SP1 (CN1-41)
RES (CN1-19)
SON (CN1-15)
LSN (CN1-44)
LSP (CN1-43)
RD (CN1-49)
SA (CN1-24)
ZSP (CN1-23)
TLC (CN1-25)
SA (CN1-22)
(c)
Torque control mode
Light on: on
Light off: off
SP2 (CN1-16)
RS2 (CN1-17)
RS1 (CN1-18)
LOP (CN1-45)
EM2 (CN1-42)
Input signal
Output signals
OP (CN1-33)
ALM (CN1-48)
SP1 (CN1-41)
RES (CN1-19)
SON (CN1-15)
RD (CN1-49)
ZSP (CN1-23)
VLC (CN1-25)
