11. OPTIONS AND AUXILIARY EQUIPMENT
11 - 4

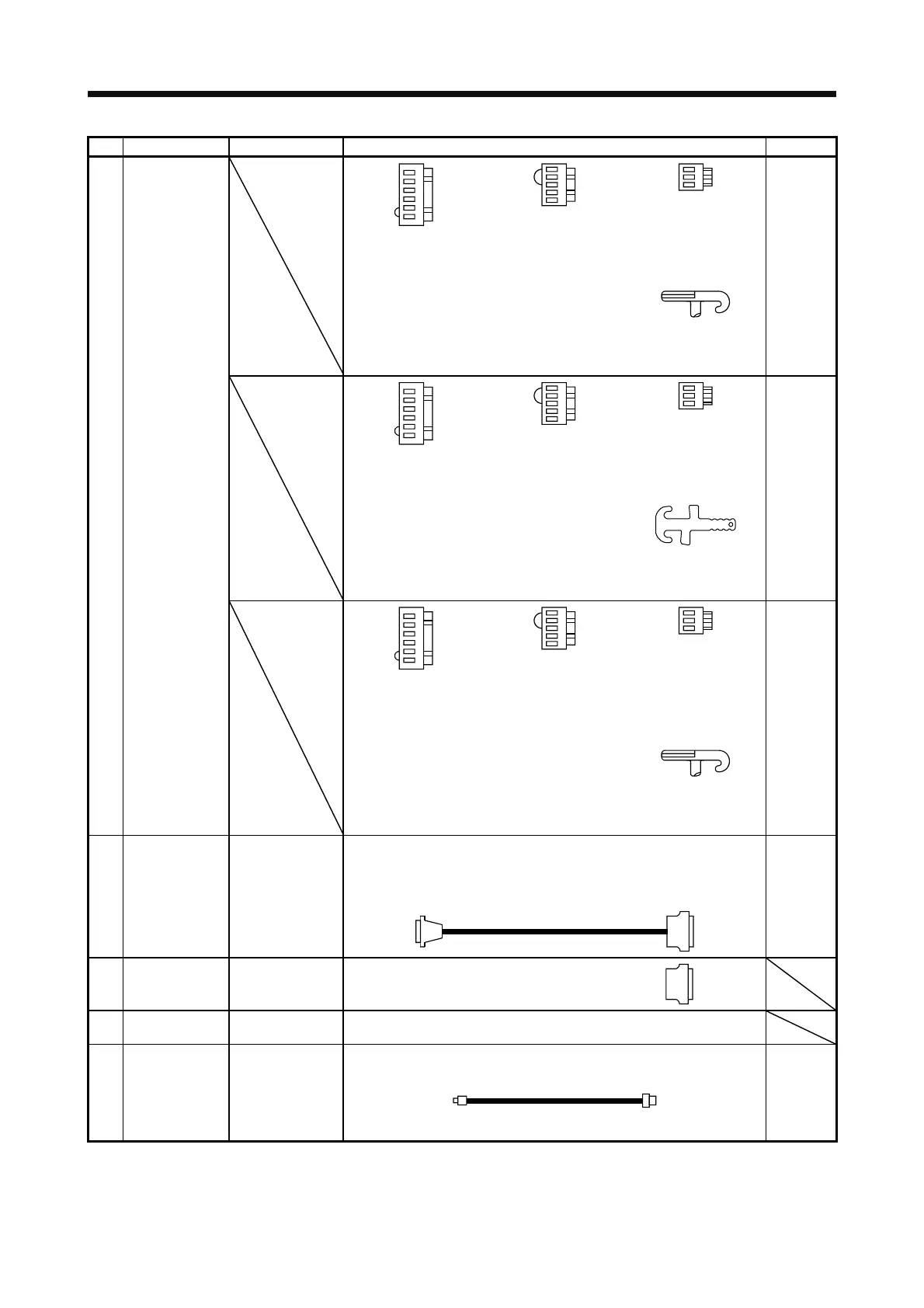

No. Name Model Description Application
1) Servo amplifier
power connector
set
CNP1 Connector:
06JFAT-SAXGDK-H7.5
(JST)
CNP2 Connector:
05JFAT-SAXGDK-H5.0
(JST)
CNP3 Connector:
03JFAT-SAXGDK-H7.5
(JST)
Applicable wire size: 0.8 mm
2
to 2.1 mm
2
(AWG 18 to 14)
Insulator OD: to 3.9 mm
Open tool
J-FAT-OT
(JST)
Supplied
with 200 V
class servo
amplifiers
of 1 kW or
less.
CNP1 Connector:
06JFAT-SAXGFK-XL
(JST)
CNP2 Connector:
05JFAT-SAXGDK-H5.0
(JST)
CNP3 Connector:
03JFAT-SAXGFK-XL
(JST)
CNP3
Applicable wire size:
1.25 mm
2
to 5.5 mm
2
(AWG 16 to 10)
Insulator OD: to 4.7 mm
CNP2
Applicable wire size:
0.8 mm
2
to 2.1 mm
2
(AWG 18 to 14)
Insulator OD: to 3.9 mm
Open tool
J-FAT-OT-EXL
(JST)
Supplied
with 200 V
class servo
amplifiers
of 2 kW
and 3.5
kW.
CNP1 connector:
06JFAT-SAXGDK-
HT10.5
(JST)
CNP2 connector:
05JFAT-SAXGDK-
HT7.5
(JST)
CNP3 connector:
03JFAT-SAXGDK-
HT10.5
(JST)
Applicable wire size: 1.25 mm
2
to 2.1 mm
2
(AWG 16 to 14)
Insulator OD: to 3.9 mm
Open tool
J-FAT-OT-XL
(JST)
Supplied
with 400 V
class servo
amplifiers
of 3.5 kW
or less.
2) Junction terminal
block cable
Junction terminal block connector
Connector: D7950-B500FL
(3M)
CN1 connector
Connector: 10150-6000EL
Shell kit: 10350-3210-000
(3M or equivalent)
MR-J2M-
CN1TBL_M
Cable length:
0.5 m, 1 m
(Refer to section
11.6.)
For
junction
terminal
block
connection
3) CN1 connector
set
MR-J3CN1 Connector: 10150-3000PE
Shell kit: 10350-52F0-008
(3M or equivalent)
4) Junction terminal
block
MR-TB50 Refer to section 11.6.
5) USB cable MR-J3USBCBL3M
Cable length: 3 m
CN5 connector
mini-B connector (5 pins)
Personal computer connector
A connector
For
connection
with PC-AT
compatible
personal
computer
To Next Page
