11. OPTIONS AND AUXILIARY EQUIPMENT
11 - 19

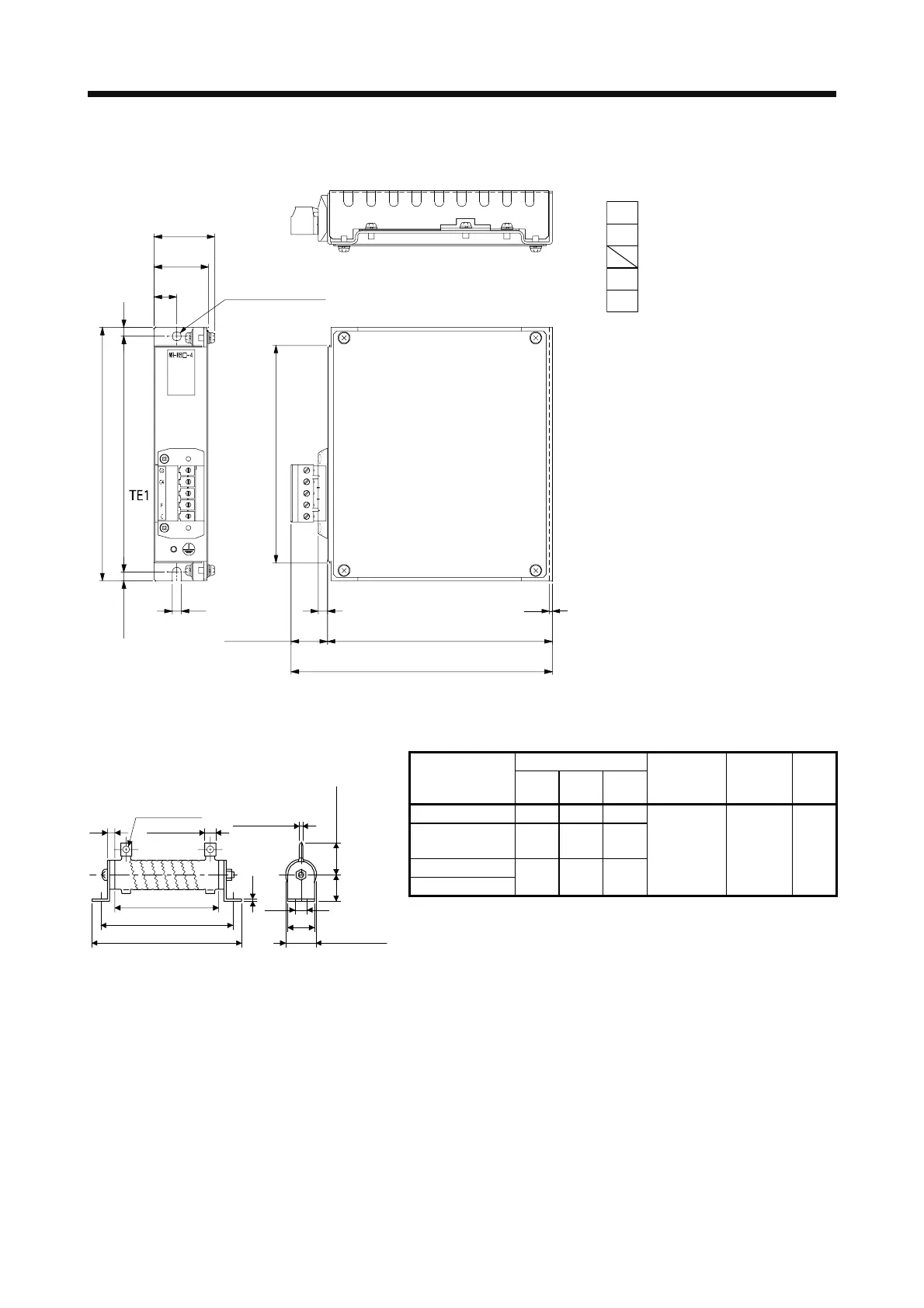

(6) MR-RB1H-4
[Unit: mm]
156 168 144
6
2
149
173
6
Approx. 6
Approx. 24
6
15
φ6 mounting hole
36
40
Terminal
P
C
G3
G4
Applicable wire size: AWG 24 to 10
Tightening torque: 0.5 to 0.6 [N•m]
Mounting screw
Screw size: M5
Tightening torque: 3.24 [N•m]
Mass: 1.1 [kg]
(7) GRZG400-0.8Ω/GRZG400-0.6Ω/GRZG400-0.5Ω/GRZG400-2.5Ω/GRZG400-2.0Ω
(standard accessories)
Variable dimensions
Regenerative
resistor
A C K
Mounting
screw size
Tightening
torque
[N•m]
Mass
[kg]
GRZG400-0.8Ω 10 5.5 39
GRZG400-0.6Ω
GRZG400-0.5Ω
16 8.2 46
GRZG400-2.5Ω
GRZG400-2.0Ω
10 5.5 39
M8 13.2 0.8
[Unit: mm]
Approx. K
1.6
Approx. φ47
9.5
40
411
385
10
Approx. φC
Approx. A
Approx. 2.4
40
Approx. 330
