11. OPTIONS AND AUXILIARY EQUIPMENT
11 - 39

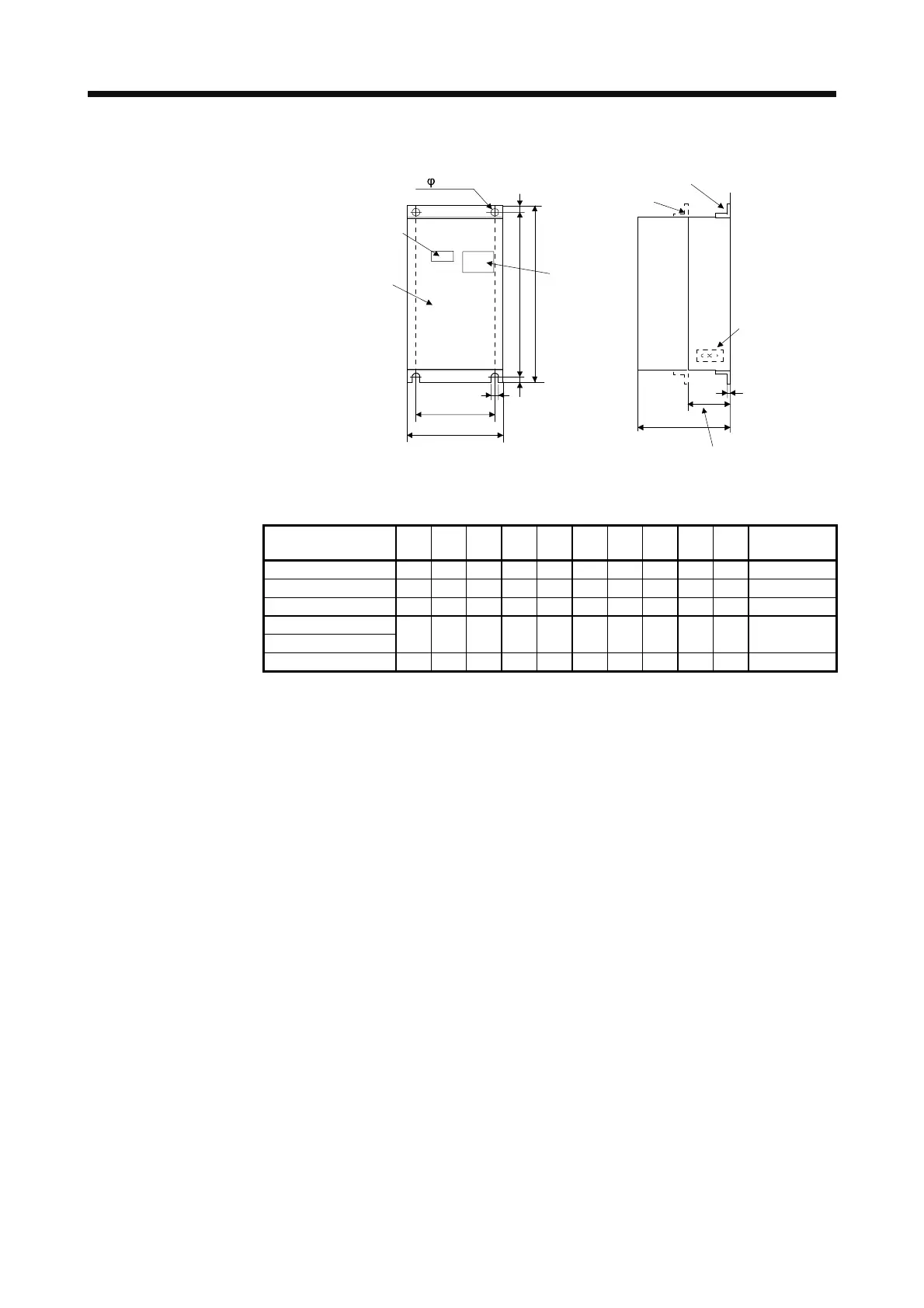

(3) Dimensions
Cooling fan
Mounting foot (removable)
Mounting foot
(movable)
D hole2-
B
BA
AA
A
Heat generation area outside
mounting dimension
C
F
K
D
EE E
Rating plate
Front cover
Display panel
window
[Unit: mm]
Power regeneration
converter
A AA B BA C D E EE K F
Approximate
mass [kg]
FR-RC-15K 270 200 450 432 195 10 10 8 3.2 87 19
FR-RC-30K 340 270 600 582 195 10 10 8 3.2 90 31
FR-RC-55K 480 410 700 670 250 12 15 15 3.2 135 55
FR-RC-H15K
FR-RC-H30K
340 270 600 582 195 10 10 8 3.2 90 31
FR-RC-H55K 480 410 700 670 250 12 15 15 3.2 135 55
To Next Page
