11. OPTIONS AND AUXILIARY EQUIPMENT
11 - 89

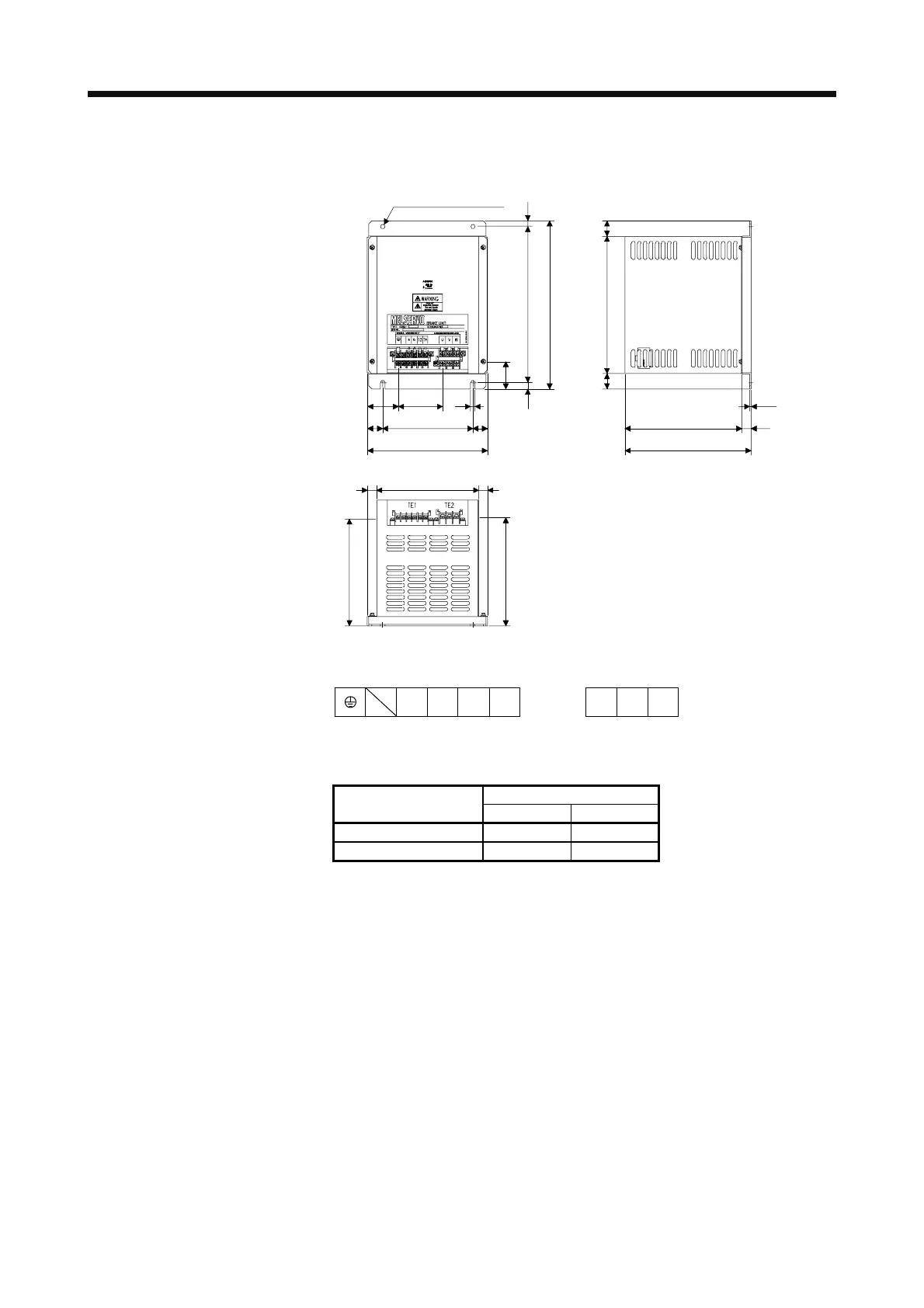

(b) DBU-11K-4/DBU-22K-4
[Unit: mm]
15
51
25
15
73.75 7
25150
10
200
170
178.5
179.5
15
260
280
43
10
2-φ7 mounting hole
195
228
2626
210
2.3
Mass: 6.7 [kg]
Terminal block
TE1
a b 13 14
Screw: M3.5
Tightening torque: 0.8 [N•m]
TE2
WVU
Screw: M4
Tightening torque: 1.2 [N•m]
(Note) Connection wire [mm
2
]
External dynamic brake
U/V/W Except U/V/W
DBU-11K-4 5.5 (AWG 10) 2 (AWG 14)
DBU-22K-4 5.5 (AWG 10) 2 (AWG 14)
Note. Selection conditions of wire size is as follows.
Wire type: 600 V grade heat-resistant polyvinyl chloride insulated wire (HIV wire)
Construction condition: Single wire set in midair
