Mitsubishi MR-J4-40A

12. ABSOLUTE POSITION DETECTION SYSTEM
12 - 20
(2) Transmission error
(a) [AL. E5 ABS time-out warning]
In the ABS transfer mode, the servo amplifier processes time-out below, and displays [AL. E5] when
a time-out error occurs.
[AL. E5 ABS time-out warning] is cleared when ABSM changes from off to on.

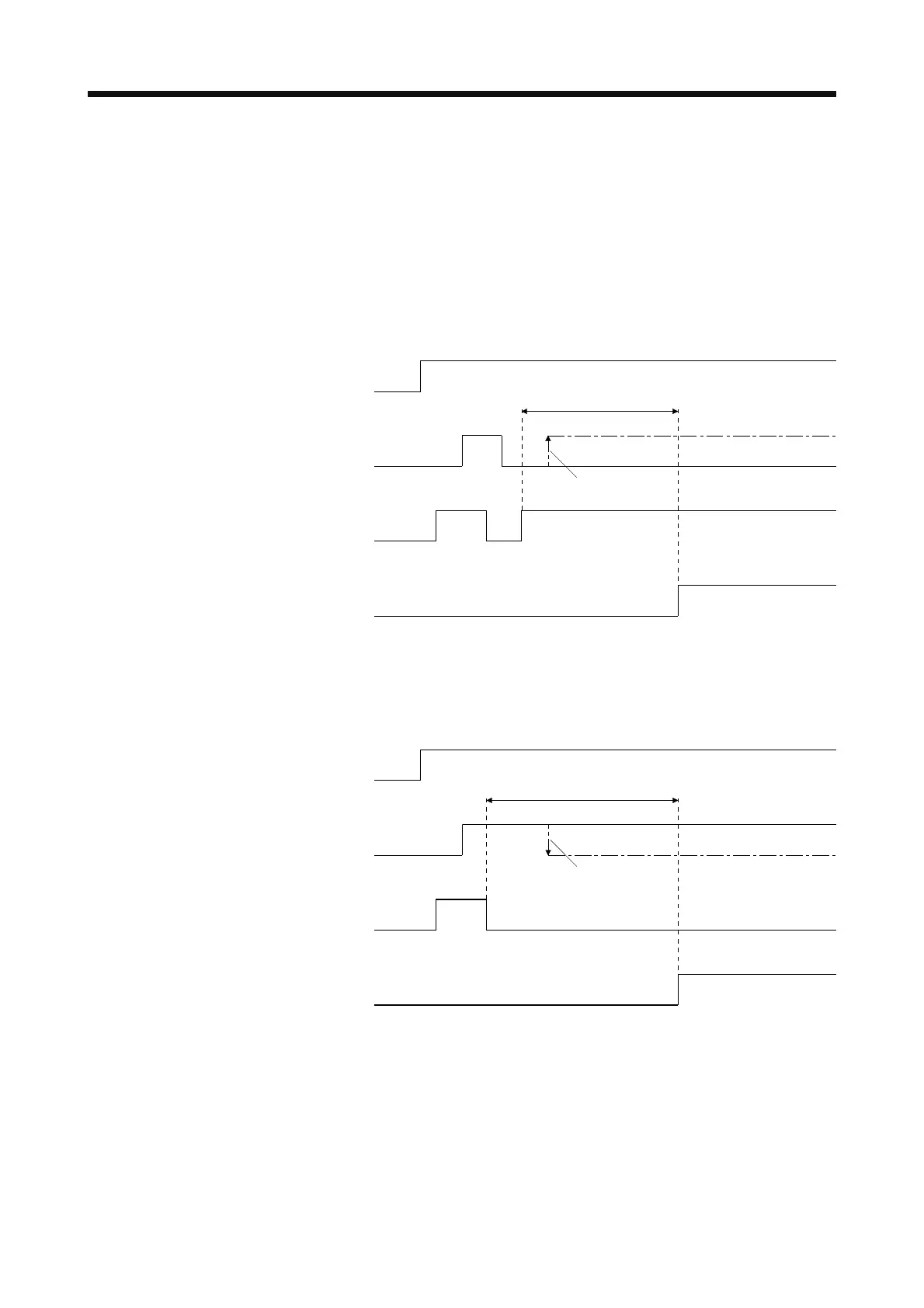

1) ABS request off-time time-out check (applied to 32-bit absolute position data in 2-bit units
checksum)
If the ABS request signal is not turned on by the programmable controller within 5 s after ABST is
turned on, this is regarded as a transmission error and [AL. E5 ABS time-out warning] is output.
OFF
ON
OFF
ON
OFF
ON
5 s
A
BSM
A
BSR
A
BST
[AL. E5]
Signal is not turned ON
No
Yes
2) ABS request on-time time-out check (applied to 32-bit absolute position data in 2-bit units
checksum)
If the ABSR is not turned off by the programmable controller within 5 s after ABST is turned off,
this is regarded as the transmission error and [AL. E5 ABS time-out warning] is output.
OFF
ON
OFF
ON
OFF
ON
5 s
A
BSM
A
BSR
A
BST
[AL. E5]
Signal is not turned OFF
No
Yes
