15. USING A LINEAR SERVO MOTOR
15 - 19

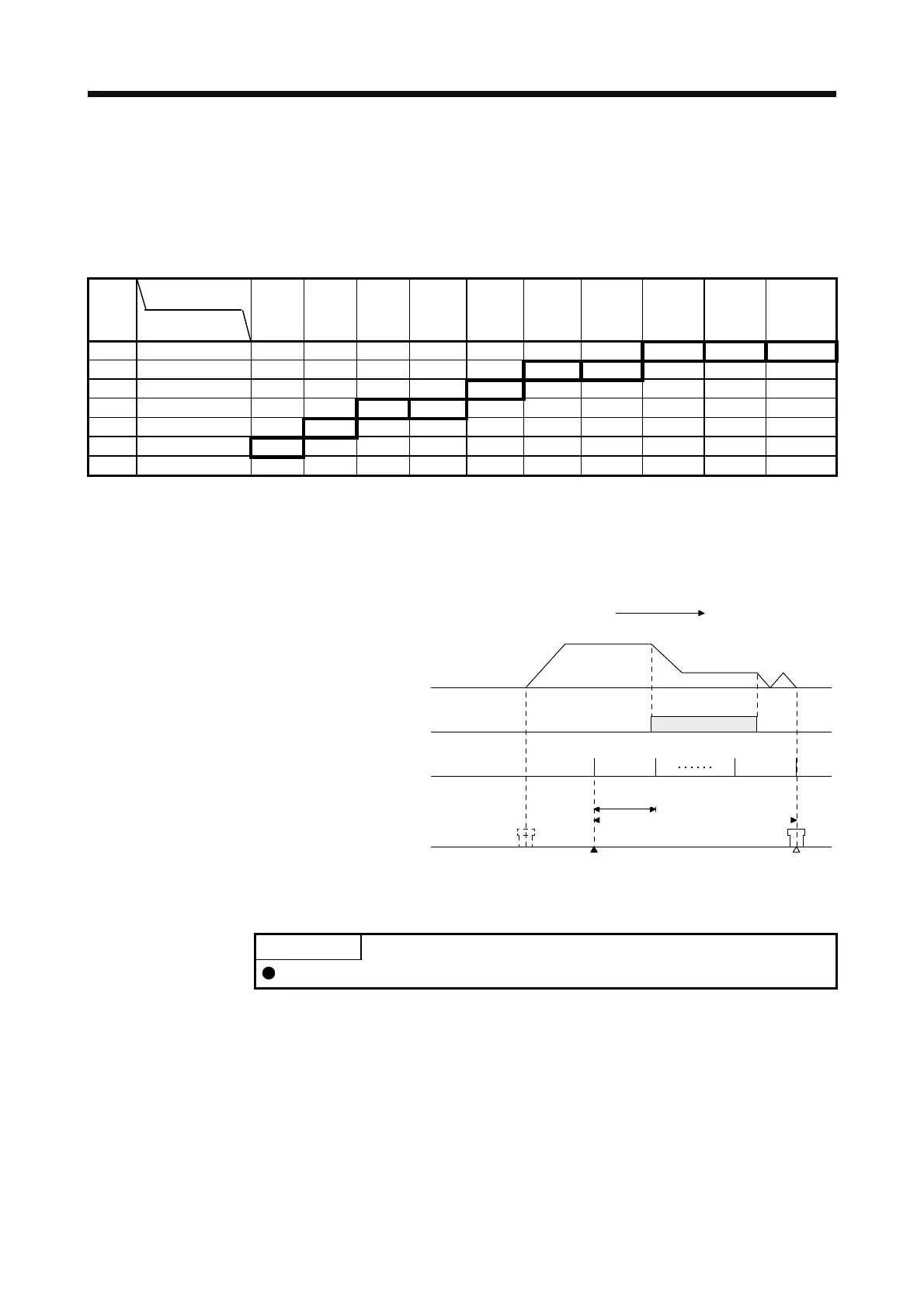

The following shows the relation between the stop interval at the home position return and the linear
encoder resolution. For example, when the linear encoder resolution is 0.001 μm and the parameter
for the stop interval at the home position return, [Pr.PL01], is set to "_ 5 _ _" (16777216 pulses), the
stop interval is 16.777 mm. The value inside a bold box indicates the recommended stop interval for
each linear encoder resolution.
[Unit: mm]
Linear encoder
resolution [µm]
Pr. PL01
Stop interval
[pulse]
0.001 0.005 0.01 0.02 0.05 0.1 0.2 0.5 1 2
_ 0 _ _ 8192 0.008 0.041 0.082 0.164 0.410 0.819 1.638 4.096 8.192 16.384
_ 1 _ _ 131072 0.131 0.655 1.311 2.621 6.554 13.107 26.214 65.536 131.072 262.144
_ 2 _ _ 262144 0.262 1.311 2.621 5.243 13.107 26.214 52.429 131.072 262.144 524.288
_ 3 _ _ 1048576 1.049 5.243 10.486 20.972 52.429 104.858 209.715 524.288 1048.576 2097.152
_ 4 _ _ 4194304 4.194 20.972 41.943 83.886 209.715 419.430 838.861 2097.152 4194.304 8388.608
_ 5 _ _ 16777216 16.777 83.886 167.772 335.544 838.861 1677.722 3355.443 8388.608 16777.216 33554.432
_ 6 _ _ 67108864 67.109 335.544 671.089 1342.177 3355.443 6710.886 13421.773 33554.432 67108.864 134217.728
In the case of a proximity dog type home position return, the nearest reference home position after
proximity dog off is the home position. The linear encoder home position can be set in any position.
LZ (Encoder Z-phase pulse) is outputted based on "Stop interval selection at the home position
return" in [Pr. PL01].
Linear encoder home position Home position
Home position return speed
Creep speed
Home position return direction
ON
OFF
Proximity dog
signal
Linear servo
motor
Reference home
position
Linear servo motor
position
0 mm/s
(Note)
1048576 pulses
1048576 pulses × n
Note. Changeable with [Pr. PL01].
POINT
The data set type home position return can also be carried out.
