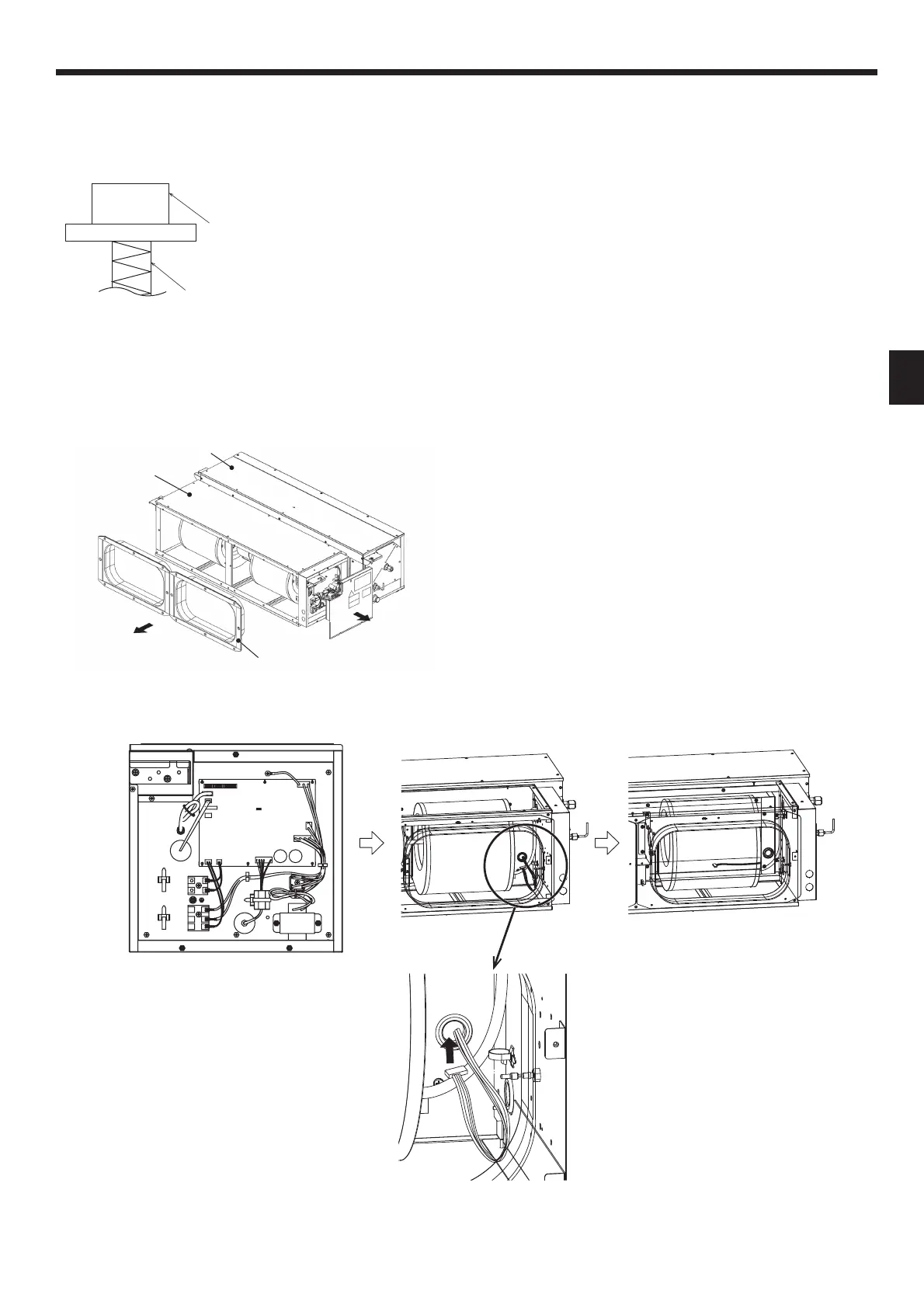

5. Installing the unit
5.1. Moving the unit to ceiling space
(1)Whenthefanunitdoesnotneedtobeseparatedfromthecoilunit
①
Bring the indoor unit to an installation site as it is packed.
②
To hang the indoor unit, use a lifting machine to lift and pass through the hanging bolts. [Fig. 5-1-1]
[Fig. 5-1-1]
Ⓐ
Ⓑ
Ⓐ
Unit body
Ⓑ
Lifting machine
(2)Whenthefanunitneedstobeseparatedfromthecoilunit
①
Bring the indoor unit to an installation site as it is packed.
②
 Beforeseparatingthefanunitfromthecoilunit,removetheinletangeandthecontrolboxcovertoremovethecableoftheheatexchangerthermistor.[Fig. 5-1-2]
[Fig. 5-1-2]
Coil unit
Fan unit
Inlet flange
③
Removetheconnector(CN44)ofthethermistorcablefromthecircuitboard,threadthethermistorcablethroughtherubberbushofthecontrolboxandtheconnection
ange,andplacethethermistorintheconnectionange.[Fig. 5-1-3]
[Fig. 5-1-3]
CN44

Mitsubishi Mr.Slim Series Specifications

General

Cooling Capacity	9, 000 - 36, 000 BTU/h
Refrigerant	R410A or R32 (depending on the model)
Operating Temperature (Cooling)	5°C to 46°C
Operating Temperature (Heating)	-15°C to 24°C
Noise Level (Indoor Unit)	19 - 45 dB
Indoor Unit Dimensions	Varies by model
Outdoor Unit Dimensions	Varies by model
Weight (Indoor Unit)	Varies by model
Weight (Outdoor Unit)	Varies by model
Features	Inverter Technology, Quiet Operation
Power Supply	208/230V, 1-phase, 60Hz
