Mitsubishi Q Series Programming Guide

1 - 6 1 - 6
MELSEC-Q
1 GENERAL DESCRIPTION

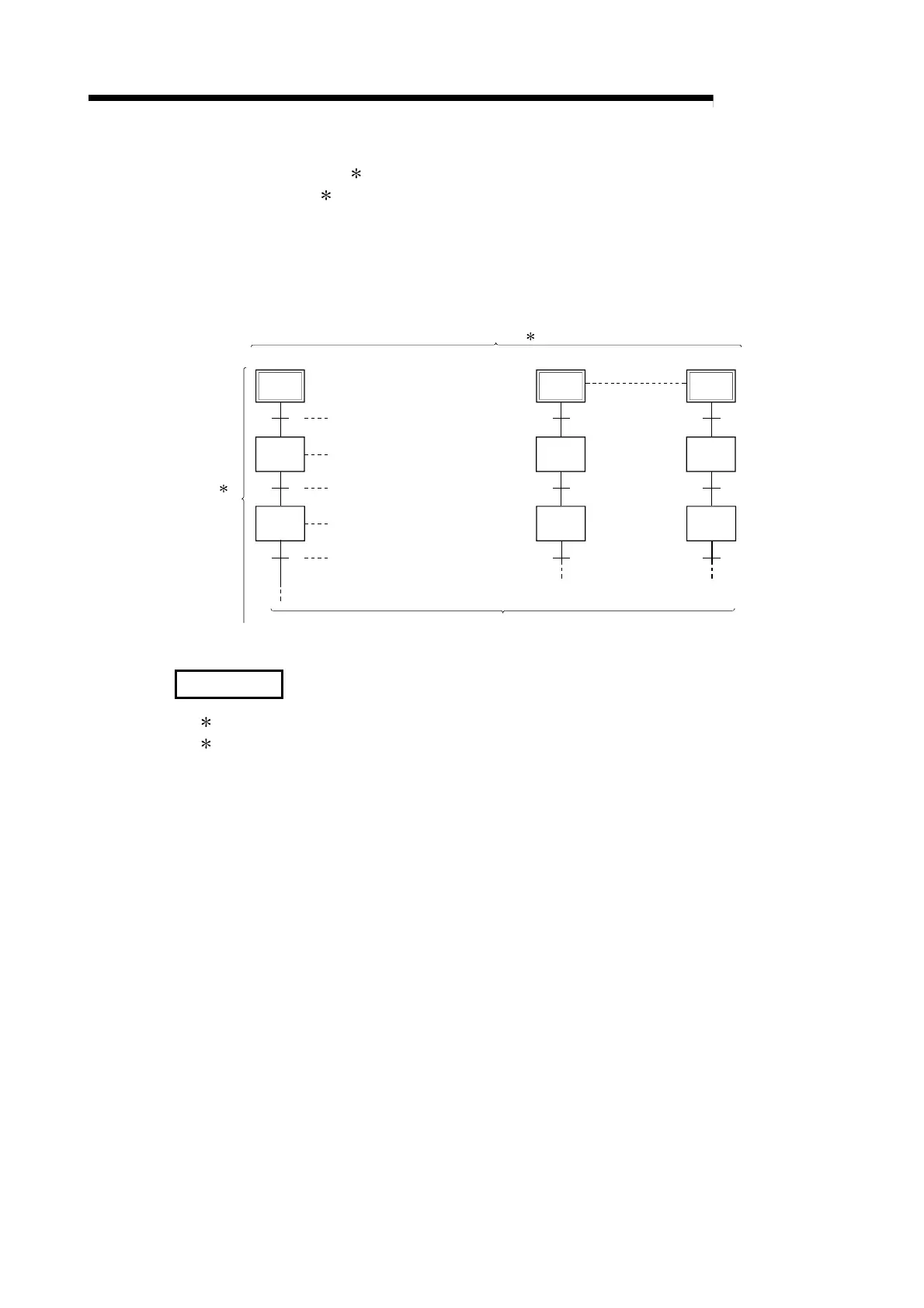

(3) Ease of division editing of blocks and steps according to control object
• A total of 320 blocks
1 can be created in a whole SFC program.
• Up to 512 steps
2 can be created in a single block.
• Up to 2k sequence steps of operation outputs/transition conditions can be created in all
blocks. By dividing blocks and steps as shown below, tact time can be shortened and
debugging/test operation can be performed easily.
• Blocks are divided properly according to the operation units of machines.
• Steps in each block are divided properly.
320 blocks 1
Initial
step
Step 1
Block 0
Block 1
Block 319
512 steps
Operation output/transition
condition program
Step 2
Step 1
Step 2
Step 1
Step 2
2
Operation output/transition condition: 2k sequence steps in all blocks
aX0
aT0
oY21
aX1
oY20, oT0 K20
Initial
step
Initial
step
REMARKS
1: 128 blocks for the Basic model QCPU and Universal model QCPU (Q02UCPU only).
2: 128 steps for the Basic model QCPU and Universal model QCPU (Q02UCPU only).

Mitsubishi Q Series Specifications

General

I/O Points	Up to 4096 points
Communication	Ethernet, RS-232, RS-485
I/O Modules	Digital, Analog, Specialized
Programming Language	Function Block Diagram, Structured Text
Power Supply	24V DC, 100-240V AC
Operating Temperature	0°C to 55°C
Shock Resistance	147 m/s2 acceleration, 3 times in each of X, Y, and Z directions
Program Capacity	Up to 252K steps
