4 - 12
MELSEC-Q
4 INSTALLATION, WIRING AND MAINTENANCE OF THE PRODUCT
(5) To make this product conform to the EMC directive and low voltage
instruction, be sure to used of a AD75CK type cable clamp (manufactured
by Mitsubishi Electric) for grounding connected to the control box and the
shielded cable/ the SSCNET cable.
QD75
20cm(7.88inch)
to 30cm(11.82inch)
Inside control box
AD75CK

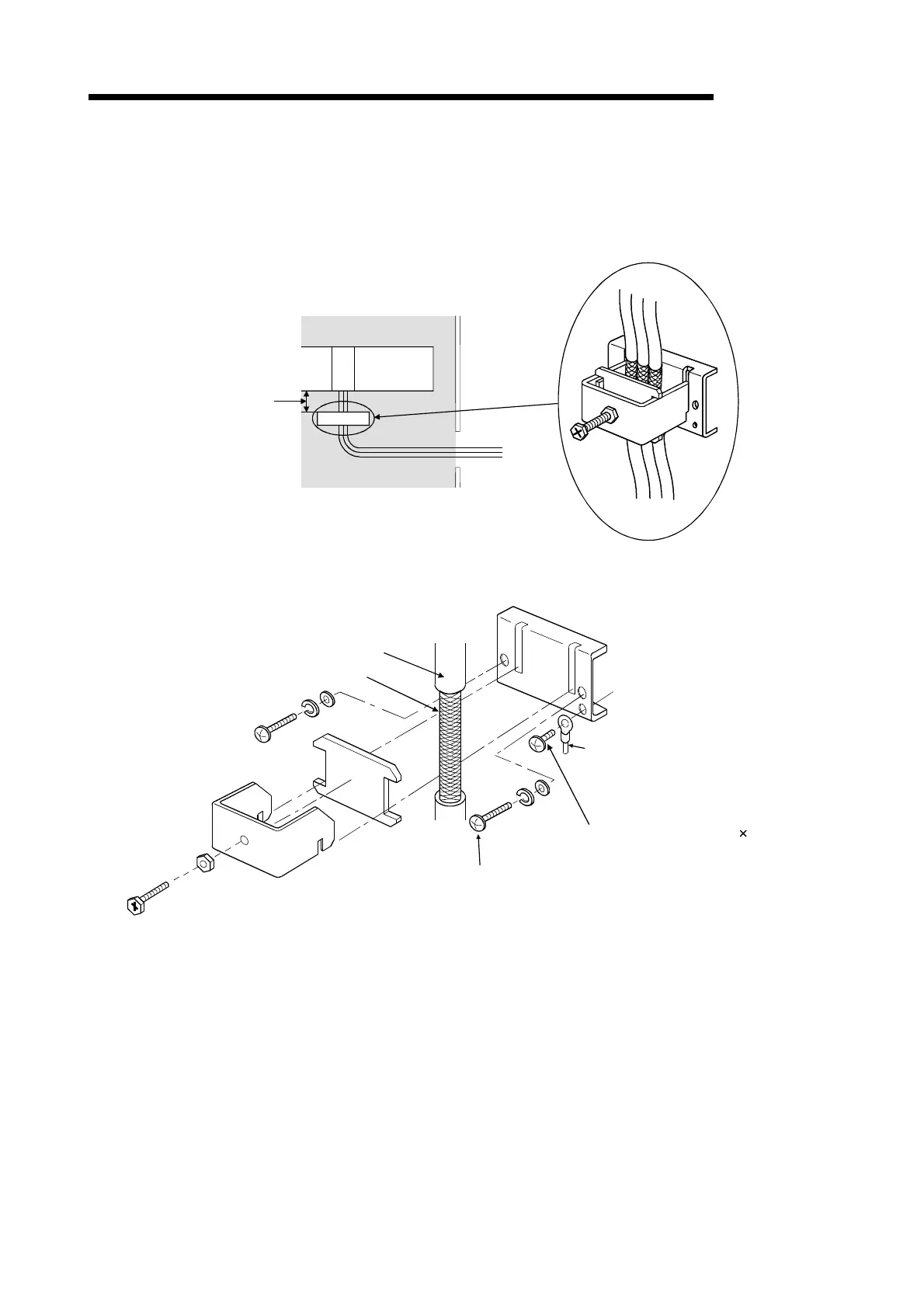

[How to ground shielded cable using AD75CK]
Shielded cable
Shield
Installation screw to control box (M4 screw)
Ground terminal
Ground terminal installation screw (M4 8 screw)
Using the AD75CK, you can tie four cables of about 7mm outside diameter together for
grounding.
To Next Page
