MELSEC-Q
8 UTILITY PACKAGE (GX Configurator-MB)
8.4 Initial Setting
[Purpose]
Set parameters on the initial setting screen.
This setting eliminates the need for parameter setting by sequence programs.
The initial setting are as follows.
Basic parameters
Automatic communication parameters
MODBUS
R
device assignment parameters
[Operating procedure]
"Start I/O No." "Module type" "Module model name" Initial setting

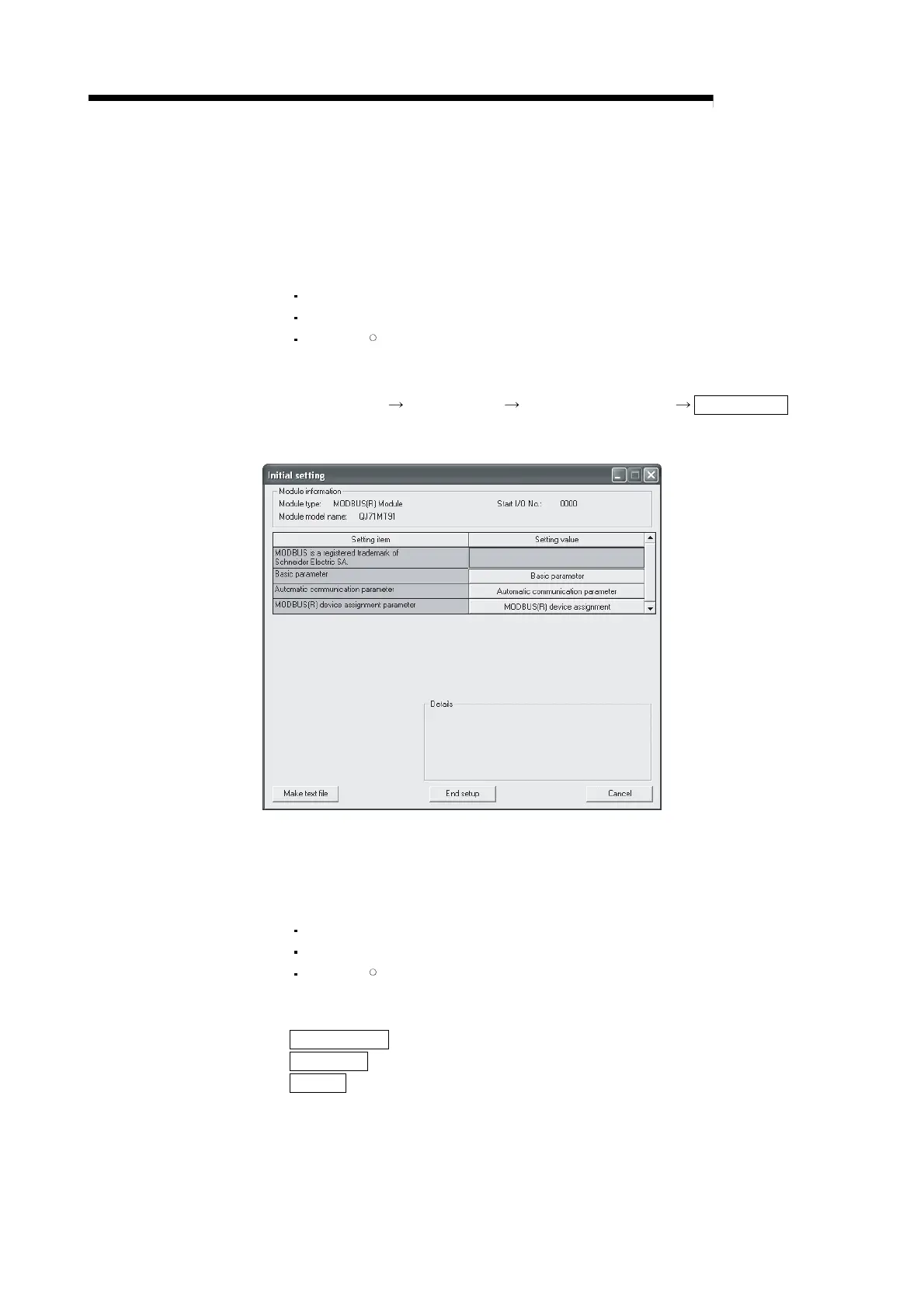

[Setting Screen]
[Explanation of items]
(1) Parameter settings
Select a button under the Setting value, and set the parameters on the
corresponding screen.
Basic parameter setting (refer to Section 8.7.1)
Automatic communication parameter setting (refer to Section 8.7.2)
MODBUS
R
device assignment parameter setting (refer to Section 8.7.3)
(2) Command buttons
Make text file Creates a file containing the screen data in text file format.
End setup Saves the set data and ends the operation.
Cancel Cancels the setting and ends the operation.
