8.6.3 Automatic communication status
[Monitor/Test Purpose]
Monitor the communication status of the automatic communication function.
[Operating procedure]
Monitor/Test screen Automatic communication

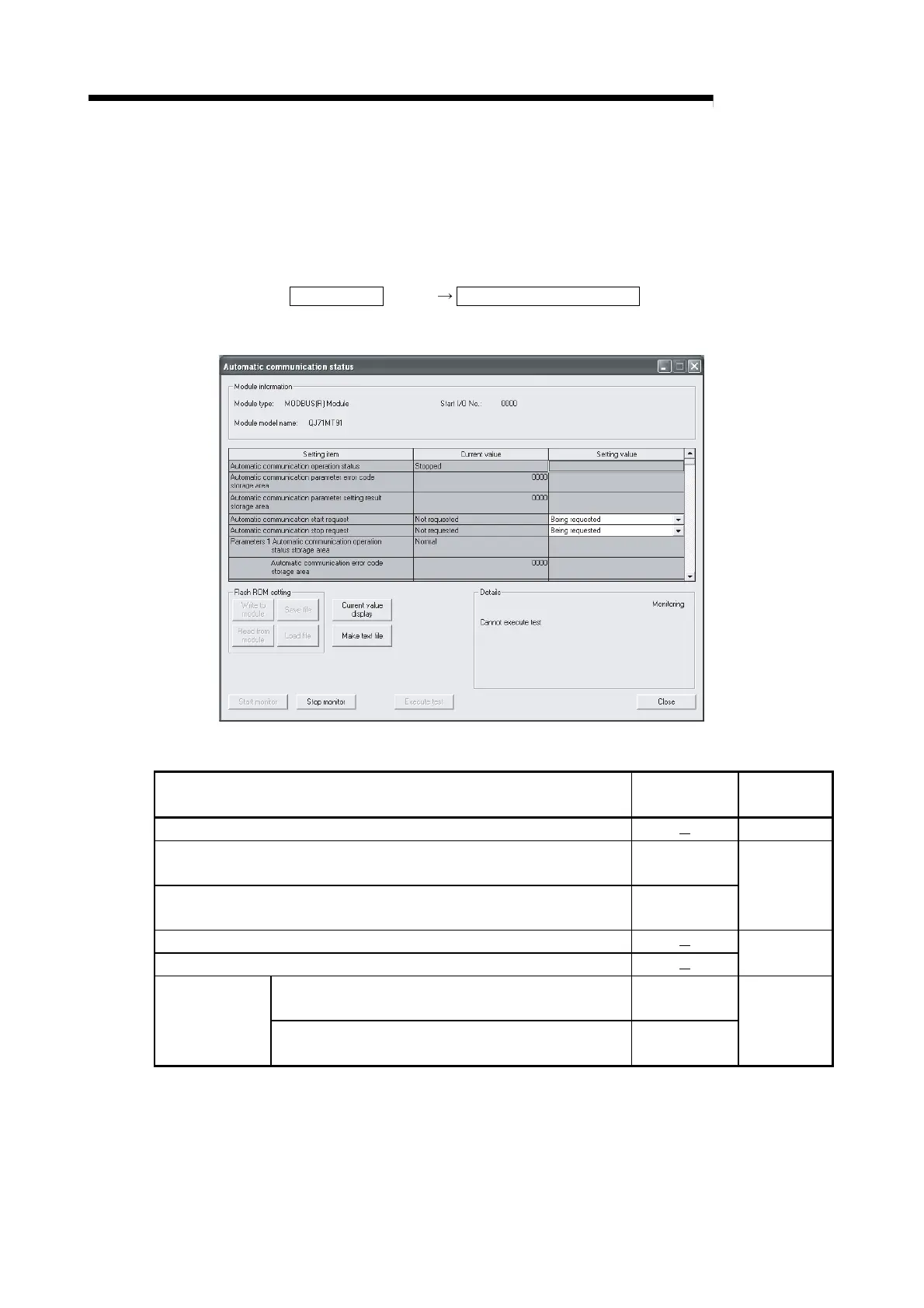

[Monitor/Test Screen]
[Monitor/Test Items]
Monitor/Test Item
Buffer memory
address
Reference
section
Automatic communication operation status
Section 5.2.1
Automatic communication parameter error code storage area
0C11
H
(3089)
Automatic communication parameter setting result storage area
0C12
H
(3090)
Section 11.3.1
Automatic communication start request (*1)
Automatic communication stop request (*1)
This section
Automatic communication operation status storage area
0C20
H to 0C23H
(3104 to 3107)
Parameter 1 to 64
Automatic communication error code storage area
0C28
H to 0C67H
(3112 to 3175)
Section 11.3.1
