Mitsubishi QJ71MT91

8 - 23 8 - 23
MELSEC-Q
8 UTILITY PACKAGE (GX Configurator-MB)
8.6.2 Basic/MODBUS
®
device assignment parameter status
[Monitor Purpose]
Monitor the setting status of the basic parameters and MODBUS
R
device
assignment parameters.
[Operating procedure]
Monitor/Test screen Basic/MODBUS(R) device

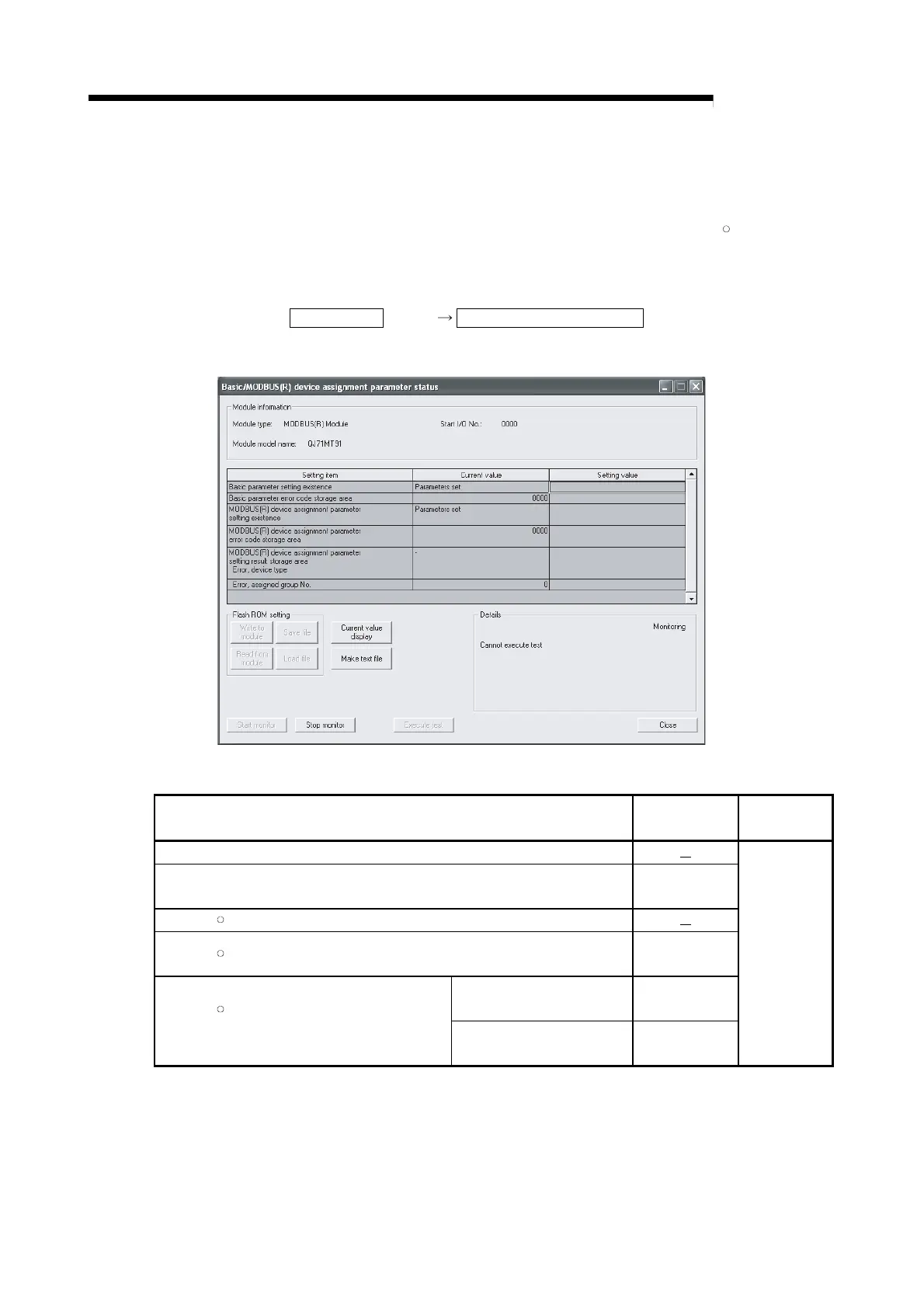

[Monitor Screen]
[Monitor Items]
Monitor Item
Buffer memory
address
Reference
section
Basic parameter setting existence
Basic parameter error code storage area
0C10
H
(3088)
MODBUS
R
device assignment parameter setting existence
MODBUS
R
device assignment parameter error code storage area
0C13
H
(3091)
Error, device type
0C14
H
(3092) MODBUS
R
device assignment parameter
setting result storage area
Error, assigned group No.
0C15H
(3093)
Section 11.3.1
