2 - 8 2 - 8
MELSEC-Q
2 SYSTEM CONFIGURATION
2.5 How to Check the Function Version and Software Version
Confirm the function version of the QJ71MT91 and the software version of GX
Configurator-MB in the following methods.

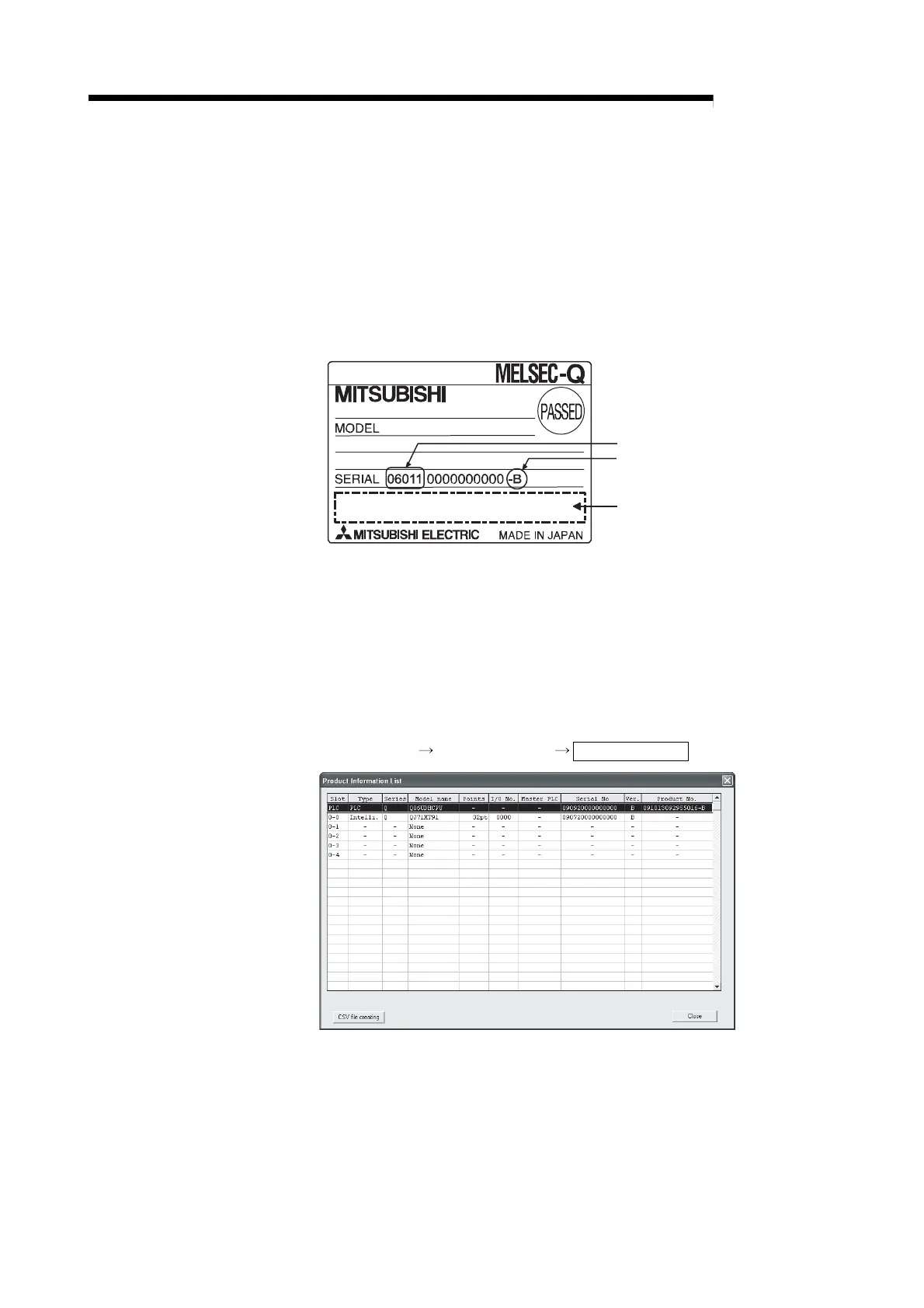

(1) Checking the function version of the QJ71MT91
(a) Checking at "the SERIAL field of the rating plate" located on
the side of the module
The serial No. and function version of the module is shown in the SERIAL
field of the rating plate.
MAC ADD.
Relevant regulation standards
Function version
Serial No.(first5 digits)
(b) Checking by GX Developer
The serial No. and function version of the module are displayed on the
"Production Info. List" and "Module's Detailed Information" screen of GX
Developer.
The following explains how to check them on the "Production Info. List"
screen.
(For the case of "Module’s Detailed Information", refer to Section 11.2.)
[Operating procedure]
[Diagnostics]
[System monitor] Product Inf. List
To Next Page
