9 PROGRAMMING

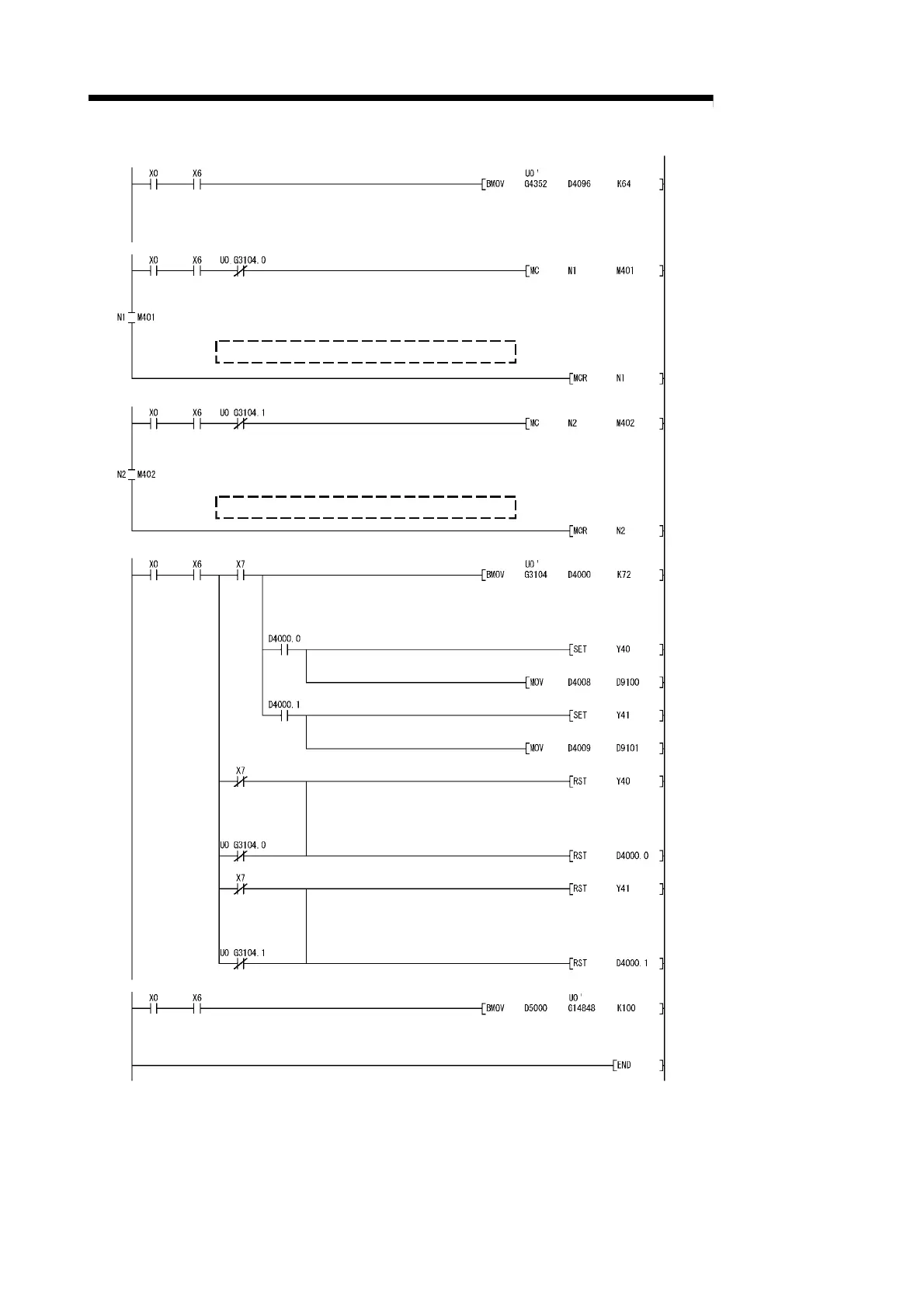

Program for normal automatic communication parameter 1
Program for normal automatic communication parameter 2
<<Refresh processing: Automatic communication function buffer input area>>
Refreshes automatic
communication function buffer
input area.
When automatic communication
parameter 1 is normal
When automatic communication
parameter 2 is normal
Acquires automatic
communication operation status
and automatic communication
error code at automatic
communication error.
Turns ON External output (Y40)
when automatic communication
parameter 1 is invalid.
Acquires error code when
automatic communication
parameter 1 is invalid.
Turns ON External output (Y41)
when automatic communication
parameter 2 is invalid.
Acquires error code when
automatic communication
parameter 2 is invalid.
Turns OFF External output (Y40)
when automatic communication
is normal.
Turns OFF automatic
communication operation status
for automatic communication
parameter 1 (D4000.0).
Turns OFF External output (Y41)
when automatic communication
is normal.
Turns OFF automatic
communication operation status
for automatic communication
parameter 2 (D4000.1).
Refreshes automatic
communication function buffer
output area.
Module
READY
Automatic
communication
operation status
<<Processing for normal automatic communication: For automatic communication parameter 1>>
Module
READY
Automatic
communication
operation status
<<Processing for normal automatic communication: For automatic communication parameter 2>>
Module
READY
Automatic
communication
operation status
<<Handling of automatic communication error>>
Module
READY
Automatic
comm.
operation
status
<<Refresh processing: Automatic communication function buffer output area>>
Module
READY
Automatic
comm.
operation
status
Automatic
comm.
error
status
Automatic
comm.
error
status
Automatic
comm.
error
status
\
\
\
\
\
\
\
