9 - 30 9 - 30
MELSEC-Q
9 PROGRAMMING
(a) Automatic communication function
The setting target QJ71MT91 (192.1.0.1) and MODBUS
R
/TCP slave
device (192.1.0.2) communicate with each other using the automatic
communication function.
Set the automatic communication parameters to the setting target
QJ71MT91.

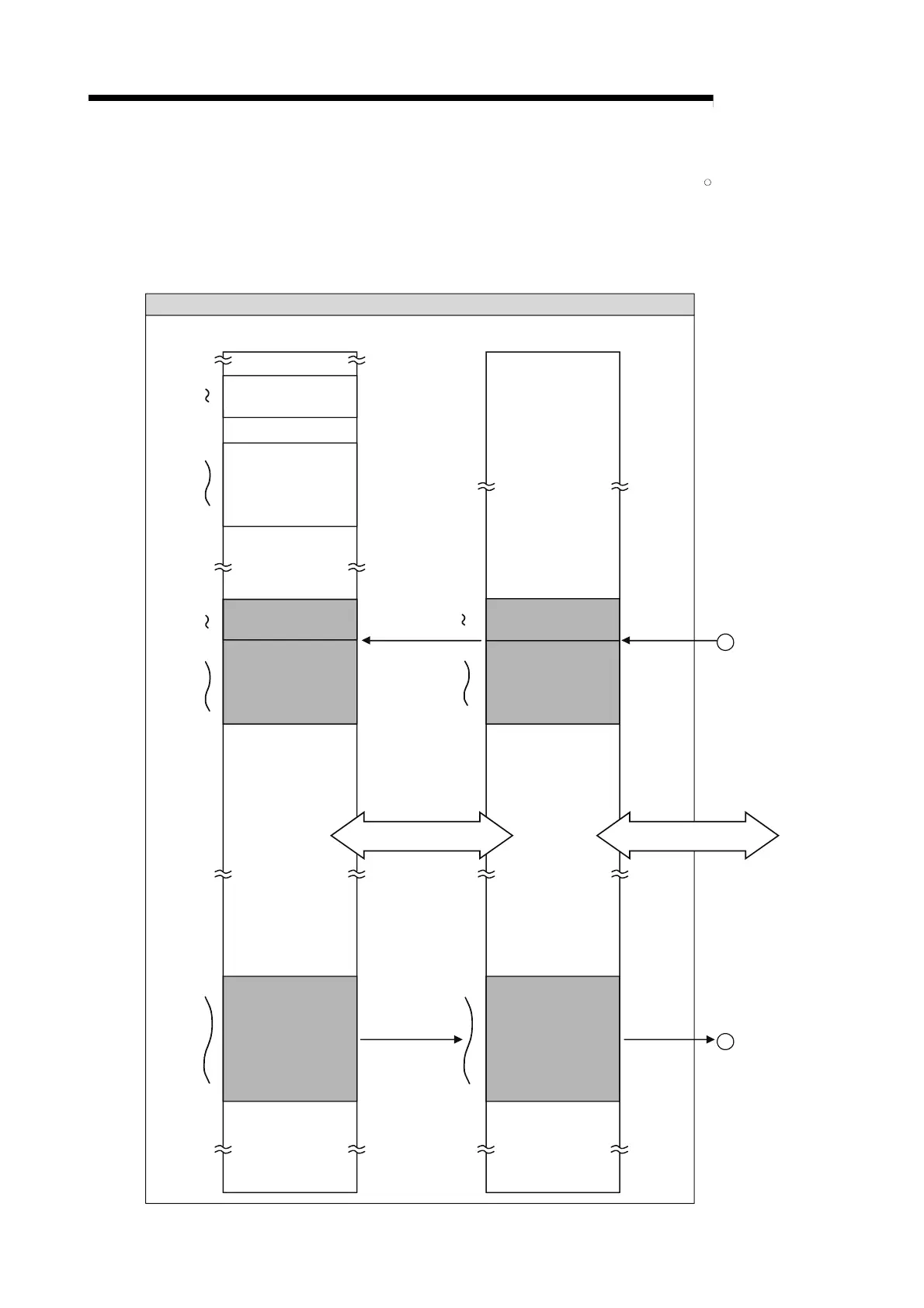

[Communication details]
D5000
D5099
D4096
D4159
MELSECNET/H remote master station
Programmable controller CPU
MELSECNET/H
remote master module
D4000
Automatic communication
error code storage area
D4003
Input data
Output data
D4092
D4095
W0FFC
W0FFF
D4008
D4071
W1388
W13EB
W1000
W103F
MELSECNET/H
link refresh
MELSECNET/H
link scan
1
2
Automatic communication
operation status storage area
Automatic communication
operation status storage area
Input data
Output data
Automatic communication
operation status storage area
