2 SYSTEM CONFIGURATION
(2) GX Developer connection
(a) Accessible range of GX Developer
Refer to Appendix 3 for the GX Developer connection setup examples.

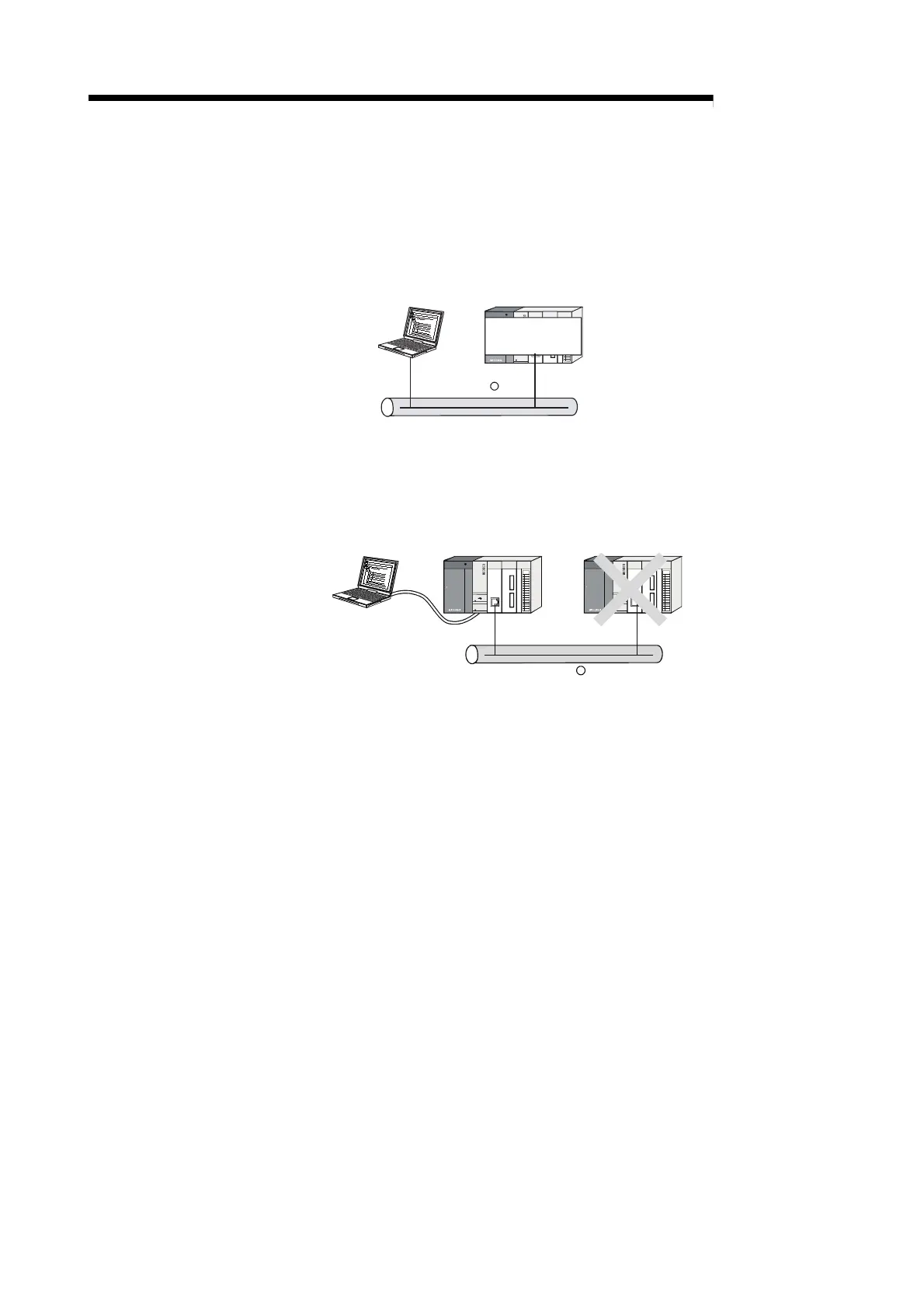

[Access path via QJ71MT91]
GX Developer
QJ71MT91
Connected
programmable
controller
MODBUS /TCP
R
(b) Precautions for GX Developer connection
When the QJ71MT91 and Ethernet module exist together on the same
Ethernet, access cannot be made between the QJ71MT91 and Ethernet
module.
GX Developer
Ethernet module
QJ71MT91
Ethernet and MODBUS /TCP mixed network
R
