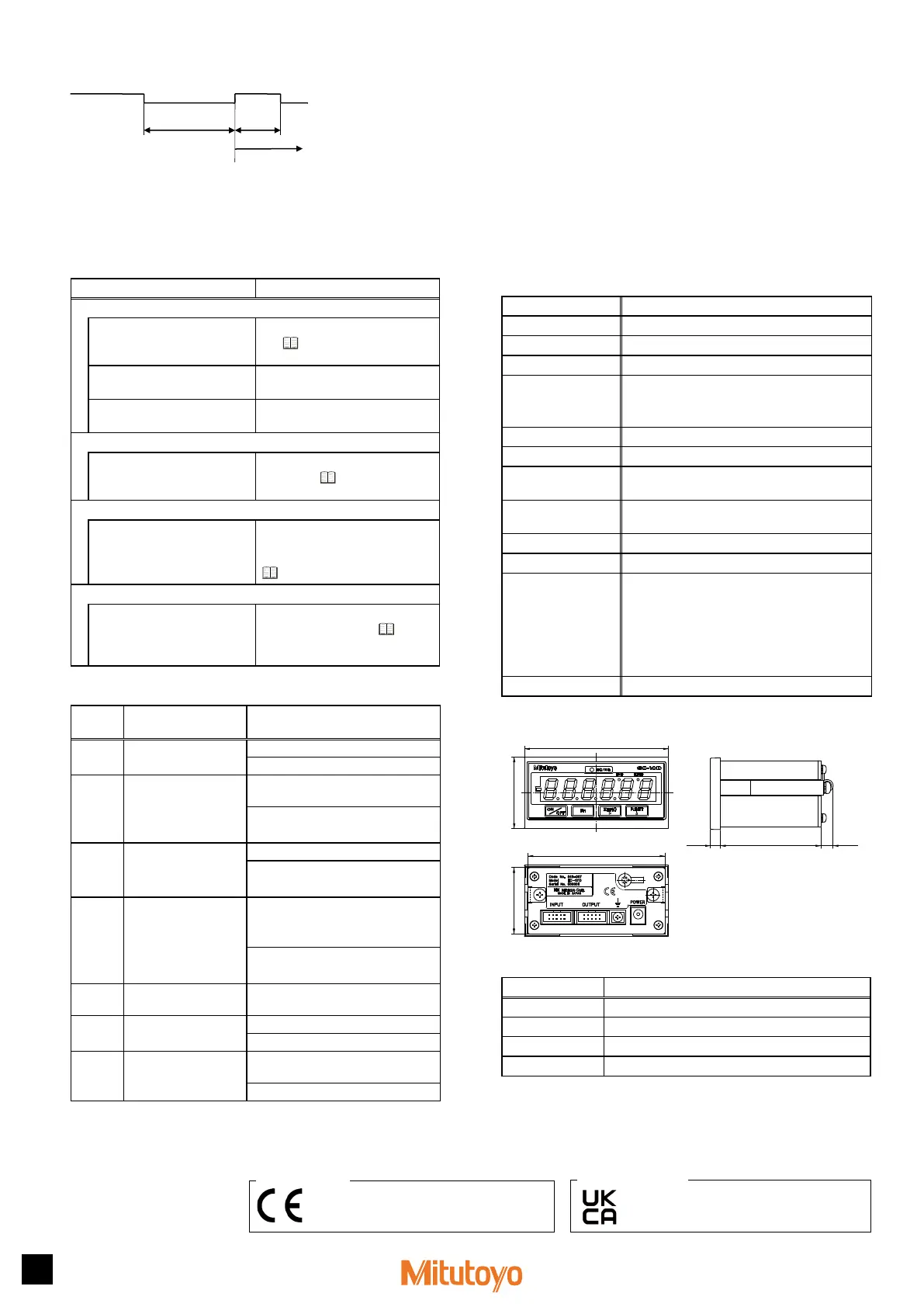

6
Printed in Japan
Date of publication: August 1, 2021 (1)
z
HOLD
Error cancellation
Min. 10 ms
Min.
10 ms
6
Troubleshooting
6.1
Troubleshooting
When the Counter does not operate as expected, refer to the cause of the
trouble and the solutions shown below:
Cause Solution
Symptom 1: The counter value is incorrect (not counting).
Parameters are not correctly set
for the type of the Linear Gage,
etc.
Set correct parameters. For details,
see
"3.2 Basic Parameters"
(page 3).
The HOLD signal (UNIT is
blinking) is being input.
Check the external input.
Calculation with a constant
function is set.
Cancel calculation with a constant
function. (Set parameter number 16 to 0.)
Symptom 2: Cannot execute Zero setting.
The Preset value is a value other
than 0.
Set the Preset value to 0. For
details, see
"4.1 Zero Setting"
(page 4).
Symptom 3: The Counter executes Zero setting unexpectedly.
A power interruption (sudden
drop in power voltage) has
occurred.
Check the power supply. For details
about how to cancel the error, see
[------] in the List of Error Codes.
"6.2 List of Error Codes"
(page 6)
Symptom 4: Cannot modify the parameter settings.
"Set parameters" (set value 1)
has not been set for Parameter
mode.
Set the value for parameter number
00 to 1. For details, see
"3.1
Procedure for Setting Parameters"
(page 3).
6.2
List of Error Codes
Display Cause
Solution/
Error cancellation method
Err 10 Abnormal power
voltage
Connect to the specified power.
Automatic cancellation
[------] In stand-by state after
power-on or a power
interruption
Re-check the power if a power
interruption has occurred.
y
Press [P.SET].
y
Input an external HOLD signal.
Err 30 The counter value is 8
digits or more.
Modify the Preset value.
y
Press [P.SET].
y
Input an external HOLD signal.
Err 40 Linear Gage
malfunction or excess
speed
y
Check the Linear Gage connection.
y
Revise the measurement
conditions.
y
Press [P.SET].
y
Input an external HOLD signal.
F***** The counter value is 6
digits or more.
Return the counter value to within 6
digits.
Err 90 Tolerance value setting
error
Input the tolerance value again.
Press [P.SET].
Err 95 Key protection Cancel the key protection parameter.
(Set parameter number 35 to 0.)
Automatic cancellation
Tips
• When an error occurs in tolerance judgment output (the value for
parameter number 20 is 0), both pin numbers 2 (+NG) and 4 (-NG)
will be "L".
• If an error occurs while you are setting parameters, the Preset value,
or the tolerance value, the error will be displayed after you return to
the counter state. However, the error signal will be output immediately
to any external output.
• Errors can also be canceled with an external PSET signal.
• All decimal points blink for about 8 seconds when an error is
canceled.
7
Specifications
Basic specifications
Code No. 542-007
Model No. EC-101D
Number of display axis 1 axis
Display Minus (–) sign and 6 numeric digits (green LED)
Minimum reading
(Count display range)
Set automatically according to the gage
0.01 (
±
9999.99) mm
0.001 (
±
999.999) mm
Power source voltage DC +9 V to 12 V
Power consumption Max. 4.8 W (Max. 400 mA)
Operating temperature
(humidity) range
0
°C
to 40
°C
(20
%
RH to 80
%
RH, without
condensation)
Storage temperature
(humidity) range
-10
°C
to 50
°C
(20
%
RH to 80
%
RH, without
condensation)
External dimensions 96 (W)
×
48 (H)
×
85 (D) mm
Mass Approx. 220 g
CE marking/
UKCA marking
EMC Directive/Electromagnetic Compatibility
Regulations: EN 61326-1
Immunity test requirement: Clause 6.2 Table 2
Emission limit: Class B
RoHS Directive/The Restriction of the Use of
Certain Hazardous Substances in Electrical and
Electronic Equipment Regulations: EN IEC 63000
Interface I/O, Digimatic output
External dimensions drawing
Approx. 11
91.4
676.6
Unit: mm
Options
Part No. Name
936937 Connection cable (RS LINK/Digimatic) (1 m)
965014 Connection cable (RS LINK/Digimatic) (2 m)
214938 DC plug (MP-121M)
21HZA222 I/O cable (2 m)
Mitutoyo Corporation
20-1, Sakado, 1-Chome,
Takatsu-ku, Kawasaki-shi,
Kanagawa 213-8533, Japan
For the EU Directive
Authorized representative and importer in the EU:
Mitutoyo Europe GmbH
Borsigstrasse 8-10, 41469 Neuss, Germany
For the UK Regulation
Authorized representative and importer in the UK:
Mitutoyo (UK) Ltd.
Joule Road, West Point Business Park, Andover,
Hampshire SP10 3UX, UNITED KINGDOM
