MK Martin PULSAR PLUS - Pulsar Plus 60 HD-72 HD-84 HD Parts

10

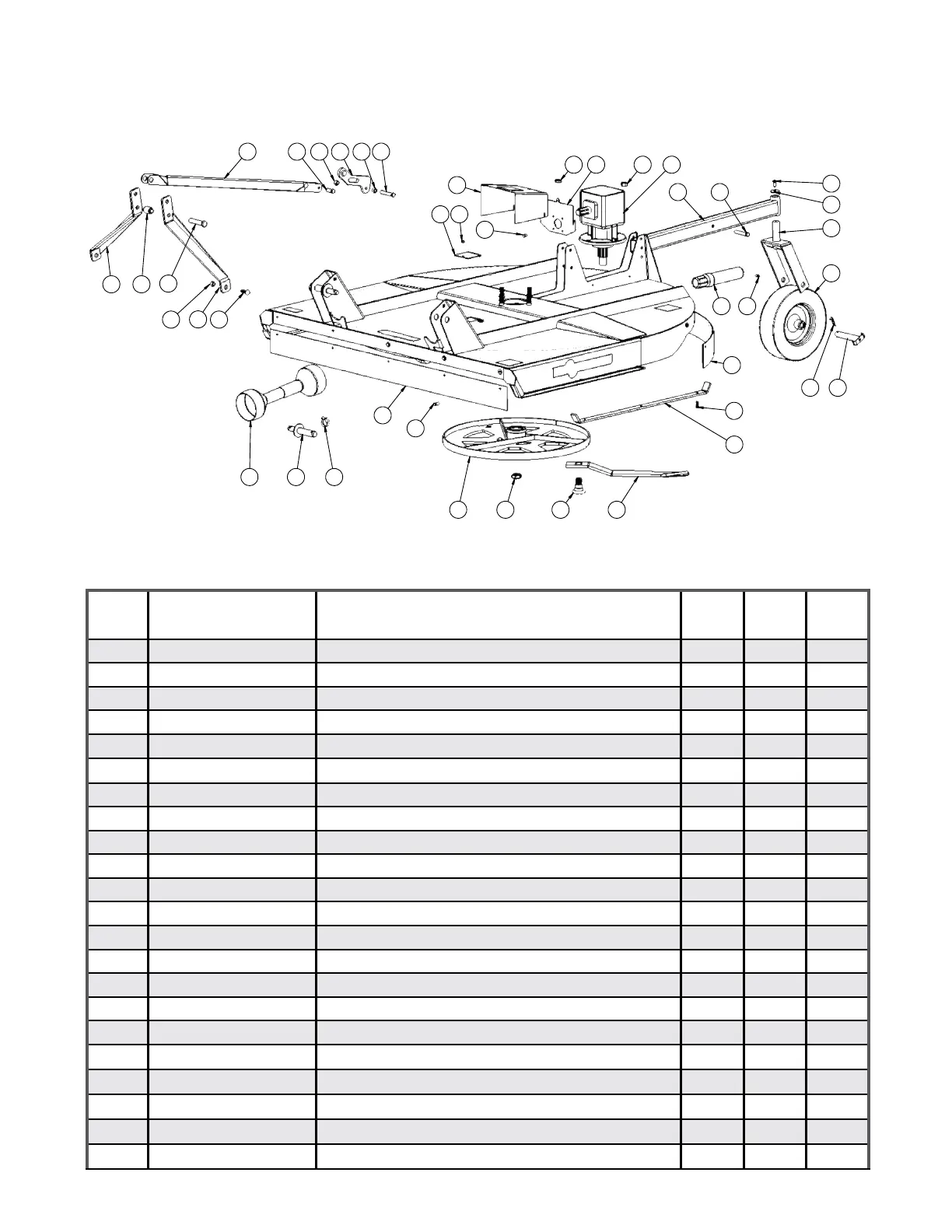

Pulsar Plus Rotary Cutter 60HD-72HD-84HD Parts
THIRD ANGLE PROJECTION
1234
567
8
9
10
11
1213
14 15 16 17 18 19
20 21
26 27
28
30
31
32
29
33
3435
3637
39
38
22
23
2524
40
41
42
5
4
3
1
Folder
S:\Solidworks\Solidworks_Elo\Cutter\Pulsar\Pulsar Plus 72\52990.SLDASM
DWG. NO.
REV
Model
SCALE 1:48
SHEET 2 OF2
DATE DRAWN
MATERIAL
52990
December-18-15 11:58:30 AM
DESCRIPTION
72 Pulsar Plus Cutter
S:\Solidworks\Solidworks_Elo\Cutter\Pulsar\Pulsar Plus 72\
Weight(lbs.)
0
Width Height Length
0 0 723.79 0
Blank Size Unit of Measure
ITEM ID.
52990
Config ID
Exploded Plus
DIMENSIONS ARE IN INCHES
TOLERANCES NON SPECIFIED:
FRACTIONAL 1/64
BEND 1.0
TWO PLACE DECIMAL 0.01"
THREE PLACE DECIMAL 0.002"
Notes
DO NOT SCALE DRAWING
Item# Part# Description
Qty
60HD
Qty
72HD
Qty
84HD
1 53057 Blade ( 3 Blade Kit - 53220 ) 3 3
53059 Long Blade ( 3 Blade Kit - 53221 ) 3
2 53060 Blade Bolt c/w lw,n 3 3 3
3 Nut See Page pg.15 pg.15 pg.15
4 52980 60 Blade Bar 1
52999 72-84 Blade Bar 1 1
5 OL 7/16 Lynch Pin 2 2 2
6 53080 Hitch Pin 2 2 2
7 512-722223HD 60 - 72 HD PTO 1 1
512-842223 84 HD PTO 1
8 OL Carriage Bolt 1/2 x 1 3/4 c/w fw,ln 2 2 2
9 52977 Left Aframe 1 1 1
10 22868 Pivot Bushing 2 2 2
11 OL Bolt 3/4 x 4 c/w ln 1 1 1
12 50702 Spacer Bushing 1 1 1
13 52976 Right Aframe 1 1 1
14 50711 60 Upper Link Bar 1
50705 72 Upper Link Bar 1
50718 84 Upper Link Bar 1
15 OL Bolt 1/2 x 1 3/4 c/w ln 1 1 1
16 22868 Link Bushing 1 1 1
17 50707 Lower Link Bar 1 1 1
