MK Martin PULSAR PLUS - Chain Guard Parts

14
Note:
OL = Obtain Locally
c/w = complete with
fw = Flatwasher
lw = Lockwasher
ln = Locknut
n = Nut
Item# Part# Description
Qty
60
Qty
72
Qty
84
Qty
96
1 52903 60 Front Chain Guard 1
52954 72 Front Chain Guard 1
53022 84 Front Chain Guard 1
53161 96 Front Chain Guard 1
2 52942 60 Front Cable 1
52957 72 Front Cable 1
53024 84 Front Cable 1
53163 96 Front Cable 1
3 52941 60 Rear Cable 2
52956 72 Rear Cable 2
53025 84 Rear Cable 2
53164 96 Rear Cable 2
4 52901 60 Rear Chain Guard 2
52955 72 Rear Chain Guard 2
53023 84 Rear Chain Guard 2
53162 96 Rear Chain Guard 2
5 OL Bolt 3/8 x 1 c/w lw,n 10 11 11 12
6 OL 3/16 Cable Clamp 6 6 6 6
7 53081 5/16 Chain 128 164 180 220

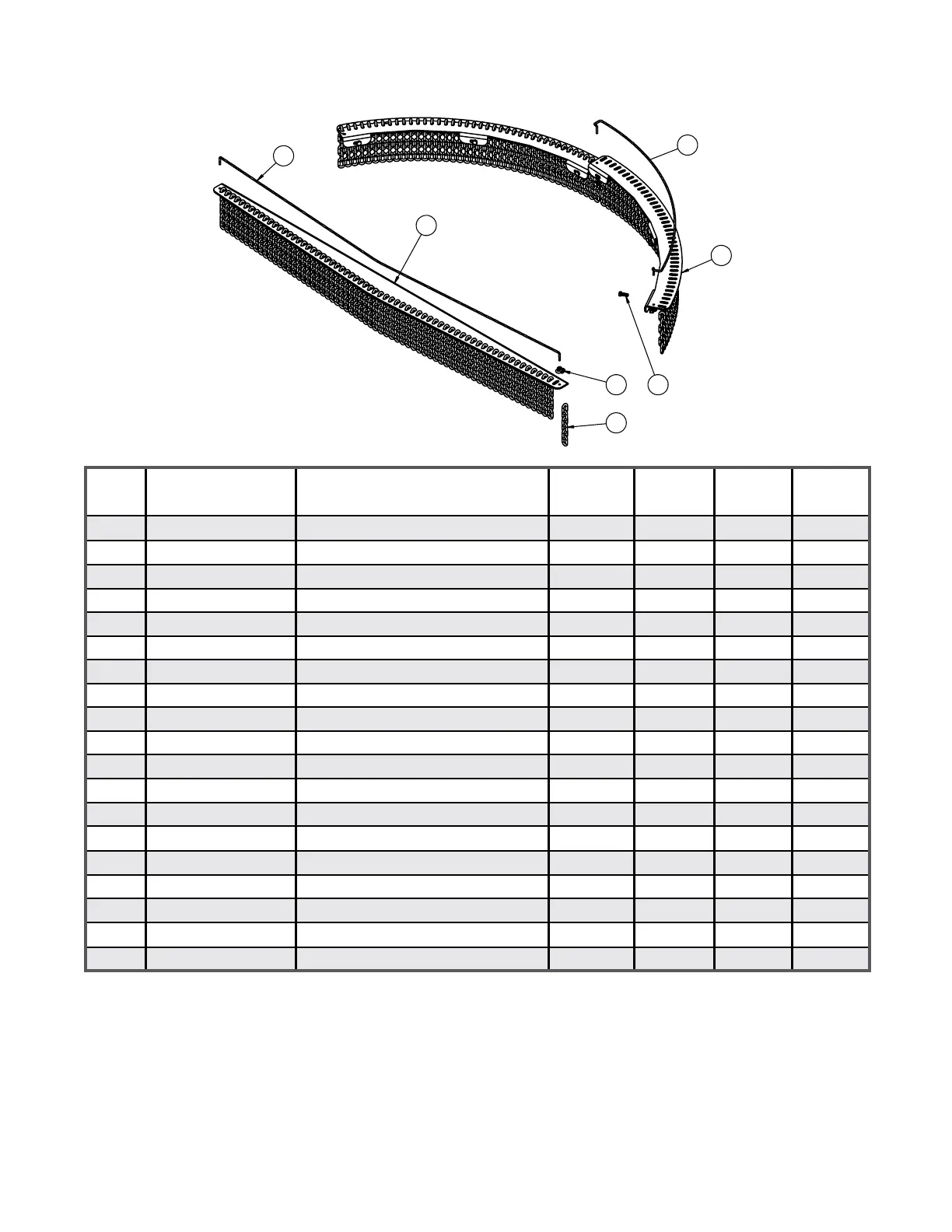

Chain Guard Parts
THIRD ANGLE PROJECTION
2
3
4
56
7
1
5
4
3
1
Folder
S:\SOLIDWORKS\SOLIDWORKS_ELO\CUTTER\PULSAR\CHAIN GUARD\66 CHAIN GUARD\52948.SLDASM
DWG. NO.
REV
Model
SCALE 1:32
SHEET 2 OF2
DATE DRAWN
MATERIAL
52948
December-04-15 3:53:01 PM
DESCRIPTION
Pulsar 66 Chain Gruard
S:\Solidworks\Solidworks_Elo\Cutter\Pulsar\Chain Guard\66 Chain Guard\
Weight(lbs.)
0
Width Height Length
0 0 80.89 0
Blank Size Unit of Measure
ITEM ID.
52948
Config ID
Exploded Chain
DIMENSIONS ARE IN INCHES
TOLERANCES NON SPECIFIED:
FRACTIONAL 1/64
BEND 1.0
TWO PLACE DECIMAL 0.01"
THREE PLACE DECIMAL 0.002"
Notes
DO NOT SCALE DRAWING
