MK Martin PULSAR PLUS - Pulsar Plus 96 HD Parts

12

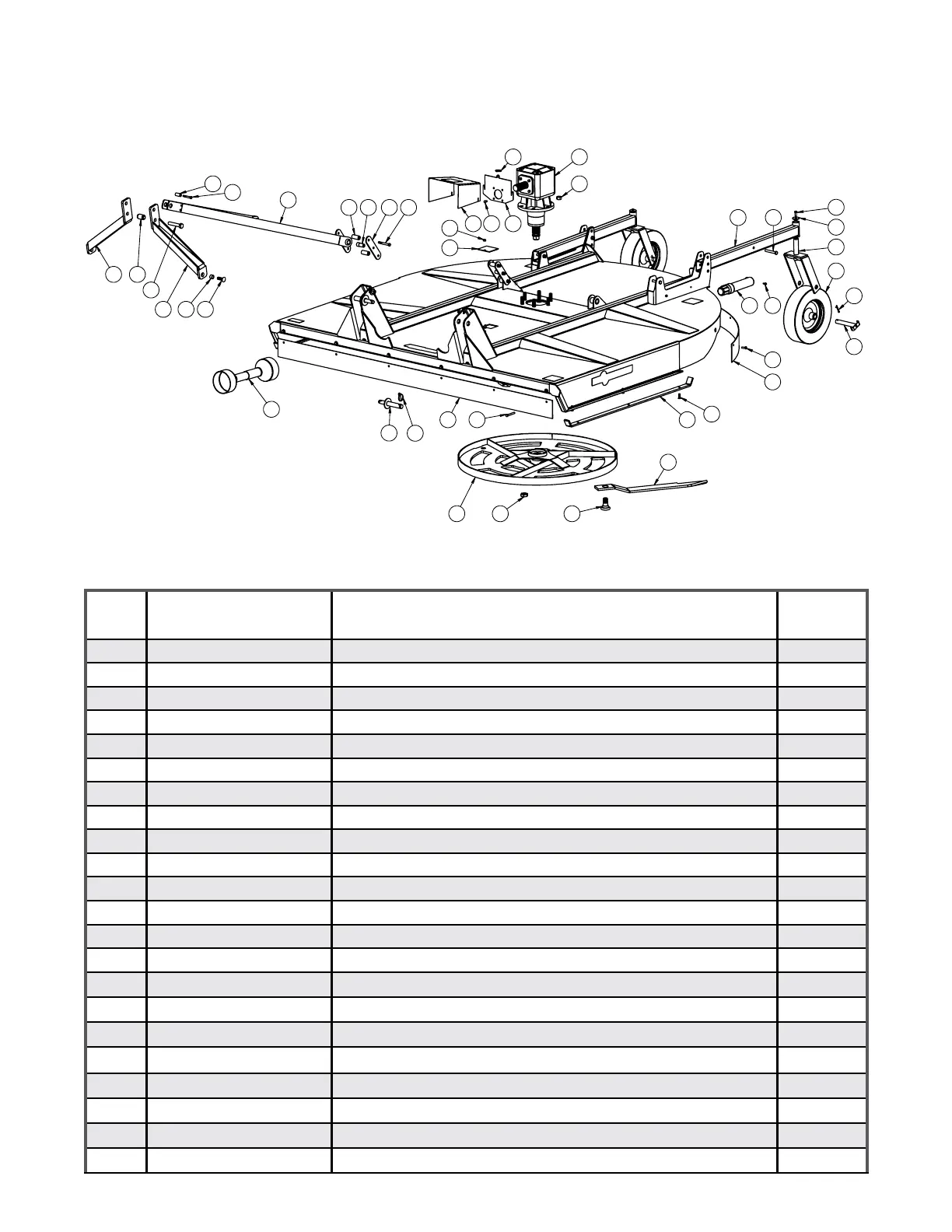

Pulsar Plus Rotary Cutter 96 Parts
THIRD ANGLE PROJECTION
1
234
5
6
44 43
7
8910
1213
11
14
15
16
17 18 19 20
21
22
23 24 25
26 27
28
29 30
31
32
33
34
35
36
3738
41
42
39
40
5
4
3
1
Folder
S:\Solidworks\Solidworks_Elo\Cutter\Pulsar\Pulsar Plus 96\53096.SLDASM
DWG. NO.
REV
Model
SCALE 1:48
SHEET 2 OF2
DATE DRAWN
MATERIAL
53096
March-23-16 11:49:59 AM
DESCRIPTION
96 Pulsar Plus Cutter
S:\Solidworks\Solidworks_Elo\Cutter\Pulsar\Pulsar Plus 96\
Weight(lbs.)
0
Width Height Length
0 0 1475.83 0
Blank Size Unit of Measure
ITEM ID.
53096
Config ID
53096
DIMENSIONS ARE IN INCHES
TOLERANCES NON SPECIFIED:
FRACTIONAL 1/64
BEND 1.0
TWO PLACE DECIMAL 0.01"
THREE PLACE DECIMAL 0.002"
Notes
DO NOT SCALE DRAWING
Item# Part# Description
Qty
96HD
1 53059 Blade ( 3 Blade Kit - 53221 ) 3
2 53060 Blade Bolt c/w lw,n 3
3 Nut See Page pg.16
4 53130 Blade Bar 1
5 OL 7/16 Lynch Pin 2
6 53080 Hitch Pin 2
7 PTO 1
8 OL Carriage Bolt 5/8 x 2 c/w fw,ln 2
9 53517 Pivot Bushing 2
10 53515 Left Aframe 1
11 OL Bolt 3/4 x 4 c/w ln 1
12 50702 Spacer Bushing 1
13 53516 Right Aframe 1
14 53125 Link Spacer 2
15 OL Bolt 3/8 x 2 1/2 c/w lw,n 2
16 53442 Link Bar 2
17 53124 Link Control Spacer 4
18 53123 Link swivel Spacer 2
19 53122 Link Control 4
20 OL Bolt 7/16 x 3 1/2 c/w lw,n 6
21 30080 Cover 1
22 OL Nut 3/8 c/w lw 1
