INTERFACE GUIDE
The below D1500 Interface Guide is an example of the level of detail we can provide.
For help and guidance for other models and connector formats, please visit the
resources library on our website, or contact us.

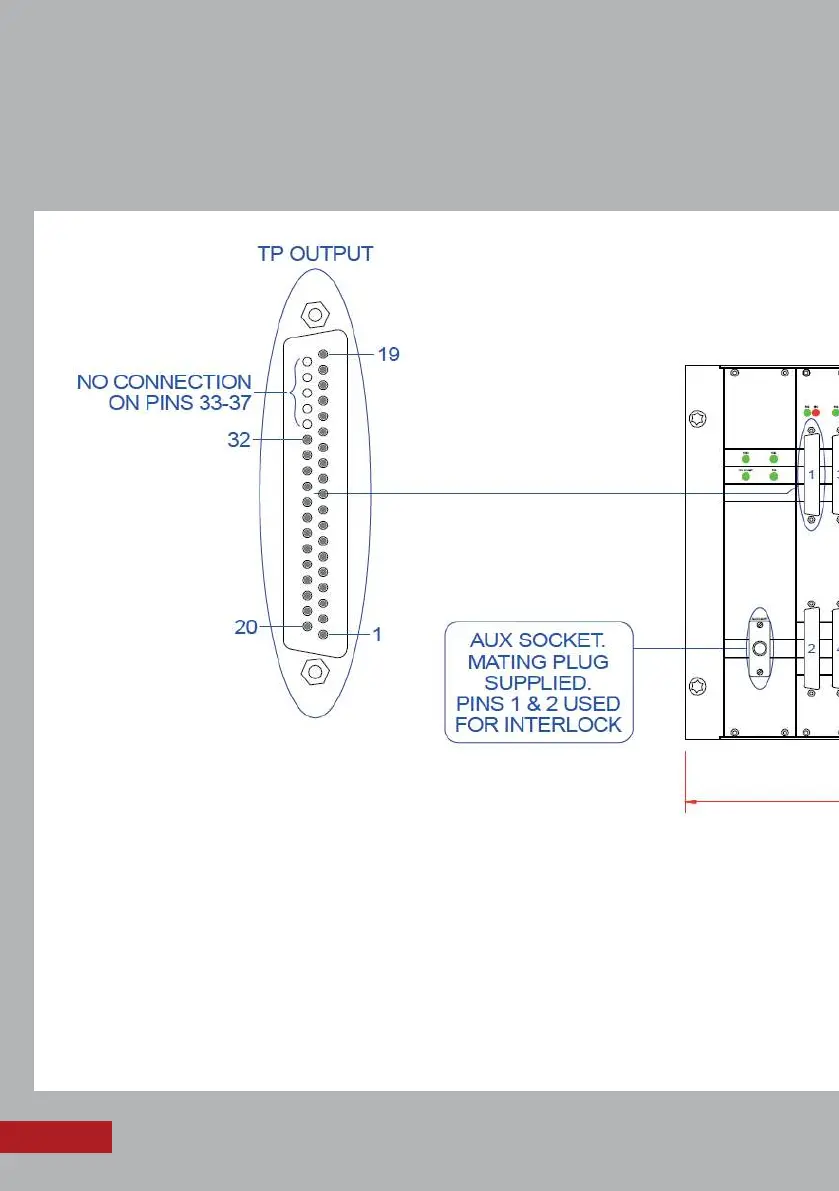

Test System Connector:
37-way ‘D’ socket
Recommended Interface Connector:
37-way ‘D’ plug
Housing - Tyco 205210-8
Crimp - Tyco 66507-4 or 1-66507-0
Recommended Interface Cable:
36-core 7/0.2mm unscreened cable
conforming to DEF-STAN 61-12 (part 4)
2-Wire Mode Test Point (TP) Allocation:
Connector 1 = TP 1-32
Connector 2 = TP 33-64
Connector 3 = TP 65-96
Connector 4 = TP 97 - 128
|
Connector 31= TP 961-992
Connector 32 = TP 993-1024
