MK MK-2000 - Electric Motor Safety: Extension Cords and Lockout; Extension Cord Length Guide; Lock Out Method for Safety

12
WARNING
Use of undersized extension cords result in low voltage to the motor that can result in motor burnout
and premature failure. MK Diamond warns that equipment returned to us showing signs of being run
in a low voltage condition, through the use of undersized extension cords,will be repaired or replaced
totally at the customer’s expense. There will be no warranty claim.
To choose the proper extension cord,
• Locate the length of extension cord needed in the table below.
• Once the proper length is found, move down the column to obtain the correct
AWG size required for that length of extension cord.
ON
(
(
)
)

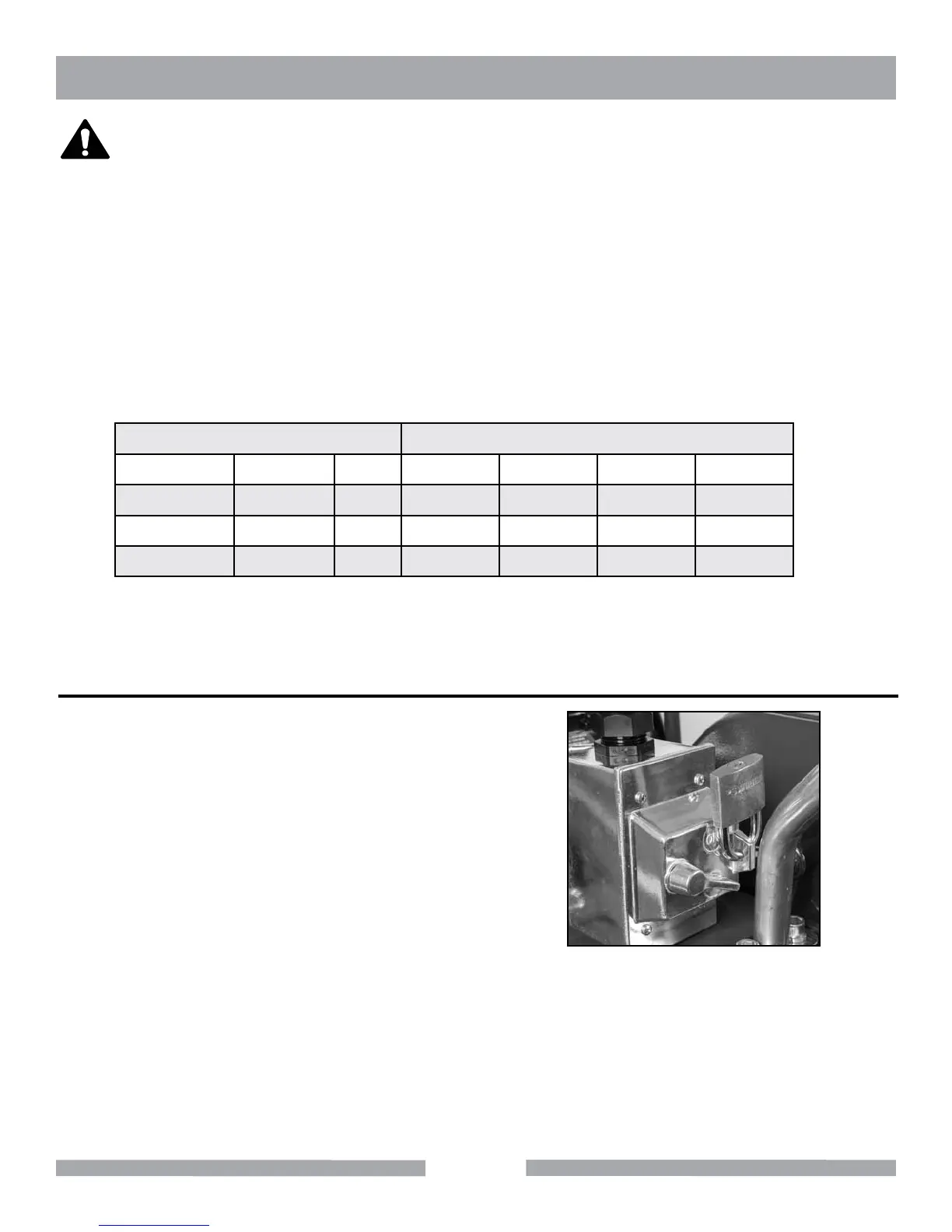

In order to help prevent accidental starting and to help
make your work area “kidproof,” this machine is pro-
vided with a means to deactivate the functioning of the
motor switch. The switch is equipped with a lockout
tab that can be used with a lock to prevent movement
of the switch. With the switch unable to move the
motor cannot be turned on. Removing the lock reacti-
vates the switch.
LOCK OUT METHOD
MK-2000 ELECTRIC SAW SAFETY
MOTOR SPECS EXTENSION CORD LENGTH
Motor Voltage Amps 25' 50' 100' 200’
161099 120V 1 Ph 14.4 12 ga 10 ga 8 ga •
231095-RW 120V 1 Ph 16.8 12 ga 10 ga 6 ga •
231095-RW 230V 1 Ph 8.4 14 ga 14 ga 12 ga 10 ga
