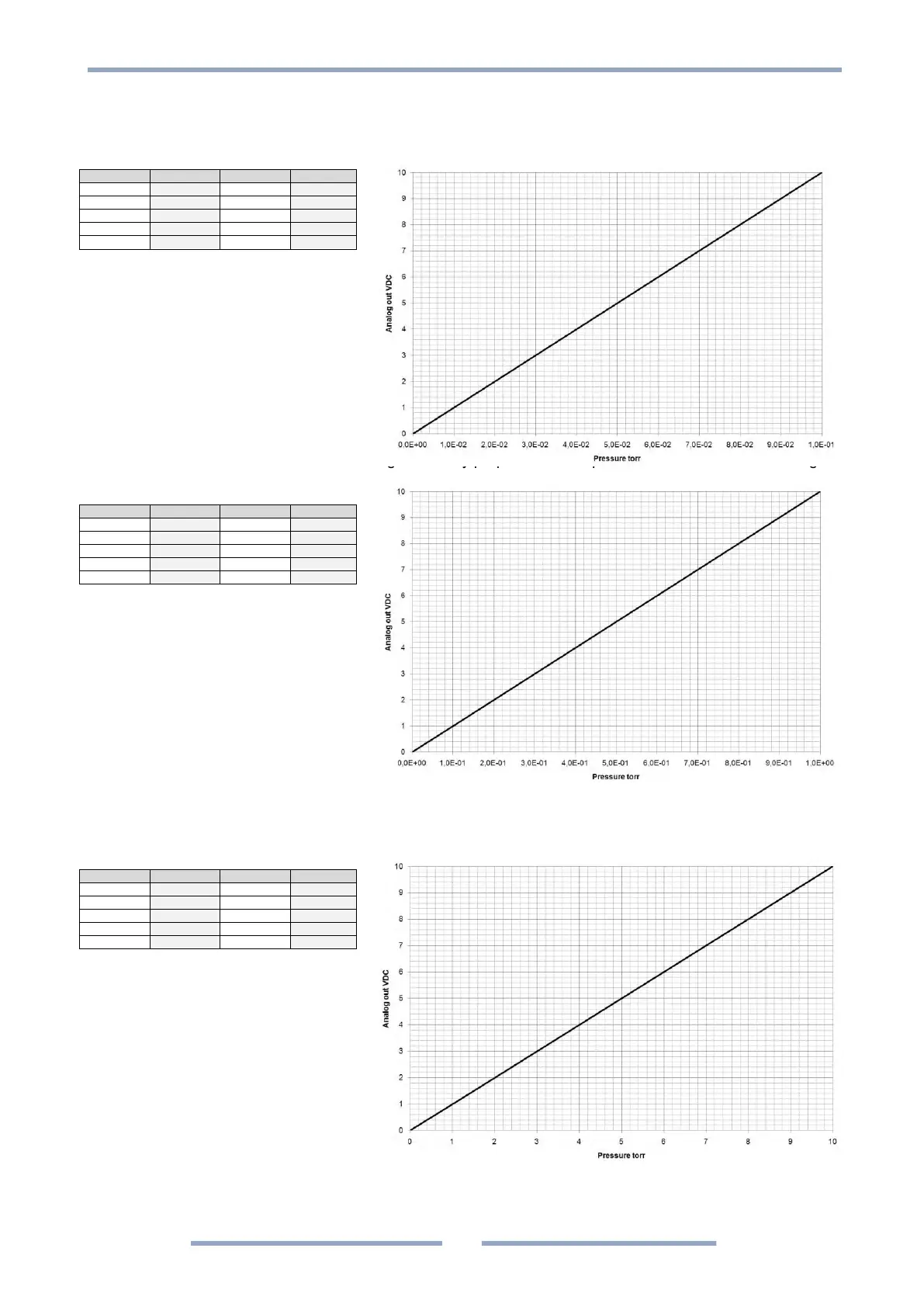

Analog output calibration = 10 (MKS Baratron 0.1 Torr)
The 0.1 Torr Baratron emulation provides a signal directly proportional with pressure with a full scale reading
of 10 VDC at 0.1 Torr.
Torr
mbar
Pascal
V
out
1.00E-3
1.33E-3
1.33E-1
0.100
5.00E-3
6.66E-3
6.66E-1
0.500
1.00E-2
1.33E-2
1.33E0
1.000
5.00E-2
6.66E-2
6.66E0
5.000
1.00E-1
1.33E-1
1.33E+1
10.000
Analog output calibration = 11 (MKS Baratron 1 Torr)
The 1 Torr Baratron emulation provides a signal directly proportional with pressure with a full scale reading of
10 VDC at 1 Torr.
Torr
mbar
Pascal
V
out
1.00E-2
1.33E-2
1.33E0
0.100
5.00E-2
6.66E-2
6.66E0
0.500
1.00E-1
1.33E-1
1.33E+1
1.000
5.00E-1
6.66E-1
6.66E+1
5.000
1.00E0
1.33E0
1.33E+2
10.000
Analog output calibration = 12 (MKS Baratron 10 Torr)
The 10 Torr Baratron emulation provides a signal directly proportional with pressure with a full scale reading
of 10 VDC at 10 Torr.
Torr
mbar
Pascal
V
out
1.00E-1
1.33E-1
1.33E+1
0.100
5.00E-1
6.66E-1
6.66E+1
0.500
1.00E0
1.33E0
1.33E+2
1.000
5.00E0
6.66E0
6.66E+2
5.000
1.00E+1
1.33E+1
1.33E+3
10.000
