902B Abs Piezo Operation manual
34

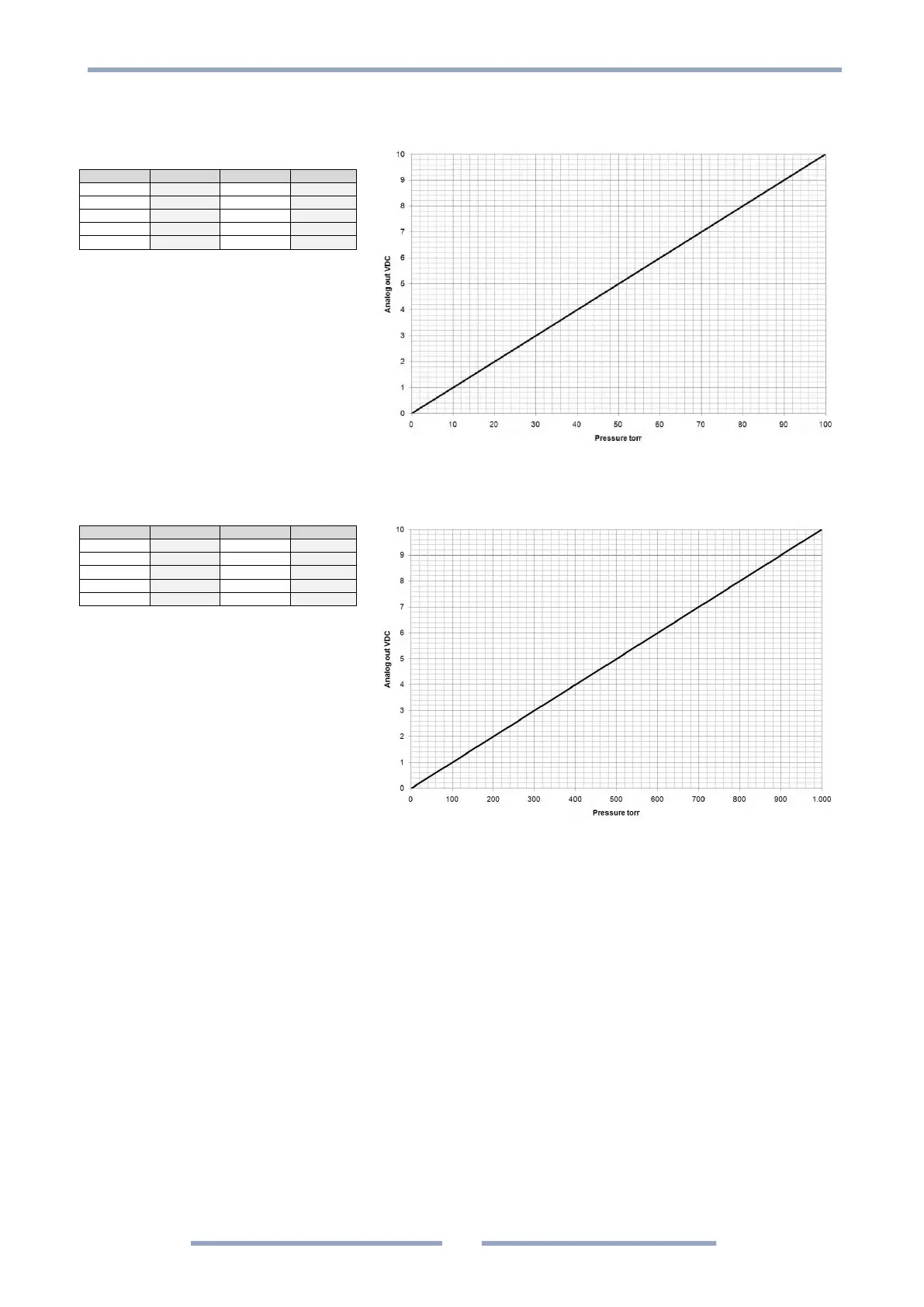

Analog output calibration = 13 (MKS Baratron 100 Torr)
The 100 Torr Baratron emulation provides a signal directly proportional with pressure with a full scale reading
of 10 VDC at 100 Torr.
Torr
mbar
Pascal
V
out
1.0
1.33
1.333E+2
0.100
5.0
6.66
6.66E+2
0.500
10.0
13.3
1.333E+3
1.000
50.0
66.66
6.66E+3
5.000
100.0
133.3
1.333E+4
10.000
Analog output calibration = 14 (MKS Baratron 1000 Torr, 902B Linear10)
The 1000 Torr Baratron emulation provides a signal directly proportional with pressure with a full scale
reading of 10 VDC at 1000 Torr.
Torr
mbar
Pascal
V
out
10.0
13.3
1.333E+3
0.100
50.0
66.66
6.66E+3
0.500
100.0
133.3
1.333E+4
1.000
500.0
666.6
6.666E+4
5.000
1,000
1333.2
1.3332E+5
10.000
