MKS TFT24 - 6.8 Filament Detecting

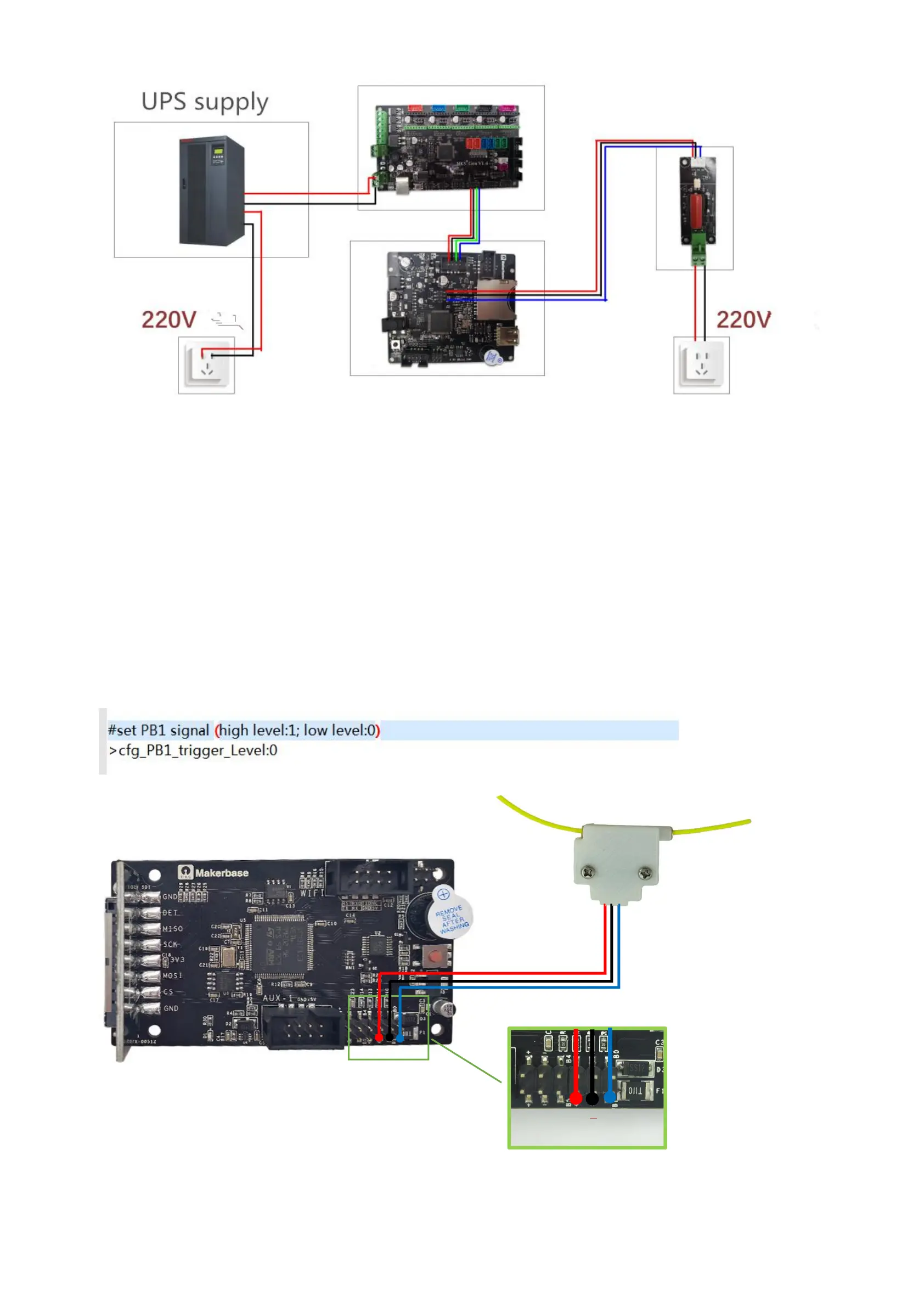

6.8 Filament detecting
The end of the break detection switch is connected to the PB1, the other end is connected to the PB1 under
the ” - ” pin, can be in the configuration file to select a high level of effective or low level effective, the
following figure
B
+
-
