10. Lens Encoding
10.1 Mechanical Lens Encoders

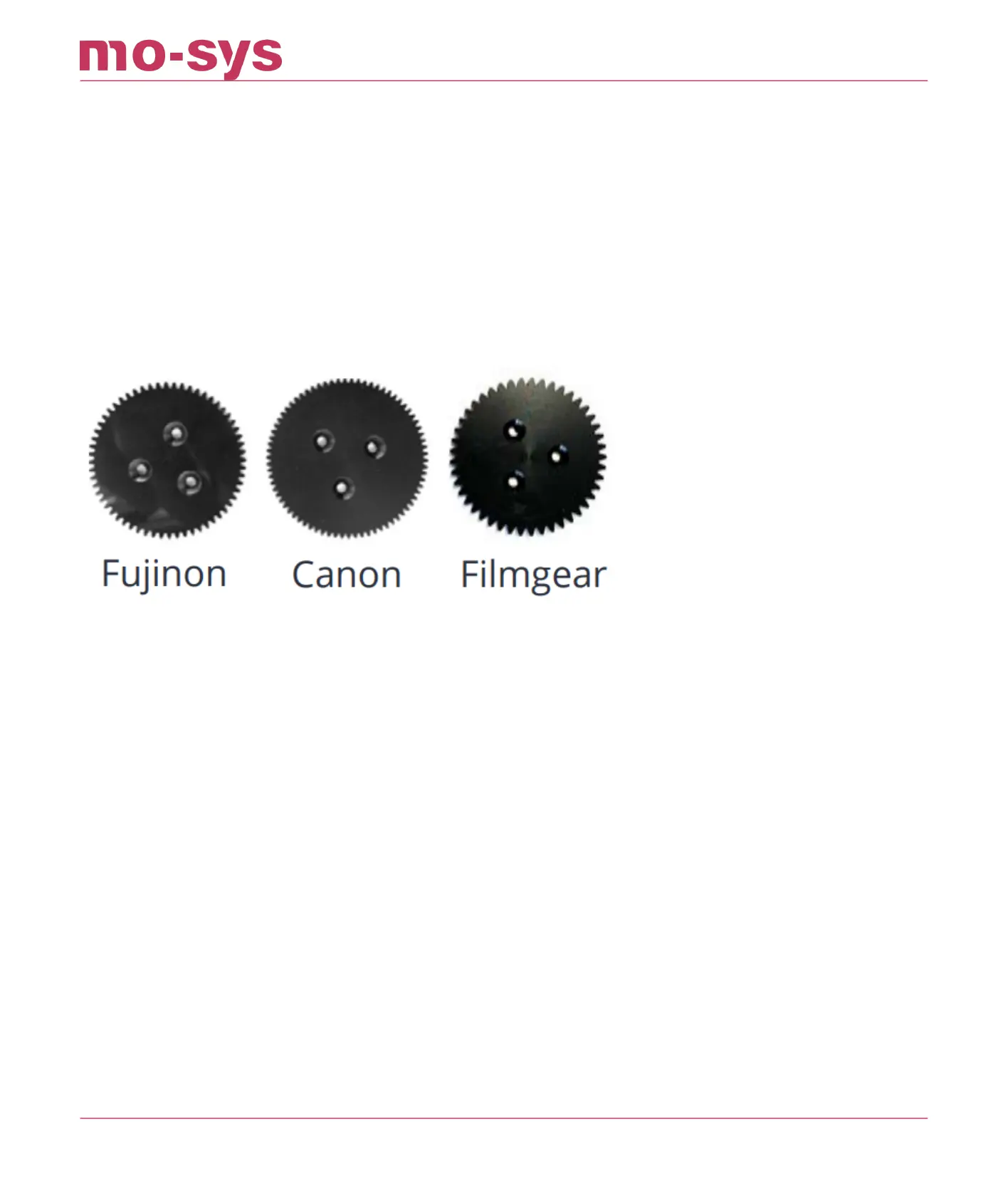

Mo-Sys o󰍒ers external lens encoders for Fujinon and Canon ENG type lenses and a variety of
󰍓lm lenses. There are three di󰍒erent types of gearwheels provided with these types of encoders.
They are interchangeable using a Phillips screwdriver. The coarsest gearwheel 󰍓ts 󰍓lm lenses.
The medium coarse 󰍓ts the Fujinon ENG type lenses. And the 󰍓ner gearwheel 󰍓ts the Canon
ENG type lenses.
There are 2 kinds of lens encoders: two-split and three-split gives you in addition to Zoom and
Focus, also an Iris Encoder.
StarTracker Max Manual
2023 - 2024 © Mo-Sys Engineering Ltd. All rights reserved 37 of 70
