M15 Camera Manual: Installation
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • sales@mobotix.com

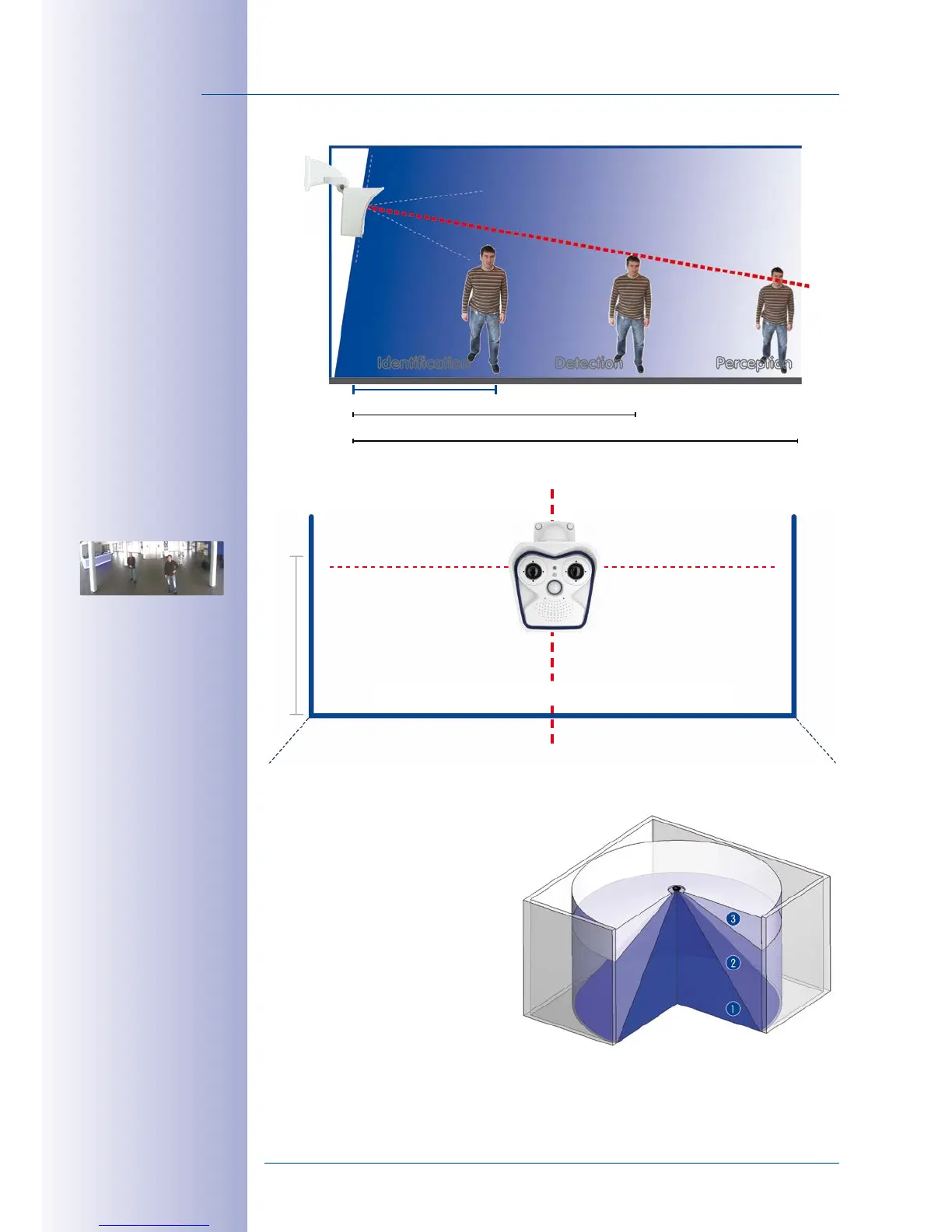

Allround View
A single M15 sensor module can moni-
tor an entire room right into each of
the four corners (360° Panorama View)
thanks to its hemispheric lens. The
camera should ideally be positioned
on the ceiling in the center of the room.
Rooms with a square floor area of up
to approx. 40m² generally allow the
recognition of detail even at the bor
-
ders of the full image. Rooms with up to
100m² of floor area can be monitored
using one single camera if you only
want to monitor specific objects or to
know if persons enter a room.
1,50m
3m
2,50m – 3,50m
5m
Identification Detection Perception
Camera focus (best image quality)
MOBOTIX recom-
mendation
MOBOTIX original
180° Panorama image
(L10-L12 sensor module)
2,50m – 3,50m
Installation in the middle of the wall
The image quality (precision) diminishes as the
distance of an object to the camera focus point
increases: 1 very good, 2 good, 3 satisfactory
Capture of entire room
