Jack Entertainment Unit
Assembly Instructions
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
6
9
10

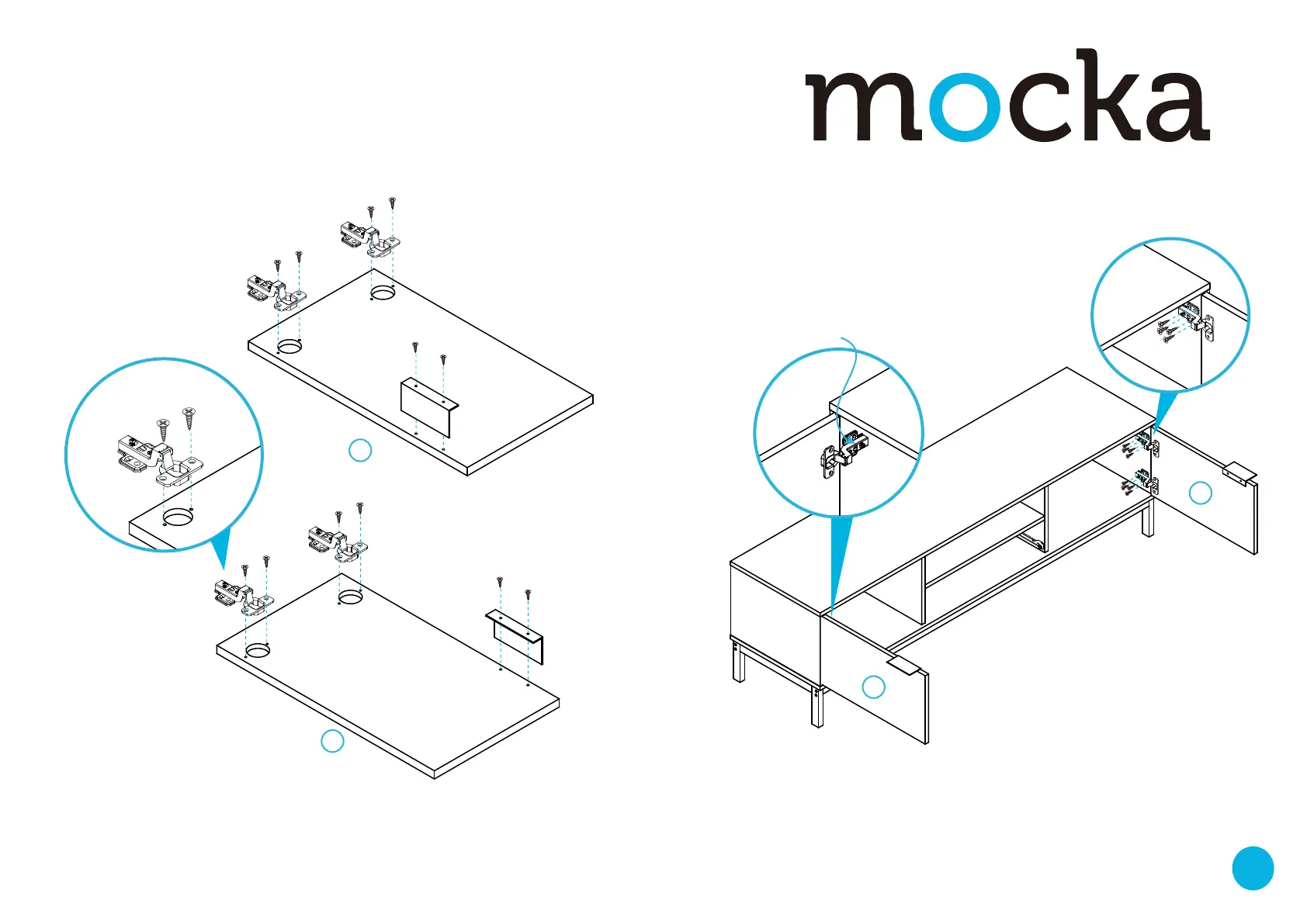

Attach 4x hinges (Q) to door panels [12] and [13], securing with 8x
screws (R). Attach 2x handles (M) to door panels [12] and [13] and
secure with 4x screws (H). Tighten with a screwdriver.
Secure door panels [12] and [13] to the main unit by attaching the other end
of the hinges (Q) with 16x screws (R) as shown. Tighten with a screwdriver.
Q
R
R
Q
R
R
Q
R
R
Q
R
R
E
E
E
E
M
M
12
13
R
R
R
12
13
Q
R
R
NOTE: If the doors are uneven or
there is a gap in the middle, loosen
or tighten the screw on the door
hinge until they are sitting flush.
