Mocka Zara - Step 14: Attach Hinges and Seals; Mount Hinges and Seals on Doors; Step 15: Mount Doors and Adjust; Attach Doors and Ensure Flushness

Zara Two Door Cabinet
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
9
14
Assembly Instructions

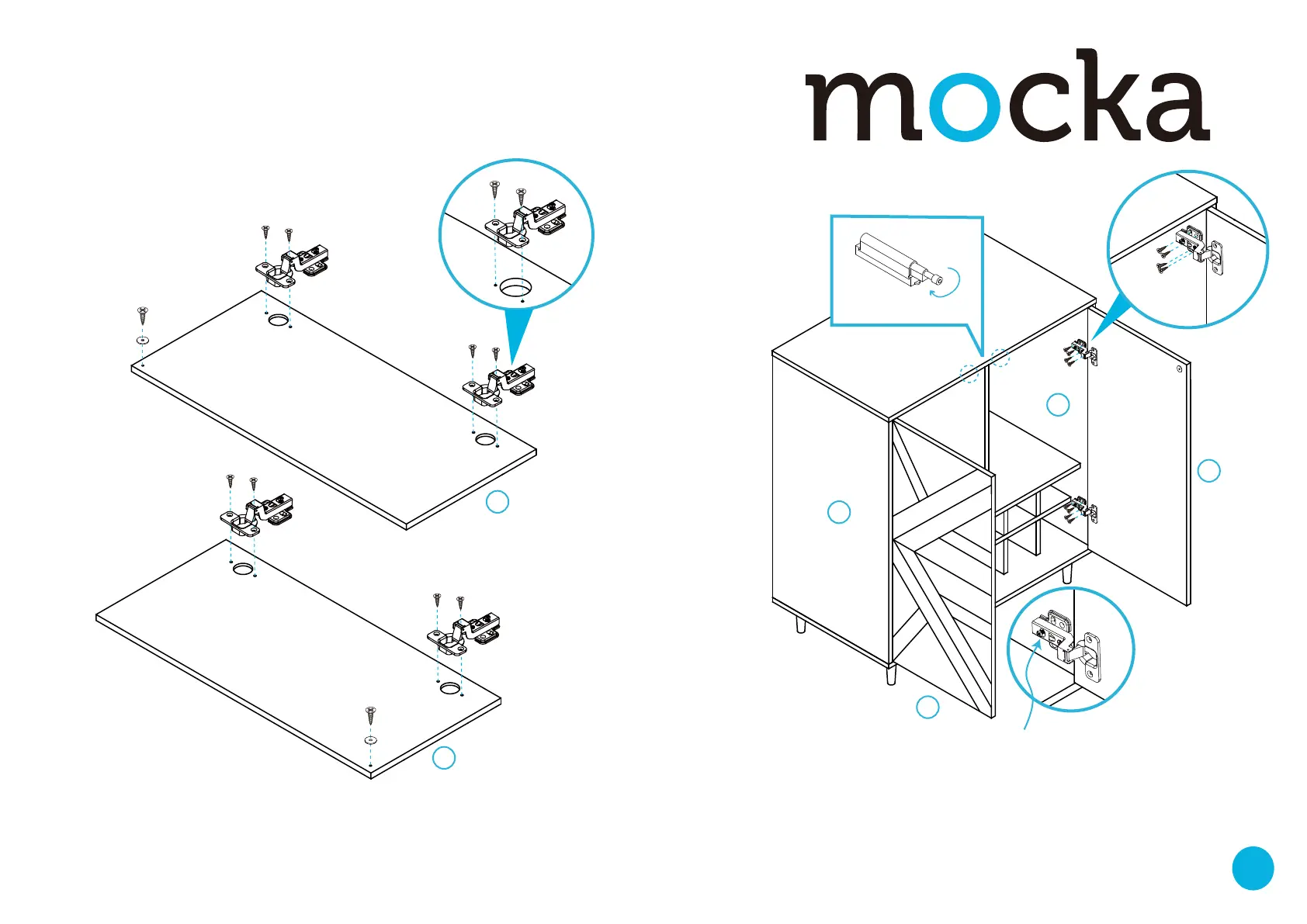

Attach 4x hinges (M) to panels [13] and [14] using 8x screws (N),
and attach 2x seals (R) to panels [13] and [14] and secure with
2x screws (E). Tighten with a screwdriver.
Attach hinges (M) on panels [13] and [14] to the unit using 16x screws (N).
Tighten with a screwdriver. Ensure the doors open and close easily. If the
cover (Q) is not catching on the seal (R), adjust the magnetic end by
twisting it outwards.
NOTE: If the doors are uneven or there is a gap
in the middle, loosen or tighten the screw on the
door hinge until they are sitting flush.
