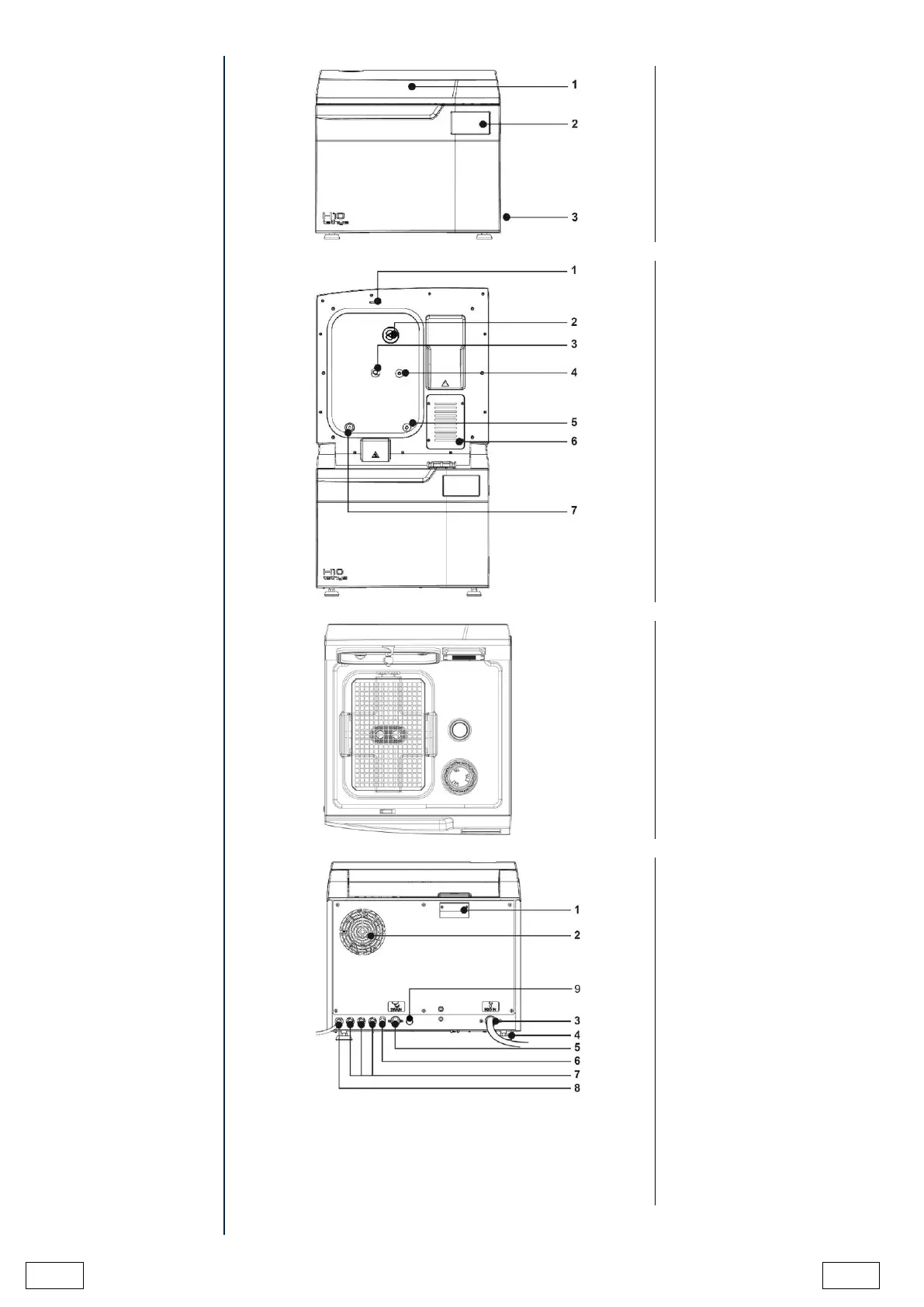

1. Door
2. Control panel and LCD
screen
3. Power switch
1. Door locking system
2. Air inlet
3. Rotary nozzle
4. Detergent inlet
5. Decalcified water inlet
6. HEPA filter
7. Temperature probe input
(process validation)
1. Stainless steel chamber
2. Stainless steel basket
3. Detergent reservoir
4. Salt reservoir
5. Chamber drainage filter
1. Air / vapour outlet
2. Cooling fan
3. Hose for connection to the
mains water with
"Aquastop" system
4. Foot
5. Water drainage connection
6. Ethernet connection
7. Network fuses
8. Power cable
9. Connection to external
filling accessories
