modbar av Series - Programming Introduction; Digital Display

EN
34
Programming Introduction
Description:
• This espresso machine has a CPU and many congurable settings.
• Additionally, there are many feedback controls employed in this espresso machine to troubleshoot problems should they occur.
• The following is a brief introduction to the controls and display and how they interact with the operator.
The digital display is a backlit display capable of displaying 2 lines of 16 characters. The display enables the operator to interact with
the espresso machine to visibly change parameter values. The display also provides valuable information to the operator.
There are several warnings that the can be displayed to alert the operator of an unusual condition or a fault. Additionally, simple
messages are displayed alerting the operator that an action has been started or that a process needs to begin.

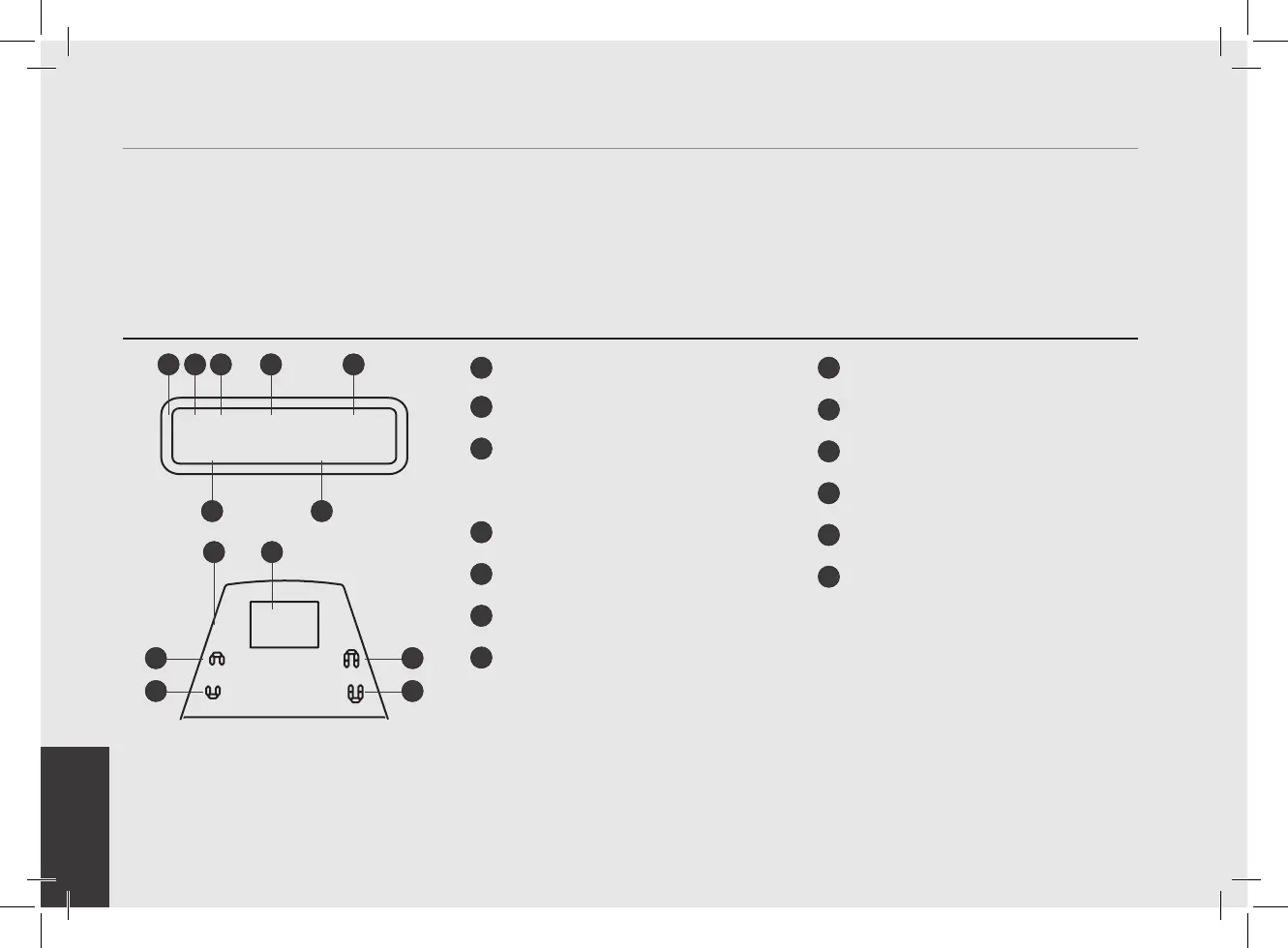

Digital Display
G1█ MODBAR G2█
95.7°C 95.4°C
4
76
31
1
Digital display
2
Group 1 head
3
Heating indicator (on during heating,
off when the temperature has been
reached)
4
Name
5
Group 2 head (if present)
6
Group 1 temperature
7
Group 2 temperature
8
Digital display Tap
9
Timer
10
Short up
11
Short down
12
Long up
13
Long down
23
8 9
10
11
12
13
2 5
