HOW IT WORKS

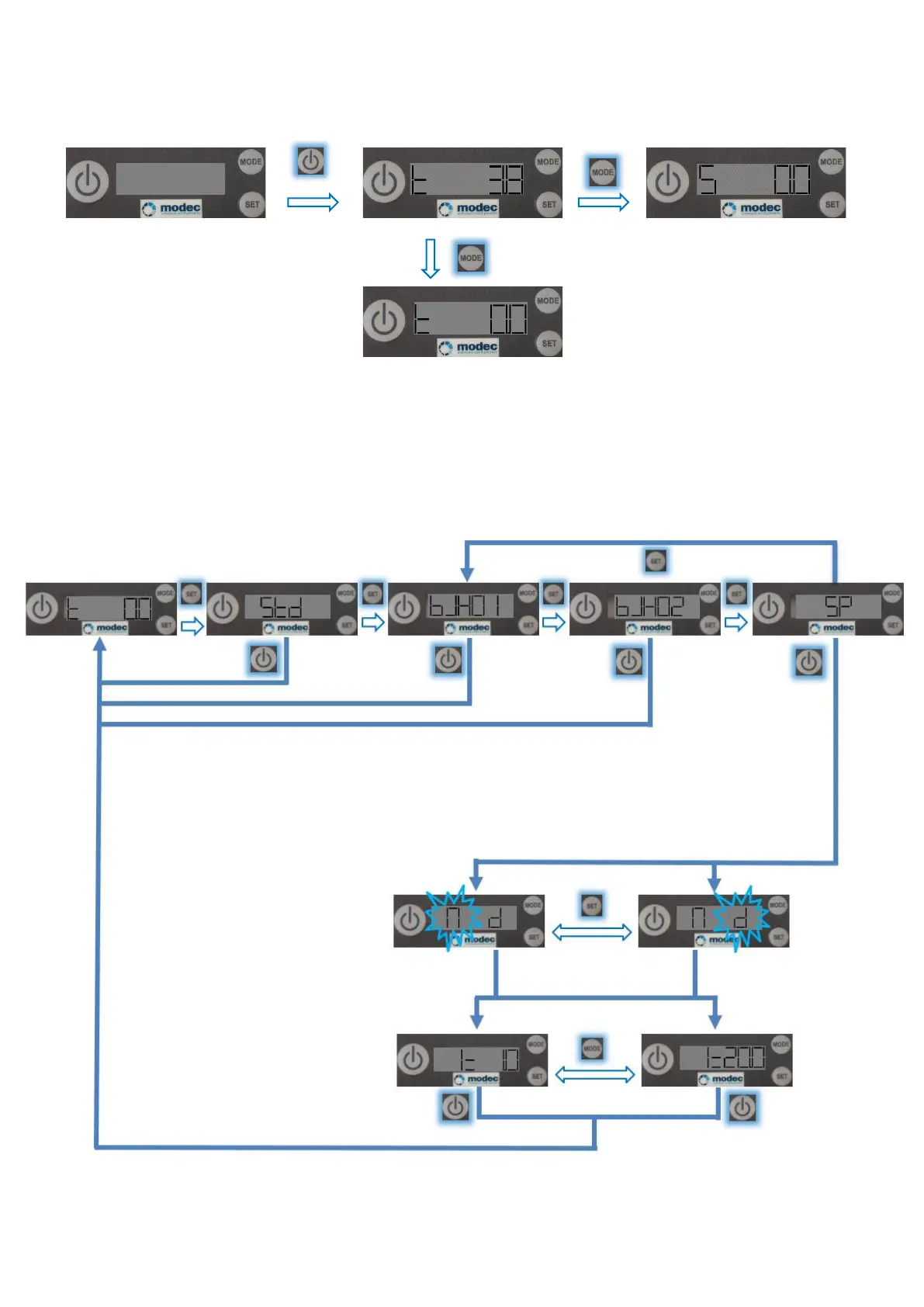

« Revolution count mode ‘’t’’ » « Speed mode ‘’s’’ »
3 s
« Reset to zero »
REVOLUTION COUNTER PARAMETERS
The revolution counter is set by default for a straight or right angle head (RA30) standard
output shaft (STD), without Banjo head.
When used with a BJH banjo head (see chapter 8), the number of turns and the
output speed of the actuator will be different, so you need to select “BJH01” for a
standard duty Banjo head (speed is divided by 4) or “BJH02” for a heavy duty. Banjo
head (speed is divided by 3).
If you want to set a specific
ratio for speed and count,
select “SP”, then indicate of
you want to multiply (“M”) or
divide (“d”) the speed and
number of turn, and set the
ratio “I=” from 1.0 to 20.0
