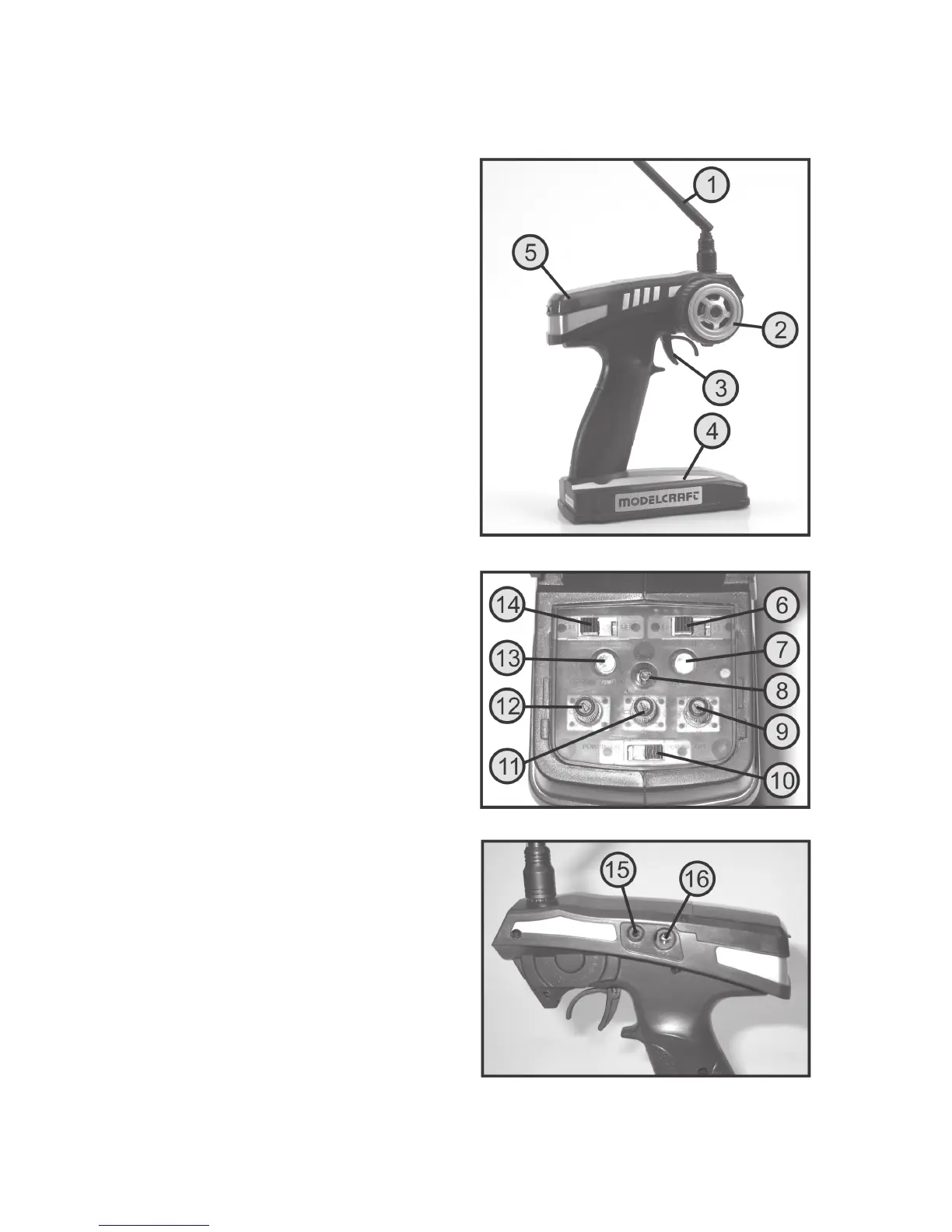

9. Transmitter Controls
Front:
1. Transmitter aerial
2. Steering wheel for the steering function
3. Operating lever for drive function
4. Transmitter base with integrated battery case
5. Operating panel cover
Operating panel (under the cover):
If you fold the operating panel cover upwards, you will gain
access to the other transmitter operating elements.
6. Reverse switch for the drive function
7. LED for under voltage display
8. Binding button
9. Dual-Rate control for steering
10. Function switch
11. Trimming control for the drive function
12. Trimming control for the steering function
13. LED for operating check
14. Reverse switch for the steering function
Rear:
15. PC link jack
16. Charging jack
Figure 1
Figure 3
Figure 2
