EEI-272 / EEI-273 / EEI-3417 / EEI-3418 OFFICE CHAIR
Customer Service 908-368-1025︱www.modway.com
Page 3 of 4

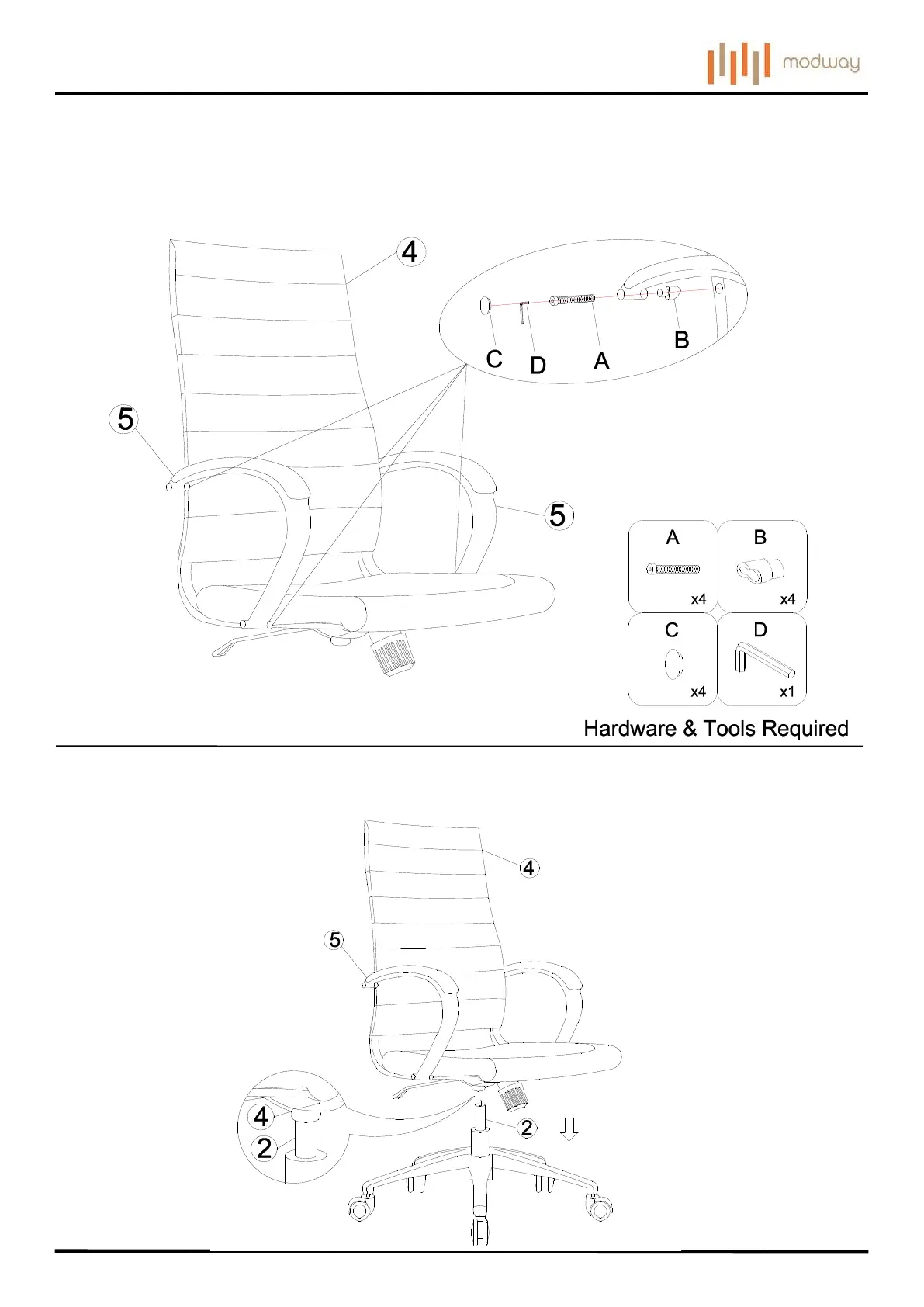

STEP 3:
1. Attach 1 piece of Arm (5) to the Back with Control Mechanism (4) by using 2 pieces of Bolts (A) with
2 pieces of Crash Pads (B) as shown, Tighten Bolts (A) by using Allen Wrench (D) and attach 2 pieces
of Cap Covers (C) to the holes on Arm (5) by hand as shown.
2. Repeat the same steps for another Arm (5).
STEP 4:
Insert Back with Control Mechanism (4) into the Cylinder Column (2) as shown
