-30-
Revision 2/F3506
5) Carefully remove two screws holding Grill/
Broil switch to thermostat.
HINT:
Tape Grill/Broil switch assembly
together before removal to prevent it from
springing apart.
7) Adjust the calibration nut located at the
base of the thermostat shaft.
To increase oven temperature, turn
calibration nut anticlockwise.
To decrease oven temperature, turn
calibration nut clockwise.
Adjustment of the calibration nut by 1°
angular will alter oven temperature by
approximately 2°C (3.6°F).
8) Reassemble Grill/Broil switch onto the
thermostat and fit assembly back onto
control panel.
9) Turn on power and recheck oven
thermostat calibration.
10) Repeat procedure if necessary.
Screws
Grill/Broil
Switch
Figure 6.4.4
Calibration Nut
Figure 6.4.3
Thermostat
Thermostat Shaft
Grill/Broil Switch
IMPORTANT: IF THE OVEN
TEMPERATURE NEEDS TO BE
INCREASED, ENSURE THAT THE
THERMOSTAT IS IN THE ‘OFF’ POSITION
BEFORE CARRYING OUT ADJUSTMENT.
IF OVEN TEMPERATURE NEEDS TO BE
DECREASED, ENSURE THERMOSTAT IS
IN THE ‘MAX’ TEMPERATURE POSITION
BEFORE CARRYING OUT ANY
ADJUSTMENT.
1) Turn off power.
2) Remove thermostat knob by pulling it
firmly away from control panel.
3) Open control panel (refer 6.2.1). Remove
two screws on control panel holding
thermostat.
4) The thermostat can now be removed.
Figure 6.4.2
Screws
Calibration Nut
Thermostat
Figure 6.4.1

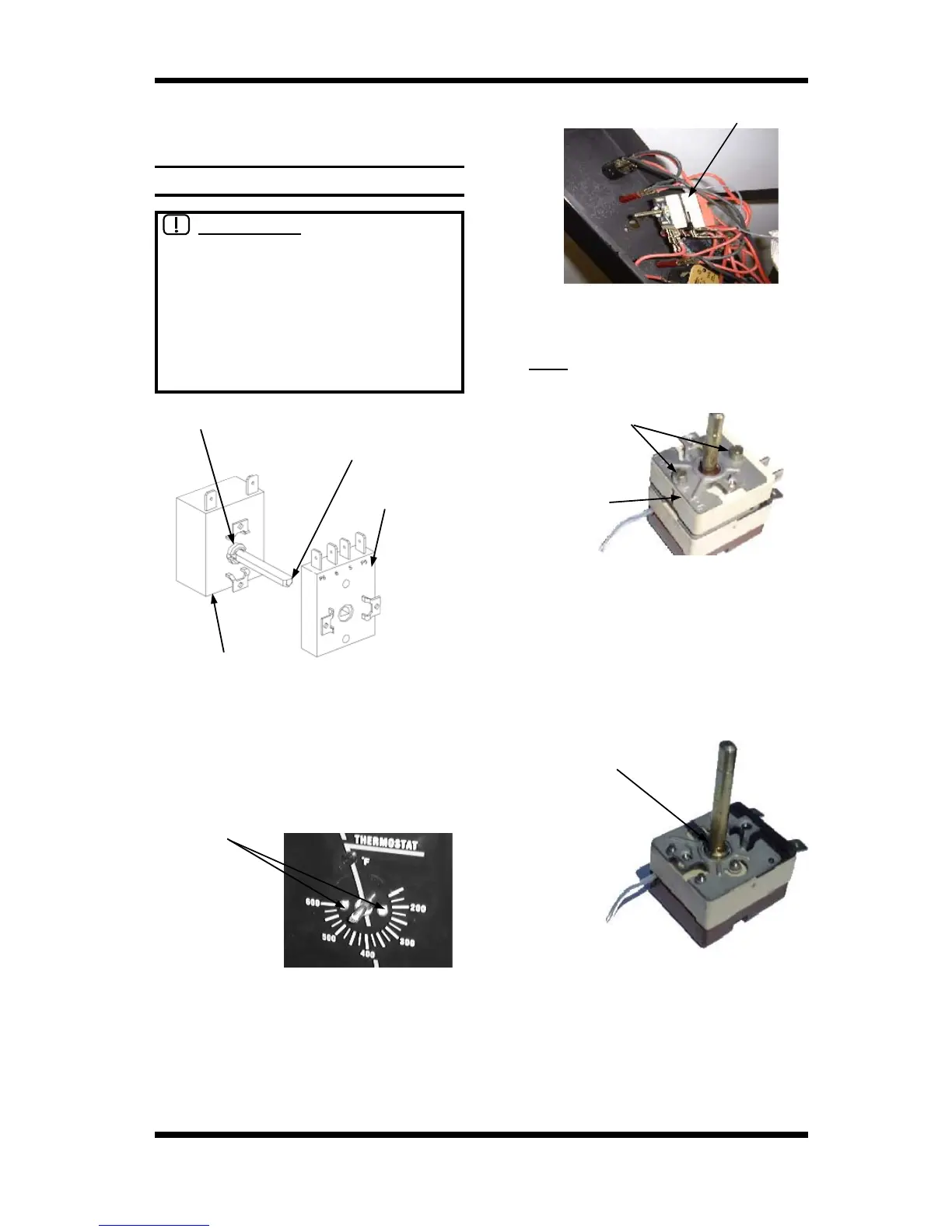

6.4.1 THERMOSTAT CALIBRATION
6.4 ADJUSTMENT / CALIBRATION
Figure 6.4.5
