Moffat Turbofan E27 - Access; Control Panel; Service Panel (Rear Panel); Baffle

Revision 3/F3563
© Moffat Ltd, August 2006 E27 Convection Oven
-19-
Four
Screws

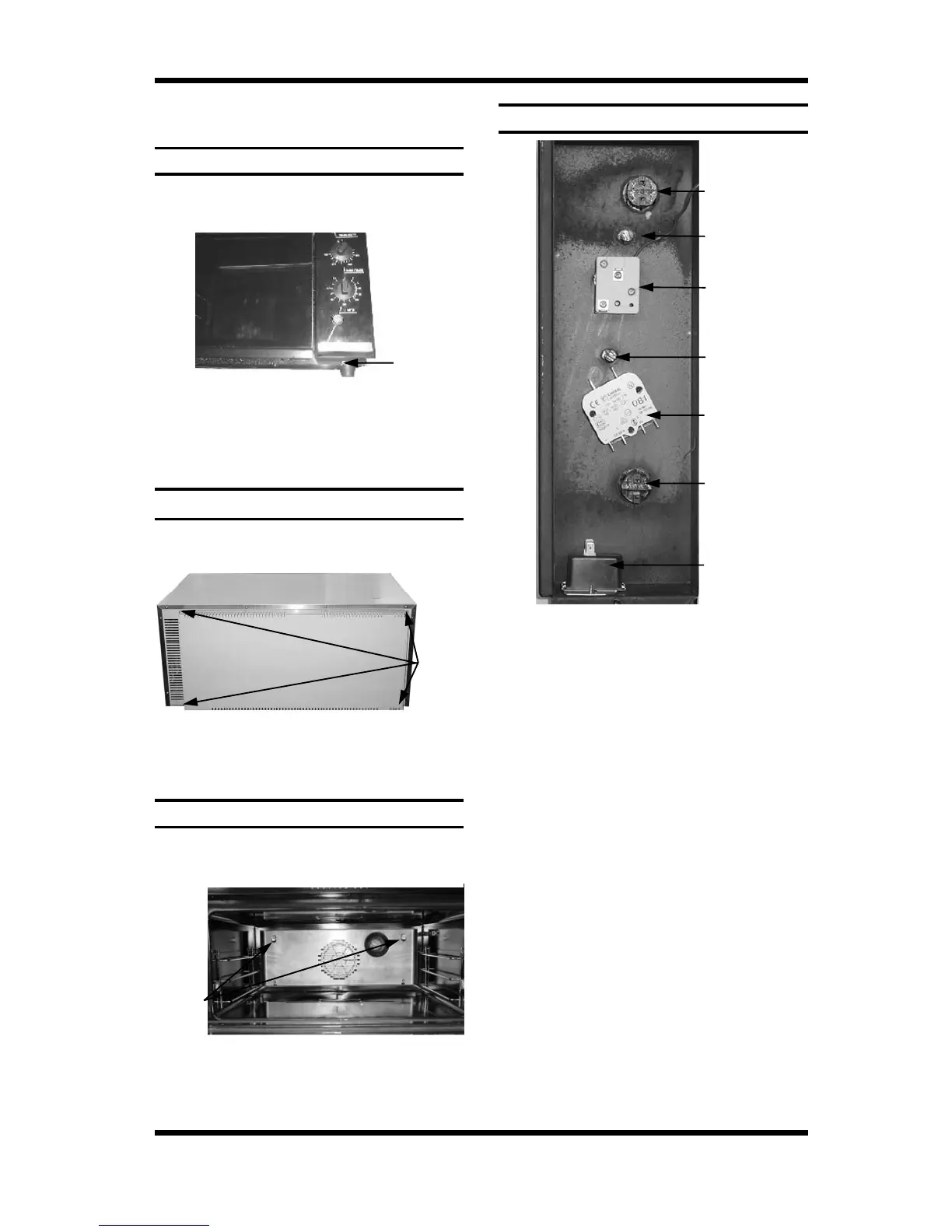

6.2 ACCESS
6.2.1 CONTROL PANEL
1) Undo one screw at bottom of control
panel.
1) Undo the four screws holding the panel.
6.2.2 SERVICE (REAR) PANEL
1) Remove all trays and racks.
2) Loosen two thumb screws (top).
6.2.3 BAFFLE
2) Pull out bottom of control panel and drop
down to disengage tabs at top of control
panel.
Figure 6.2.1
2) Remove panel.
Figure 6.2.2
3) Lift baffle to disengage from locating studs
and thumbscrews, and remove baffle.
Figure 6.2.3
6.2.4 E27 CONTROL PANEL—REAR
Figure 6.2.4
One Screw
Buzzer
Power Switch
Heating Indicator
Thermostat
Bake Time Up
Indicator
Light Switch
60 min Bake Timer
Thumb
screws
